Features

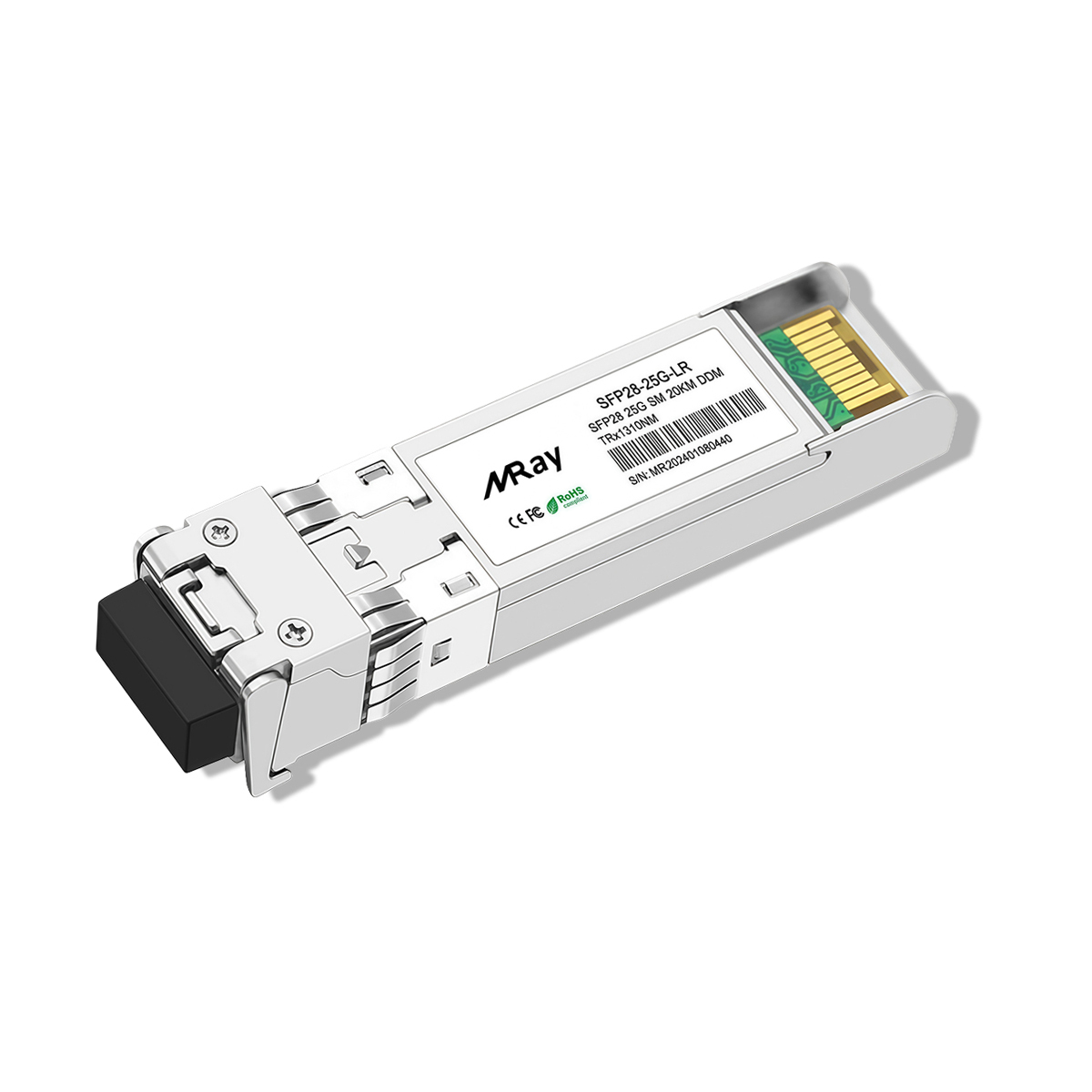

Miray 25G CPRI SFP28 LR optical transceiver modules are designed for use in Ethernet/eCPRI/CPRI links up to 25.78 Gb/s data rate and up to 10km link length.
This 25G SFP28 LR is Multi-Vendor MSA Compatible SFP28 25GBASE-LR Transceiver. It compliants with SFF-8472, SFF-8431, SFF-8432 and IEEE 802.3cc 25GBASE-LR. The transmitter converts serial CML electrical data into serial optical data. The receiver converts serial optical data into serial CML electrical data. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
25GBase-LR 10km
| Category | SFP28 Transceiver | Vendor Name | Miray |
| Model No. | SFP28-25G-LR | Form Factor | SFP28 |
| Data Rate | 25 Gbps | Wavelength | 1310 nm |
| Media Type | SMF | Max Distance | 10 km |
| Transmitter Type | DFB | Receiver Type | PIN |
| Transmitter Power | -5.0~ 3.5 dBm | Receiver Sensitivity | < -10.4 dBm |
| Extinction Ratio | > 3.5 dB | Receiver Overload | > 3.0 dBm |
| Connector | LC Duplex | Max Power Consumption | 1.0 W |
| DDM/DOM | Yes | Compliance | RoHS, CE, REACH SFP28 MSA, SFF-8431, SFF-8432, SFF-8472, CPRI |
| Environment | Operating Temperature: -40 to 85°C Storage Temperature: -40 to 85°C Operating Humidity: 5%~85%, noncondensing Storage Humidity: 5%~95%, noncondensing |
Application | 25G Ethernet CPRI 10 |
| Shipping Weight | 0.035 kg | Dimensions (L x W x H) | 56.7 x 13.9 x 8.5 mm |
