Features

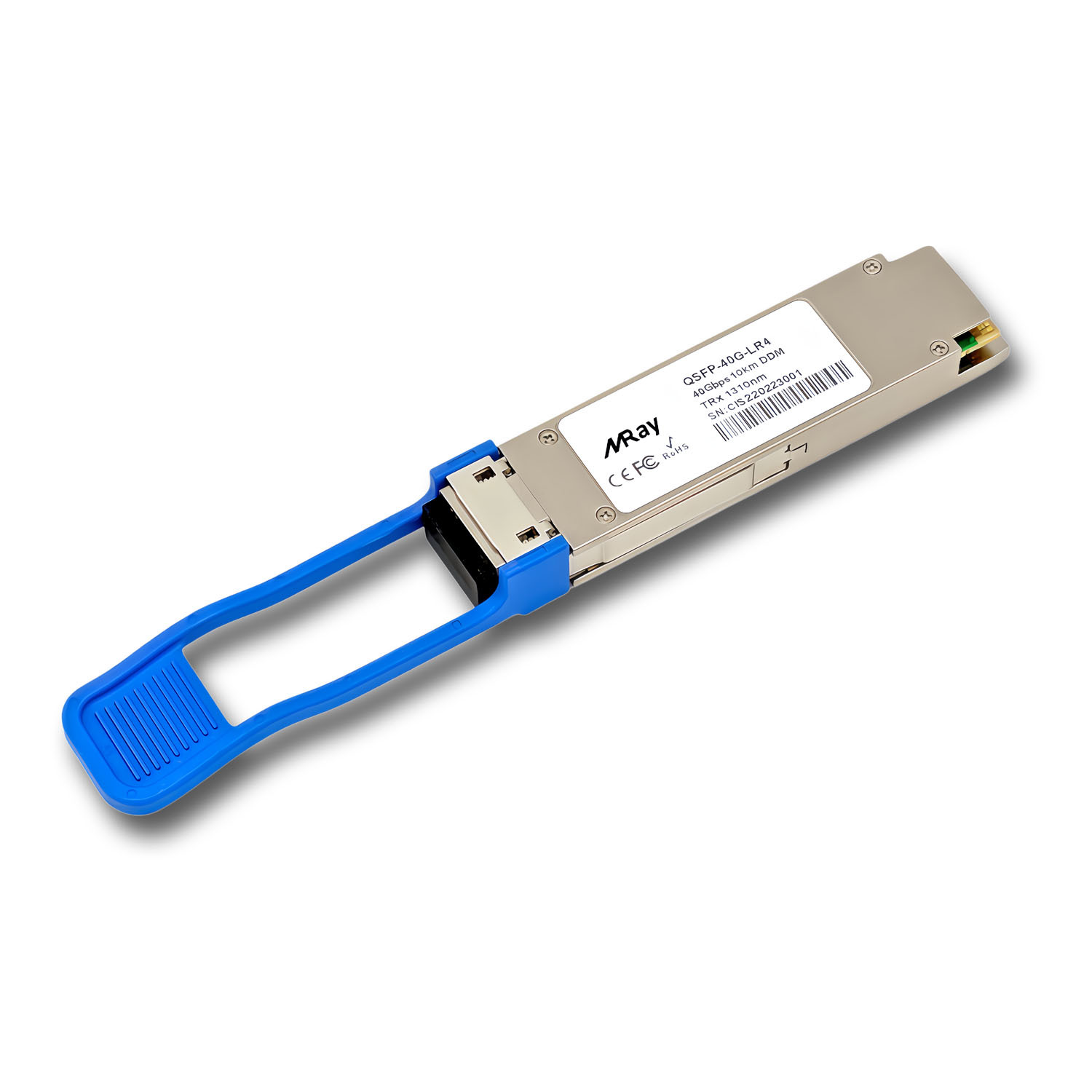

The Miray’s QSFP-40G-LR4 is a transceiver module designed for 10Km optical communication applications. The design is compliant to 40GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
| Compatible Brand | Cisco, Huawei, HP | Model NO. | QSFP-40G-ER4 |
| Form Factor | QSFP+ | Data Rate | 41.2 Gb/s |
| Wavelength | CWDM 1271,1291,1311,1331nm | Fiber Type | SMF |
| Max Distance | 40 km | Optical Components | DFB/APD |
| Transmitter Power | -3.7 ~ +4.5 dBm | Extinction ratio | > 5.5 dB |
| Receiver Sensitivity | < -18.0 dBm | Receiver Overload | > 3.3 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.09 kg |
| Application | 40G switch and router, data aggregation, backplane, proprietary protocol and high-density applications |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS,SFF-8436,IEEE802.3ba |
| Compatible Brand | Cisco, HP, Huawei | Optcore Part Number | QSFP-40G-LR4 |
| Form Factor | QSFP+ | Data Rate | 41.2 Gb/s |
| Wavelength | CWDM 1271,1291,1311,1331nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | DFB/PIN |
| Transmitter Power | -7 ~ +2 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -11.5 dBm | Receiver Overload | > 3.3 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.09 kg |
| Application | 40G Ethernet and OTU3 Proprietary Protocol and Density Applications Datacom/Telecom switch & router connections Data Aggregation and Backplane Applications High-performance computing networks Infiniband transmission at 4ch SDR, DDR and QDR |
Compliance | IEC/EN 61000-4-2, IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS,SFF-8436,IEEE802.3ba |
