Features
Up to 1.25 Gb/s bi–directionaI data Iinks
Hot–pIuggabIe SFP footprint
Low power dissipation(1.05W typicaI)
Compact RJ–45 connector assembIy
FuIIy metaI encIosure, for Iower EMI
RoHS compIiant and Iead–free
SingIe +3.3V power suppIy
10/100/1000 BASE–T operation in host systems with 1000BASE–X interface
1.25 Gigabit Ethernet over Cat 5 cabIe
Ambient Operating temperature: 0°C to +70°C

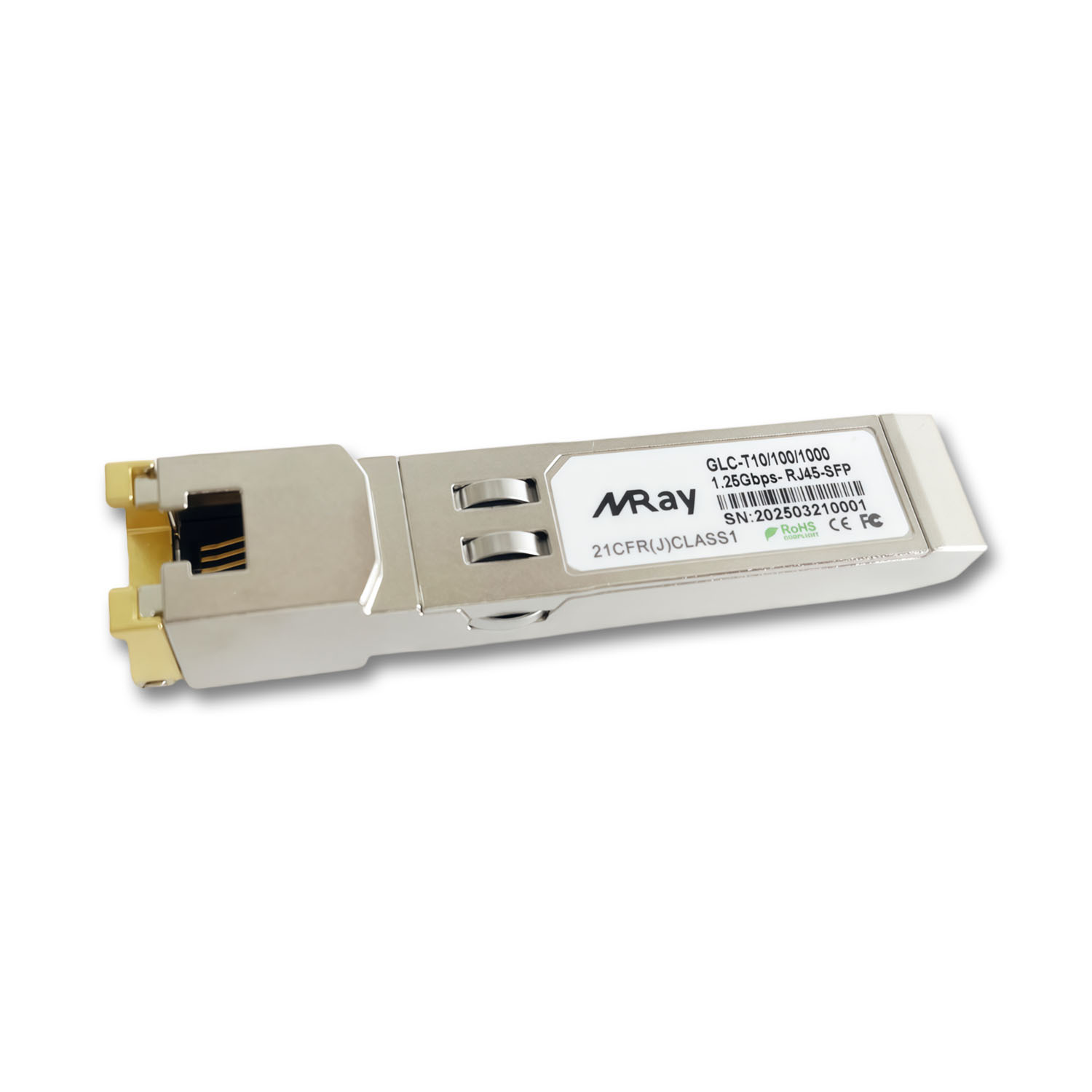

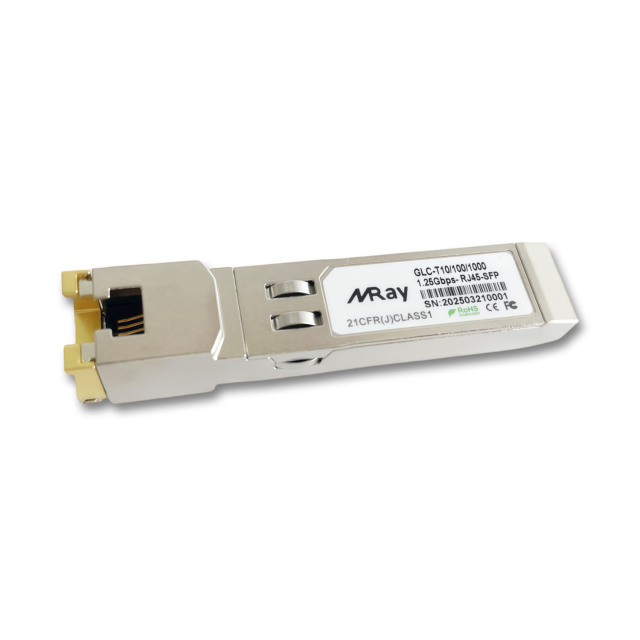

Miray’s GLC-T10/100 electrical Small Form Factor Pluggable (SFP) transceiver module is specifically designed for converting 100BASE-FX port interface to 10/100BASE-TX interface with RJ45 connector. The transceiver module is compliant with the SFP MultiSource Agreement (MSA) and IEEE802.3u. With hot pluggability, the module offers a flexible and easy way to be installed into SFP MSA compliant ports at any time without the interruption of the host equipments operating online. The Copper SFP transceivers use an integrated RJ-45 connector with transformer and PHY IC.
| Compatible Brand | HP, Cisco, Huawei... | Model No. | GLC-T |
| Form Factor | SFP | Data Rate | 1000Mb/s |
| Wavelength | N/A | Cable Type | Cat 5 cable |
| Max Distance | 100 m | Optical Components | N/A |
| Transmitter Power | N/A | Extinction ratio | N/A |
| Receiver Sensitivity | N/A | Receiver Overload | N/A |
| Connector | 1 – RJ-45 Female | Digital Diagnostic Monitoring | No |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.025 kg |

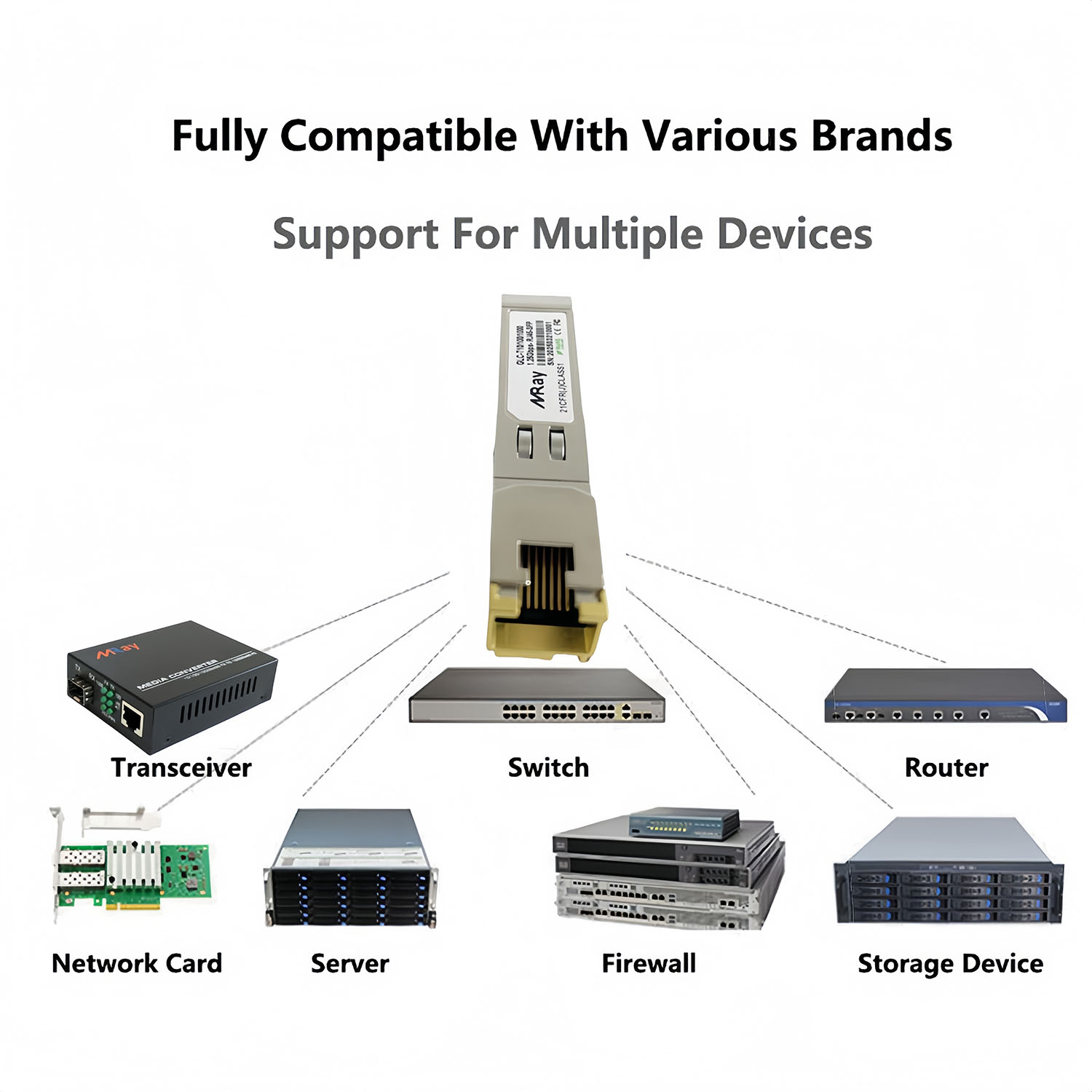

| Application | 1x Fiber Channel, Switch to Switch Interface
Gigabit Ethernet, Switched Backplane Applications Router/Server Interface,Media Converters |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
