Ports: Provide 16*10/100/1000Mbps PoE ports and 2*100/1000Mbps SFP Uplink,1Console port
PoE Standard: IEEE802.3af/at Power over Ethernet (PoE) Compliant
Total Power: Total power budget of 120W and 30W for all singe PoE ports
Self-adaption: RJ45 port supports 10/100/1000Mbps Auto MDI/MDIX
Managed: Support remote web managed,VLAN and storm control and IPV6 management etc.
Wide Application: Designed for Wifi AP and IP Security camera.VoIP etc
Surge protection: Protect the device from lighting surges and others electrical hazards
Considerate Design: Desktop installation with fanless design
Easy to use: Plug and play, No configuration required

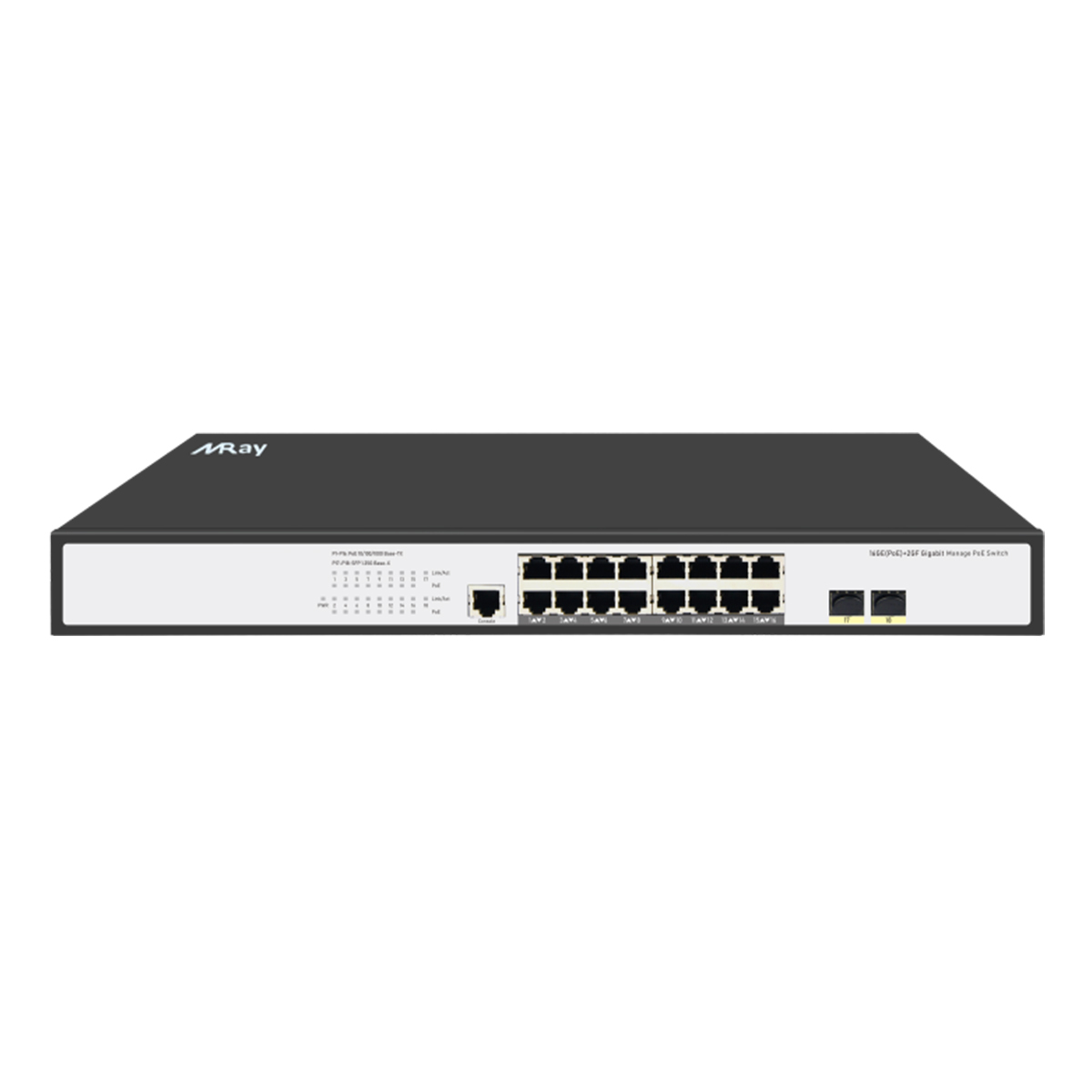

The MR-M216GP-2SFP PoE+ Gigabit Smart Switches with Remote Management provides a great value, with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones, IP cameras, video-over-IP endpoints and Wireless access points simply and securely. Advanced features such as IPv4/IPv6 Layer 3 static routing, LACP link aggregation, DiffServ QoS, Private VLANs, Multicast VLAN and Spanning Tree will satisfy even the most advanced small business networks.
With 2 SFP module slot available, the SFP uplink port is ideal for connecting the switch to the network’s backbone, providing more than enough bandwidth and stability for ultra high speed data transferring, Beside the SFP can transmitte the date with Max 100Km distance with more economic solution.

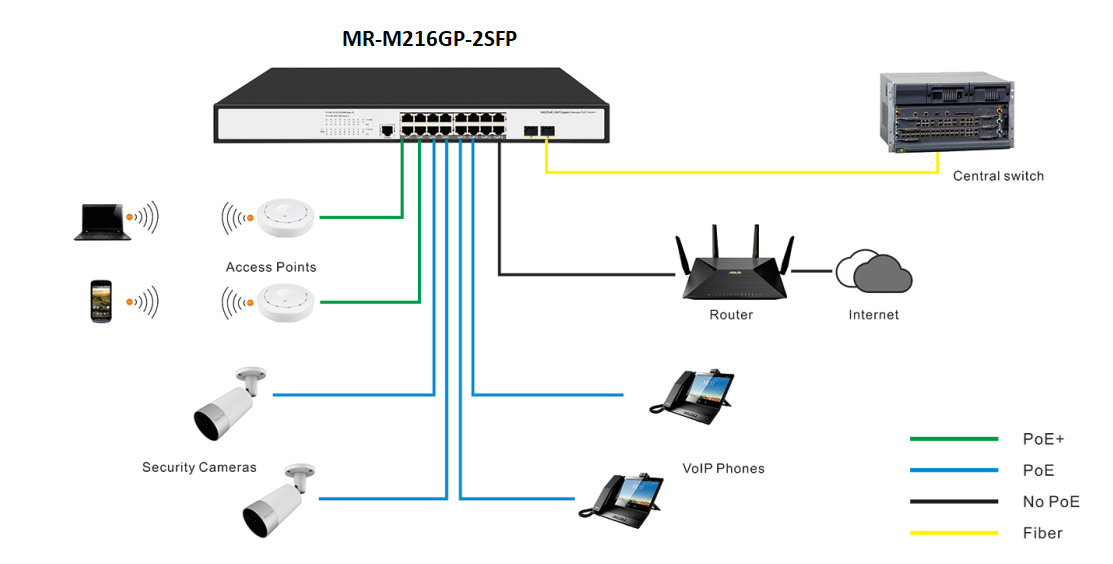

It has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
|
Technical Specifications |
MR-M216GP-2SFP |
|
10M/100M/1000M RJ-45 copper ports |
16 |
|
PoE / PoE+ ports |
16 (180W PoE budget) |
|
1.25G SFP (fiber) ports uplink |
2 |
|
Console Port (For config ) |
Yes |
|
Performance Specification |
|
|
CPU |
Dual-Core 512GHz MIPS InterAptive CPU subsystem |
|
Packet buffer memory (Dynamically shared across only used ports) |
8MB |
|
Forwarding modes |
Store-and-forward |
|
Bandwidth |
56Gbps |
|
Priority queues |
8 |
|
MAC address database size (48-bit MAC ad-dresses) |
8K |
|
Multicast groups |
128K |
|
Number of IPv4 static routes |
32 |
|
Number of IPv6 static routes |
32 |
|
Number of VLANs |
4094 |
|
Number of VLANs(Open QinQ) |
16,760,836(4094*4094) |
|
Number of ARP cache entries |
256 ARP |
|
Packet forwarding rate (64 byte packet size) (Mpps) |
26.79 |
|
Jumbo frame support (bytes) |
Up to 9K packet size |
|
Mean Time Between Failures (MTBF) @ 25°C |
135,216 hours |
|
100M Copper Latency (64-byte; 1518-byte; 9216-byte frames) |
8.329µs; 8.563µs; 8.431µs |
|
1G Copper Latency (64-byte; 1518-byte; 9216-byte frames) |
3.616µs; 3.531µs; 3.625µs |
|
1G Fiber Latency (64-byte; 1518-byte; 9216-byte frames) |
2.972µs; 3.95µs; 3.166µs |
