Ports: Provide 1*Gigabit PoE++ ports, 1*Gigabit RJ45 Uplink
PoE Standard: IEEE802.3af/at/bt Power over Ethernet (PoE) Compliant Up to 90W
Power Voltage: Ultra wide pressure input DC 10V~54V
Self-adaption: RJ45 port supports 10/100/1000Mbps Auto MDI/MDIX.

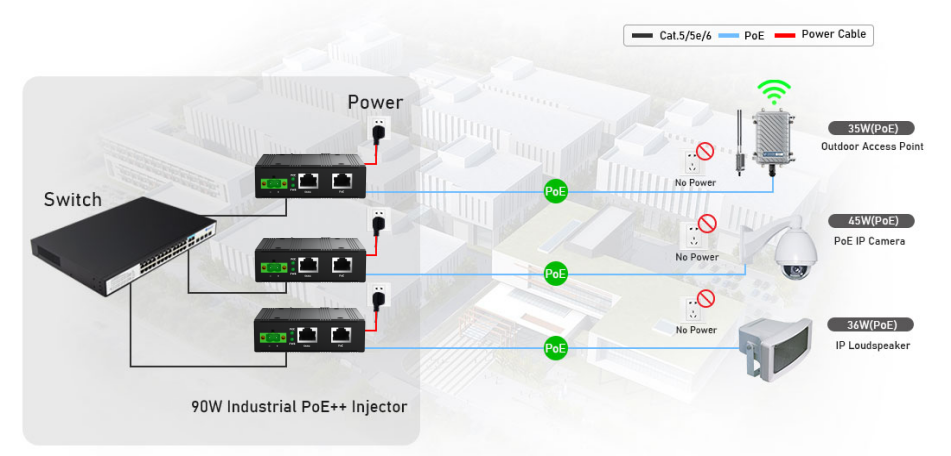

Wide Application: Designed for Long-Range Wifi AP and PTZ IP Security camera, VoIP etc
Surge protection: Protect the device from lighting surges and others electrical hazards
Working Temperature: -40 to 75 degrees operating temperature
Considerate Design: IP40 Industrial design with dual power input
This PoE++ injector features integrated voltage boosting. It accepts ANY 9-54V DC input - harnessing solar panels (12V), vehicle batteries (12V), building power (24V), or industrial systems (36/48/54V) to power it. And output 802.3bt 90W PoE.
Delivers up to 90W PoE++ (802.3bt) per port—powering high-demand devices like PTZ cameras, Wi-Fi 6/6E access points, and outdoor LED displays with a single cable. Reduces wiring complexity and enables long-distance power delivery over Ethernet.
|
Model |
MR-IP90G |
|
Hardware Specifications |
|
|
Connector |
2* 10/100/1000BASE-T RJ45 auto MDI/MDIX ports |
|
PoE Port |
1* PoE++ PSE port (Up to 90W) |
|

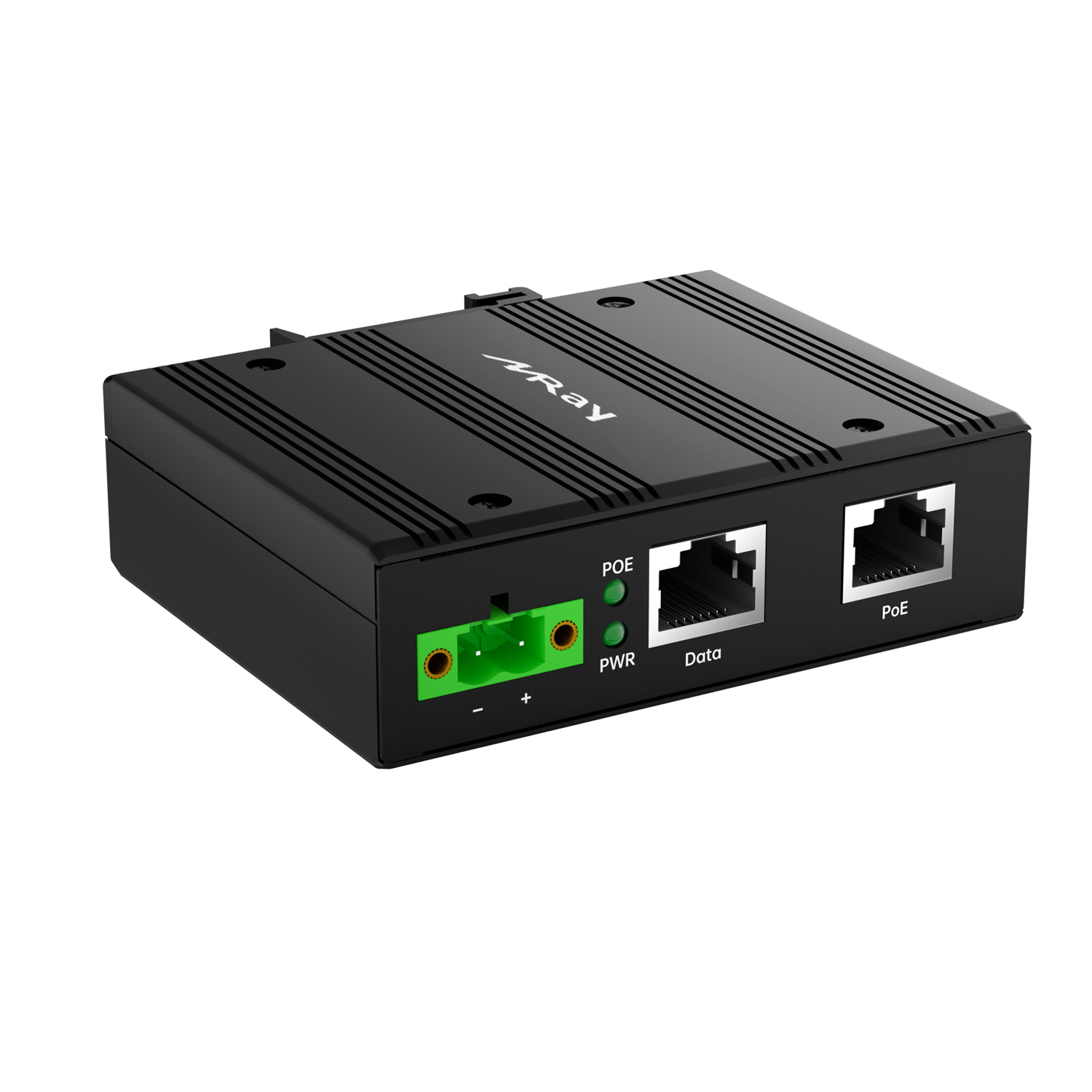

LED indicators |
Power Indicator: PWR(Green). PoE/ Network Working Indicator: PoE(green) |
|
Power Connector |
Removable 4-pin terminal block Pin +/- for Power 1 |
|
Power Requirements |
10~54V DC, 6A (max.) |
|
Power Consumption/ Dissipation |
Max. 2 watts (system on) Max. 90 watts (Full loading) |
|
ESD Protection |
Contact Discharge 6KV DC, Air Discharge 8KV DC |
|
Enclosure |
IP40 aluminum case |
|
Thermal Fan |
Fanless Design |
|
Installation |

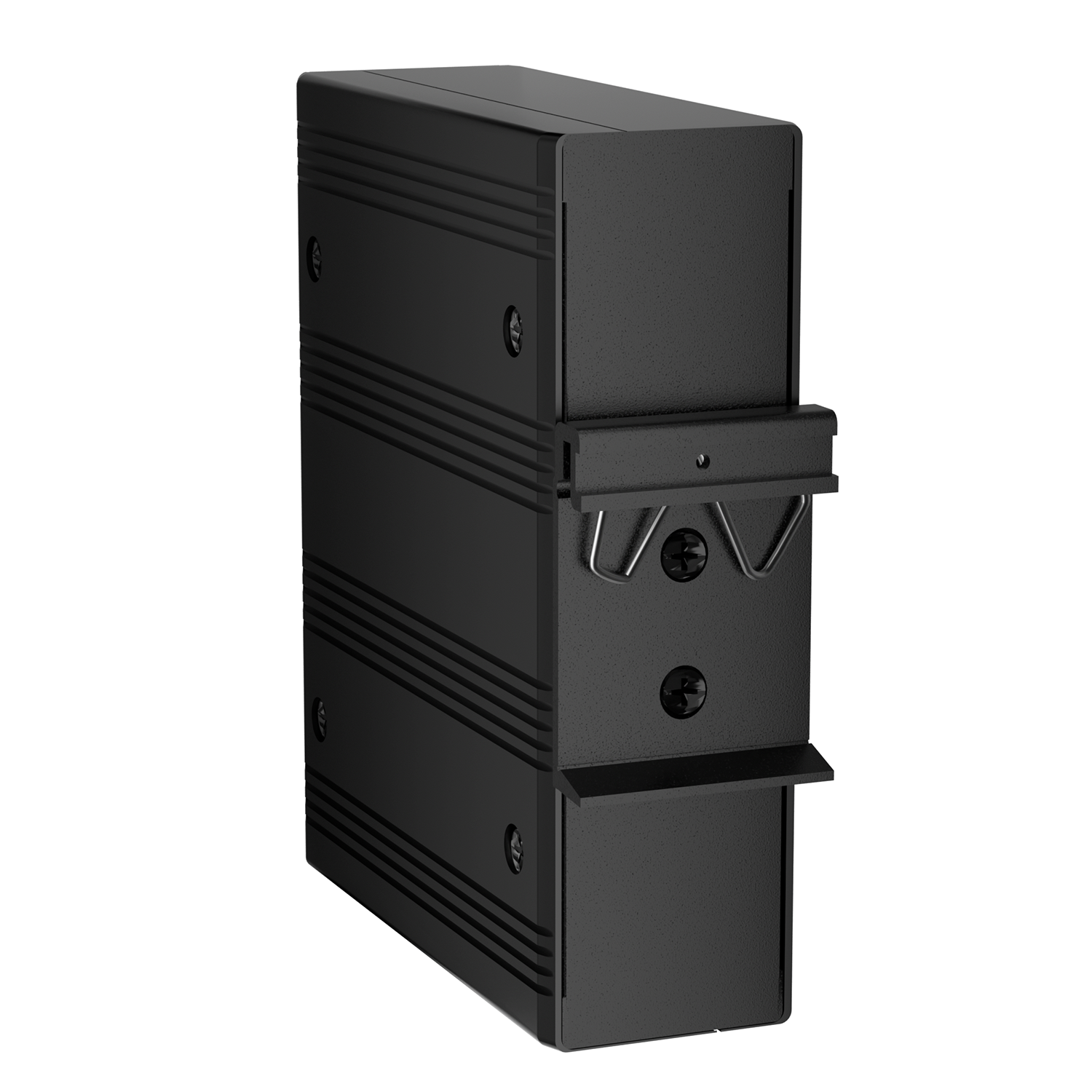

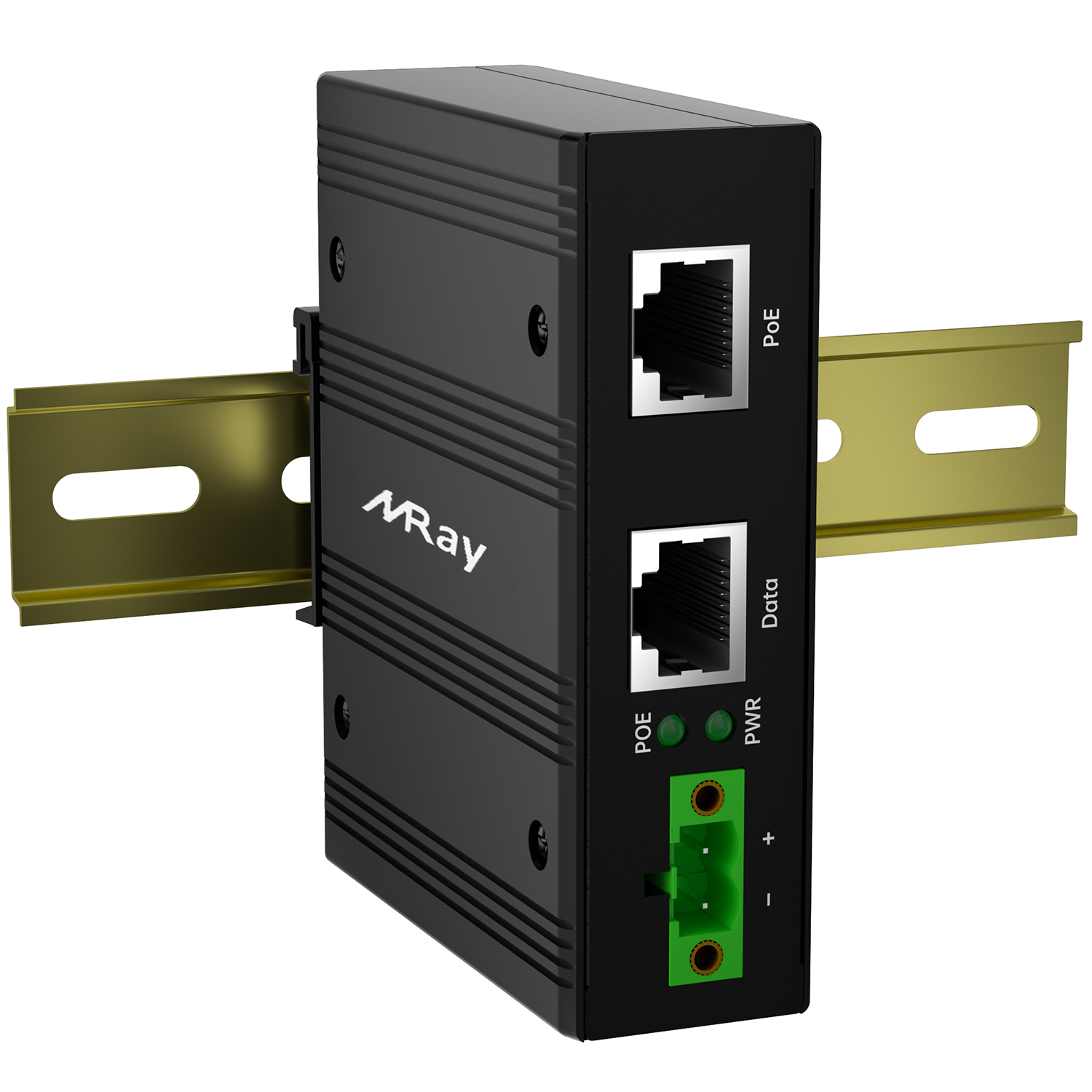

Din Rail |
|
Dimension(W×D×H) |
30mm x 78mm x 95mm(1.18in x 3.07in x 3.74in) |
|
Weight |
0.3Kg |
