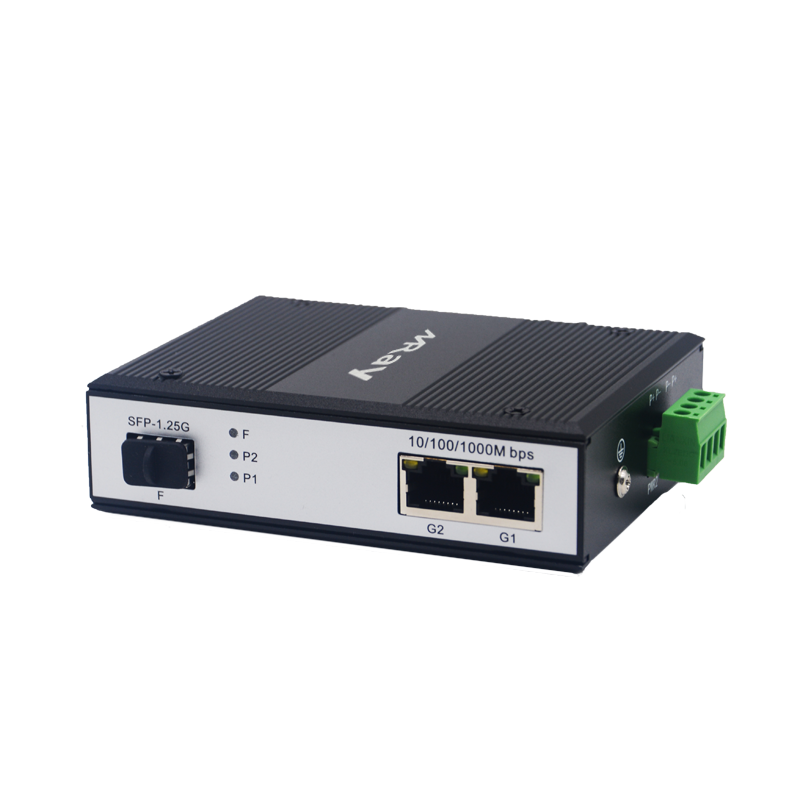

Industrial Fiber Media Converter 2 ports 10/100/1000Mbps RJ45 with 1 port 1000Mbps SFP Slot MR-I1G2T-SFP

Name: Industrial Fiber Media Converter 2 ports 10/100/1000Mbps RJ45 with 1 port 1000Mbps SFP Slot MR-I1G2T-SFP
Brand: Miray
SKU: MR-I1G2T-SFP
Availability: InStock
Rating: 5 (1 reviews)

No.MR-I1G2T-SFP

2 ports 10/100/1000Mbps RJ45 with Auto Uplink , 1 port 1000Mbps SFP
AutomaticMAC addresslearning and aging
Automatically supportIGMP(Multicasting)
10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
LEDindicators formonitoring power/link/activity
Supports10/100/1000Mbps-Full/Half-duplex
Supports Wall-mount andDIN-Railinstallation for lightning protection
SupportsDaisy-Chain connection
SupportsBroadcast StormControl
Superlighteningprotection, IP40 protection
Excellentheat elimination without cooling fan
Redundant dualDCpower inputs
RedundantPowerInputs
Apply toUrbanIntelligent Traffic Monitoring System (ITS), Safe City
Harshindustrial environment orhigher requirement
-40℃~+85℃operating temperaturerange
5-Year Warranty

Get The Latest Quote

Description
Applications
Specifications

Description

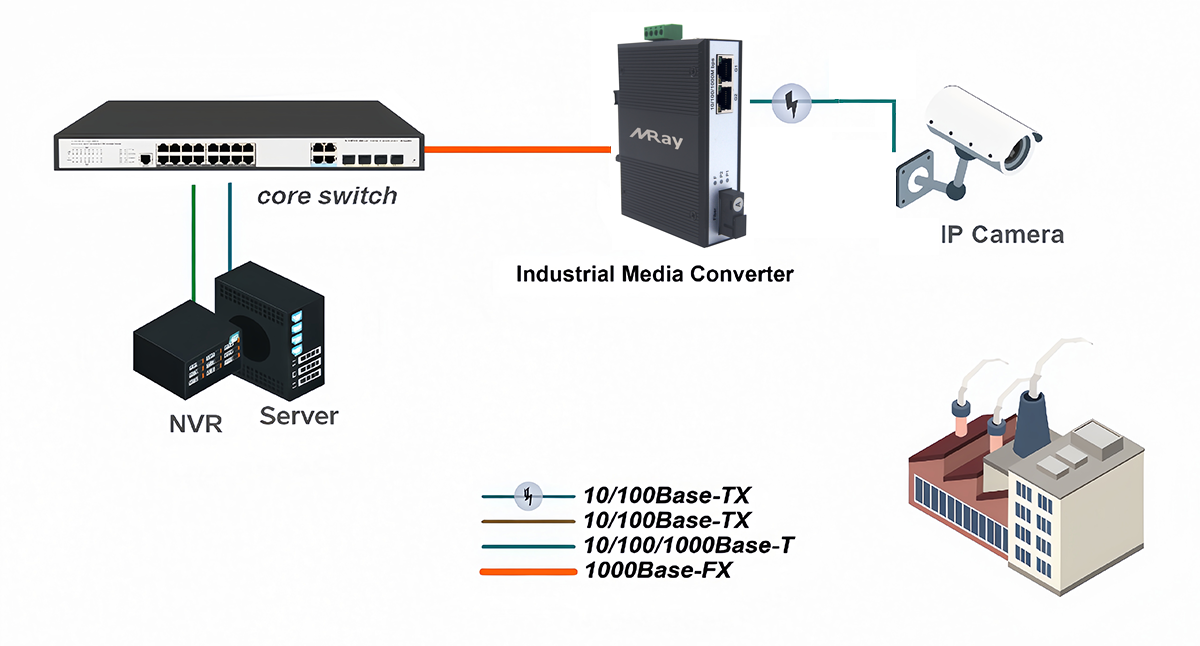

Miray’s MR-I1G2T-SFP is an Industrial Media Converter that excels in delivering superior performance, especially in terms of stability and environmental adaptability. This converter is equipped with 2* 10/100/1000BASE-T RJ45 copper port and a slot designed for 1* 100/1000BASE-X SFP module, offering versatile connectivity options to accommodate various network devices. Designed with Security, Transportation, and Telco applications in mind, the MR-I1G2T-SFP is a reliable solution for extending network distances. It operates effectively in critical environments, making it well-suited for IP surveillance, traffic monitoring, and other security-related applications.

MR-I1G2T-SFP offers a wide range of power options, supporting VDC input ranging from 12V to 57VDC. This adaptability enhances its versatility and ensures efficient power supply in diverse scenarios. Operating within a temperature range of -40 to 85℃, the MR-I1G2T-SFP is engineered to withstand harsh environmental conditions. This robust performance ensures a reliable network operation even in challenging environments with extreme temperature variations. Its IP40-rated housing provides dust and moisture protection, making it suitable for industrial settings such as factories, warehouses, and outdoor installations.

Product Name	2 Ports 10/100/1000Base Industrial Fiber Media Converter
Product Model	MR-I1G2T-SFP
Interface	2x 10/100/1000Base-T RJ45 port + 1x 1000Mbps SFP
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;
Network Protocols	IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meter)
	100BASE-TX: Cat5 or later UTP(≤100 meter)
	1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media	Multi-mode: 2KM Single-mode: 20/40/60/80KM SFP port
Performance	Bandwidth: 10Gbps
Specification	Packet Buffer Memory:1M
	Packet Forwarding Rate:1488000pps/port
	MAC Address Table: 16K
Forwarding Mode	Store-and-Forward
Protection	Lightening protection, IP40 protection
LED Indicators	Power: PWR; Link; Link/Act
Power Supply	Input Power: 2x12~57VDC (Terminal Block)
