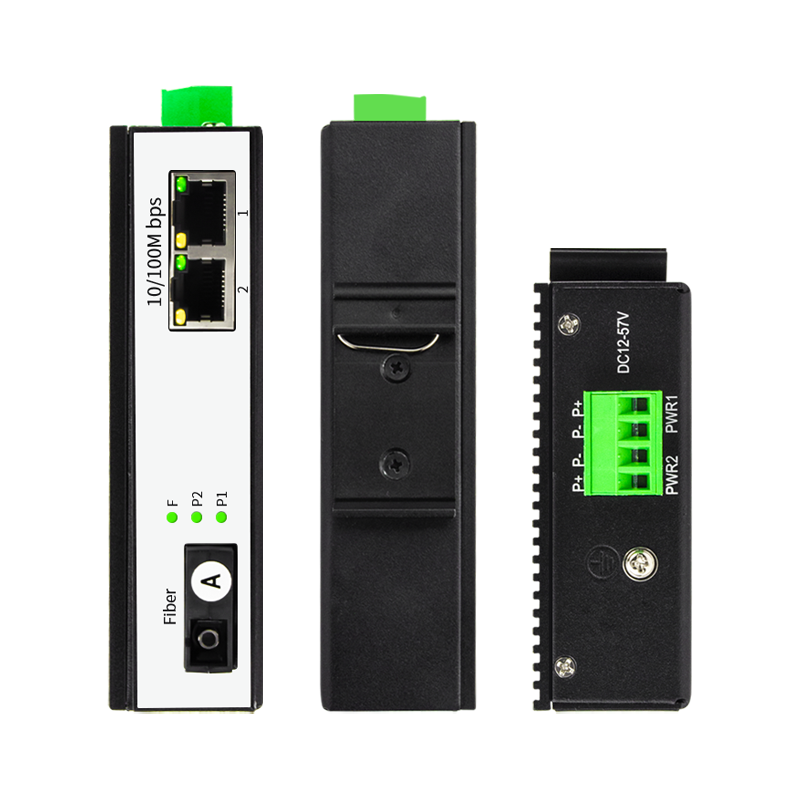

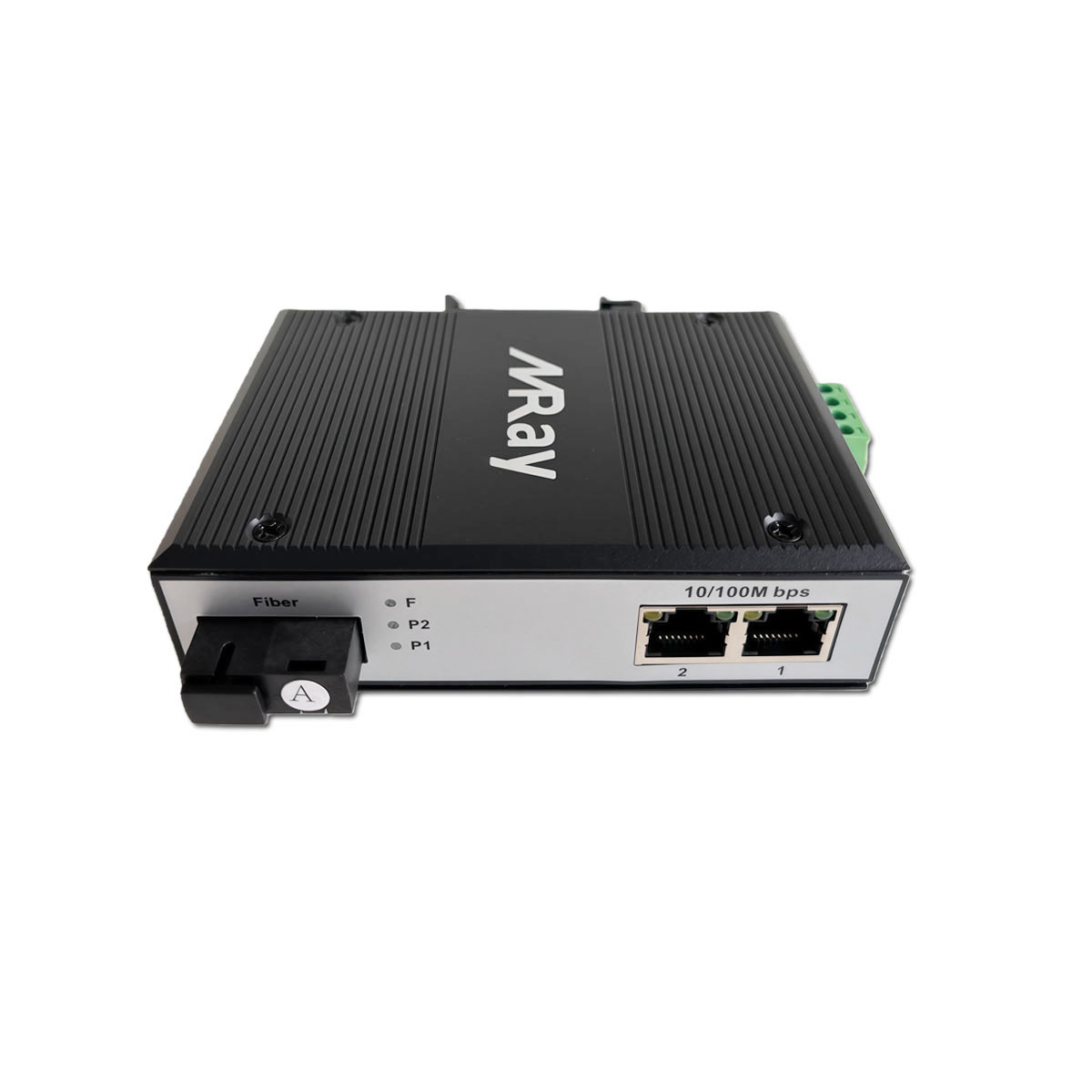

Industrial Fiber Media Converter 1 Fiber Port 2 RJ45 Ports MR-I1F2T-SC20

No.MR-I1F2T-SC20

Features

  • 2 Port 10/100Mbps RJ45 with Auto Uplink™ , 1 port 100Mbps SC
  • AutomaticMAC address learning and aging
  • Automatically support IGMP (Multicasting)
  • 10/100Mbps Auto-negotiation , auto-MDI-MDI-X
  • LED indicators for monitoring power/link/activity
  • Supports 10/100Mbps-Full/Half-duplex
  • Supports Wall-mount and DIN-Rail installation for lightning protection
  • Supports Daisy-Chain connection
  • Supports Broadcast Storm Control
  • Super lightening protection, IP40 protection
  • Excellent heat elimination without cooling fan
  • Redundant Power Inputs
  • Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City
  • Harsh industrial environment or higher requirement
  • -40℃~+85℃ operating temperature range
  • 5-Year Warranty
  • Industrial Fiber Media Converter 1 Fiber Port 2 RJ45 Ports MR-I1F2T-SC20
  • Industrial Fiber Media Converter 1 Fiber Port 2 RJ45 Ports MR-I1F2T-SC20
  • Description

  • Applications

  • Specifications

Description

Miray’s MR-I1F2T-SC20 Industrial fiber media converter, with 2 Port 10/100 Ethernet ports and 1 port 100Mbps SC Fiber for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other devices. Specially designed for harsh outdoor applications. Its 4KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power.

Applications

  • Industrial Ethernet Networks: Provide reliable connections in factories and production lines.
  • Smart Cities: Power IoT devices in outdoor and urban environments.
  • Transportation Systems: Ensure stable communication in railways, highways, and aviation.
  • Energy Sector: Support networks in wind farms, solar plants, and oil rigs.

Specifications


Product Name

 2 Port 10/100Base Industrial Ethernet Switch

Product Model

 MR-I1F2T-SC20

Interface

 2x 10/100Base-T RJ45 port + 1x 100Mbps SC Fiber

Network Protocols

 IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;

 IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;

Transmission Dist.

 2km, 10km, 20km, 40km, 60km, 80km

Network Media

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

Fiber Media

Multi-mode: 2KM

Single-mode: 20/40/60/80KM

Performance Specification

Bandwidth: 1Gbps

Packet Buffer Memory: 512K

Packet Forwarding Rate:1488000pps/port

MAC Address Table: 1K

Forwarding Mode

Store-and-Forward

Protection

Lightening protection, IP40 protection

LED Indicators

Power: PWR; Link;  Link/Act

Power Supply

Input Power: 2x12~57VDC (Terminal Block)
