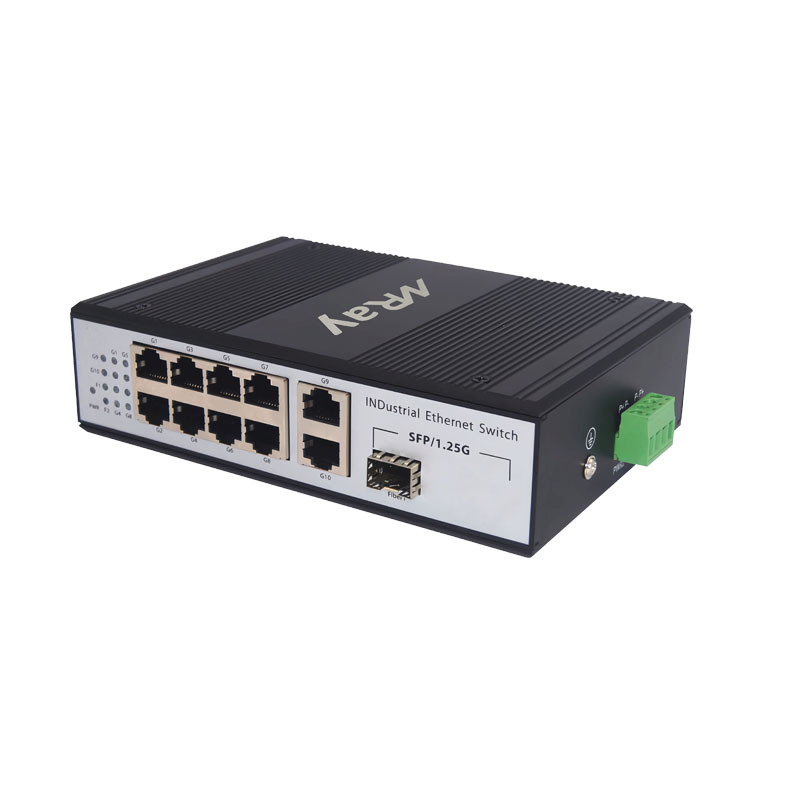

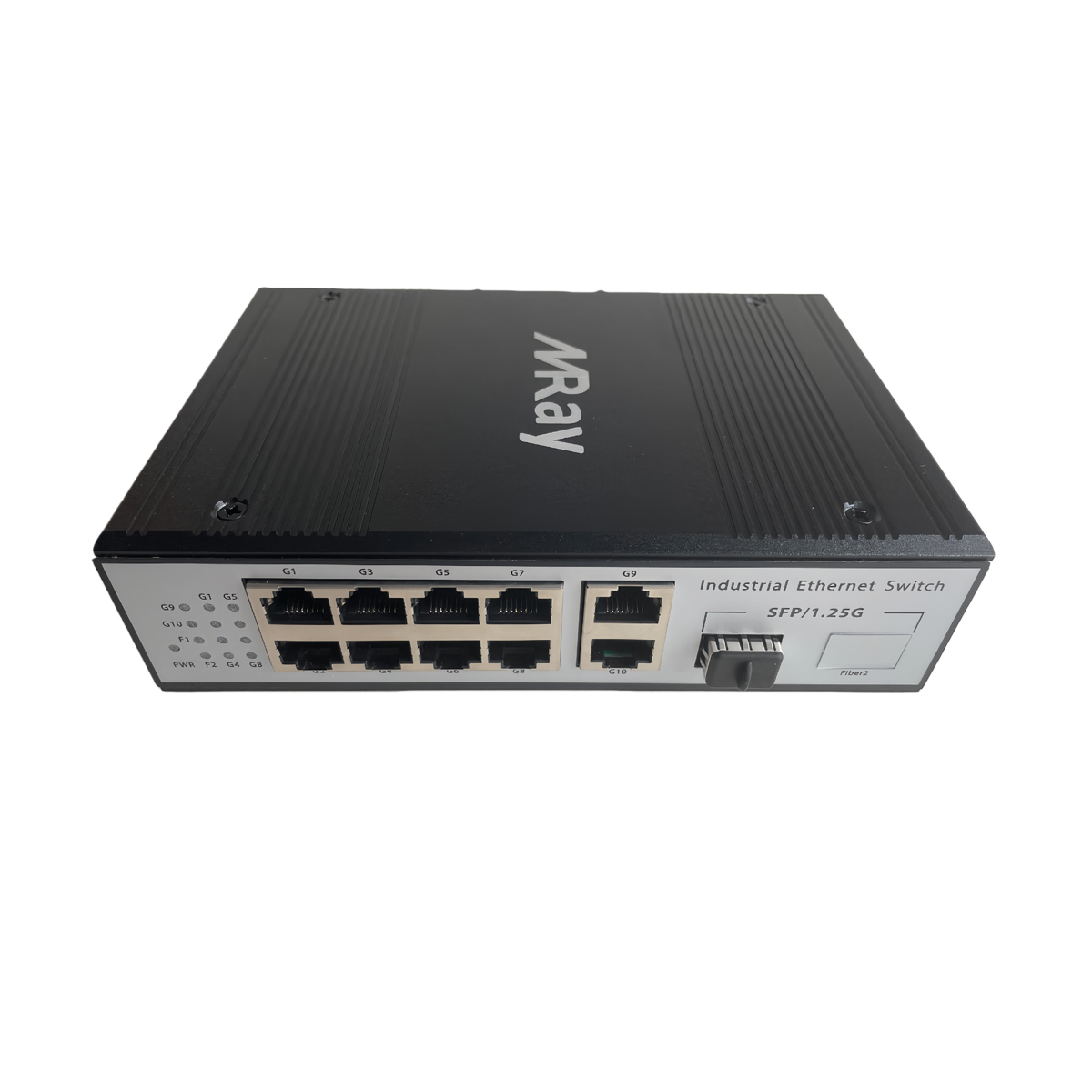

Miray’s MR-I2G10T-SFP Industrial Ethernet Switch is equipped with 8*10/100/1000BASE-T RJ45 copper port, 2 *10/100/1000M Uplink and 2 slots designed for 2* 100/1000BASE-X SFP module, providing versatility for connecting various Ethernet devices such as Ethernet I/O, IP cameras, and other Ethernet switches. The switch ensures a plug-and-play experience, making it easy to set up standard industrial setups.
Housed in a rugged, IP40-rated aluminum casing, MR-I2G10T-SFP allows for easy installation on a DIN rail or wall mounting. Its sturdy design enables it to withstand harsh industrial environments, making it suitable for deployment in rugged conditions. It offers a wide range of power options, supporting VDC input ranging from 12V to 57VDC. This adaptability enhances its versatility and ensures efficient power supply in diverse scenarios. Its wide operating temperature range from -40 to 85℃ ensures reliable performance in the most challenging environments.
|
Product Name |
10 Port 10/100/1000Base Industrial Ethernet Switch |
|
Product Model |
MR-I1G10T-SFP |
|
Interface |
8x 10/100/1000Base-T RJ45ports + 2*10/100/1000M Uplink Ports +1*1000Mbps SFP Slot |
|
Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; |
|
IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
|
|
Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meter) |
|
100BASE-TX: Cat5 or later UTP(≤100 meter) |
|
|
1000BASE-TX: Cat6 or later UTP(≤100 meter) |
|
|
Fiber Media |
Multi-mode: 2KM Single-mode: 20/40/60/80KM |
|
Performance Specification |
Bandwidth: 20Gbps |
|
Packet Buffer Memory:2M |
|
|
Packet Forwarding Rate:1488000pps/port |
|
|
MAC Address Table: 16K |
|
|
Forwarding Mode |
Store-and-Forward |
|
Protection |
Lightening protection, IP40 protection |
|
LED Indicators |
Power: PWR; Link; Link/Act |
|
Power Supply |
Input Power: 2x12~57VDC (Terminal Block) |
