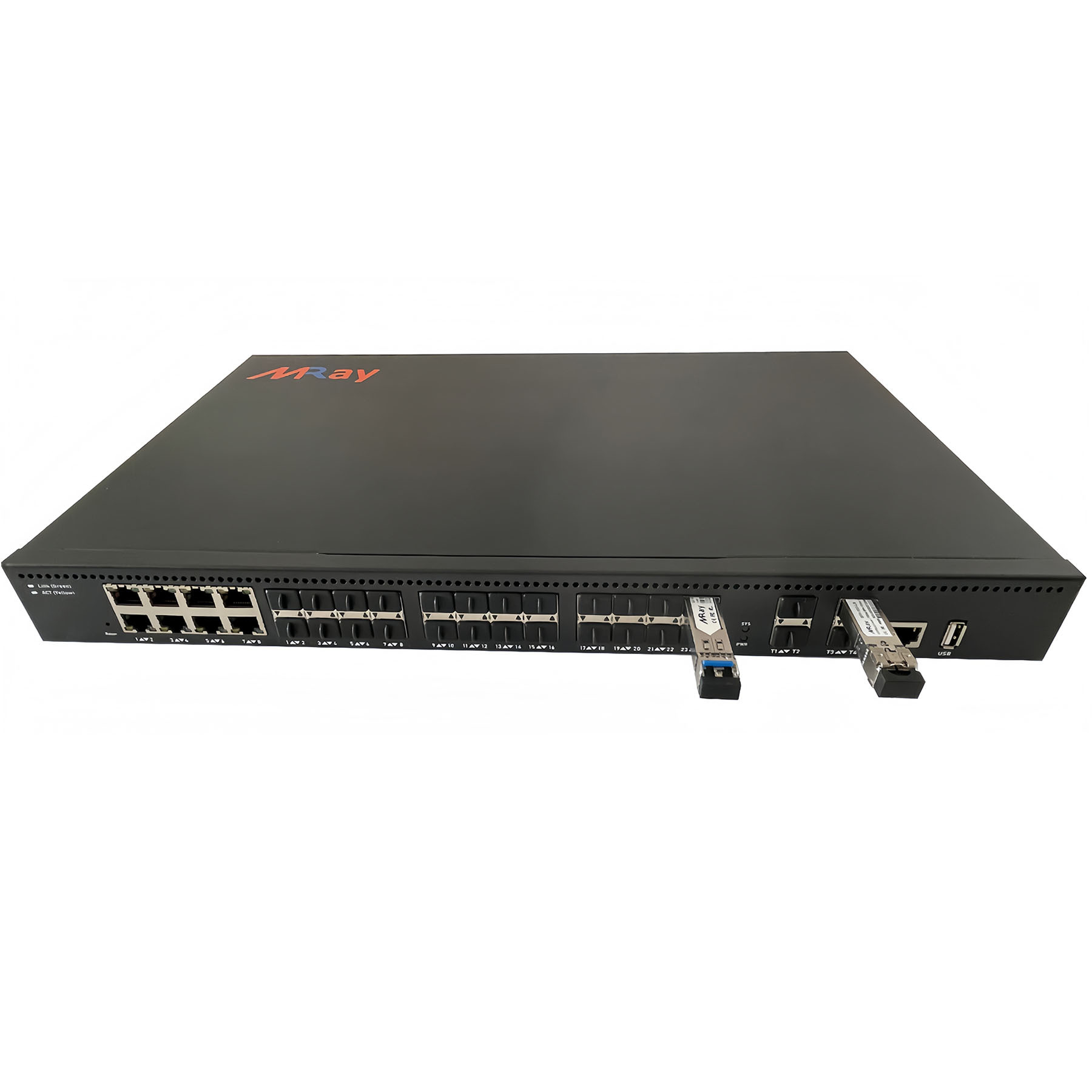

The Miray MR-M424GS-4X Smart Fiber Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge and SMB core deployments with unrivalled ease of use.
MR-M424GS-4X is ideal for server aggregation, wireless access, unified communications and Video-over-IP.
|
Hardware Features |
|
|
1.25GBASE-X Fiber SFP Port |
24 Ports 1.25G SFP for connect to the access network. Support for Fiber and Copper modules. |
|
10GBASE-X Fiber SFP+ ports |
Four dedicated 10G SFP+ ports for aggregation to the network core. Support for Fiber and Copper modules. Can also build dual redundancy by a trunked uplink with link aggregation. |
|
1000BASE-T Copper Ethernet connections |
Eight 10/100/1000M RJ45 Ports Combo for the administrator can flexibly choose service connection |
|
Energy Efficient Ethernet (IEEE 802.3az) |
Maximum power reduction for onging operational cost savings. |
|
Software Features |
|
|
Comprehensive IPv6 Support for Management, ACL and QoS |
Build current network with future in mind. Ensure investment protection and a smooth migration to an IPv6-based network without switch replacement. |
|
IPv4 & IPv6 Static Routing |
A simple way to provide segmentation of the network with internal routing through the switch – reserving the router for external traffic routing only, making the entire network more efficient. |
|
Robust security features: • 802.1x authentication (EAP) • Port-based security by locked MAC • ACL filtering to permit or deny traffic based on MAC and IP addresses |
Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorized users. |
|
Comprehensive QoS features: • Port-based or 802.1p-based prioritization • Layer 3-based (DSCP) prioritization • Port-based ingress and egress rate limiting |
Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video. |
|
IGMP (IPv4) and MLD (IPv6) Snooping and Querier modes with Fast Leave |
Facilitate fast receiver joins and leaves for multicast streams. Save cost and improve network efficiency by ensuring multicast traffic only reaches desig-nated receivers without the need of an extra multicast router. |
|
DHCP Snooping and Dynamic ARP Inspection |
Ensure IP address allocation integrity by only allowing DHCP messages from trusted DHCP servers and dropping malformed DHCP messages with a port or MAC address mismatch. Use the DHCP snooping bindings database per port and per VLAN to drop incoming packets that do not match any binding and to enforce source IP/MAC addresses for malicious users traffic elimination. |

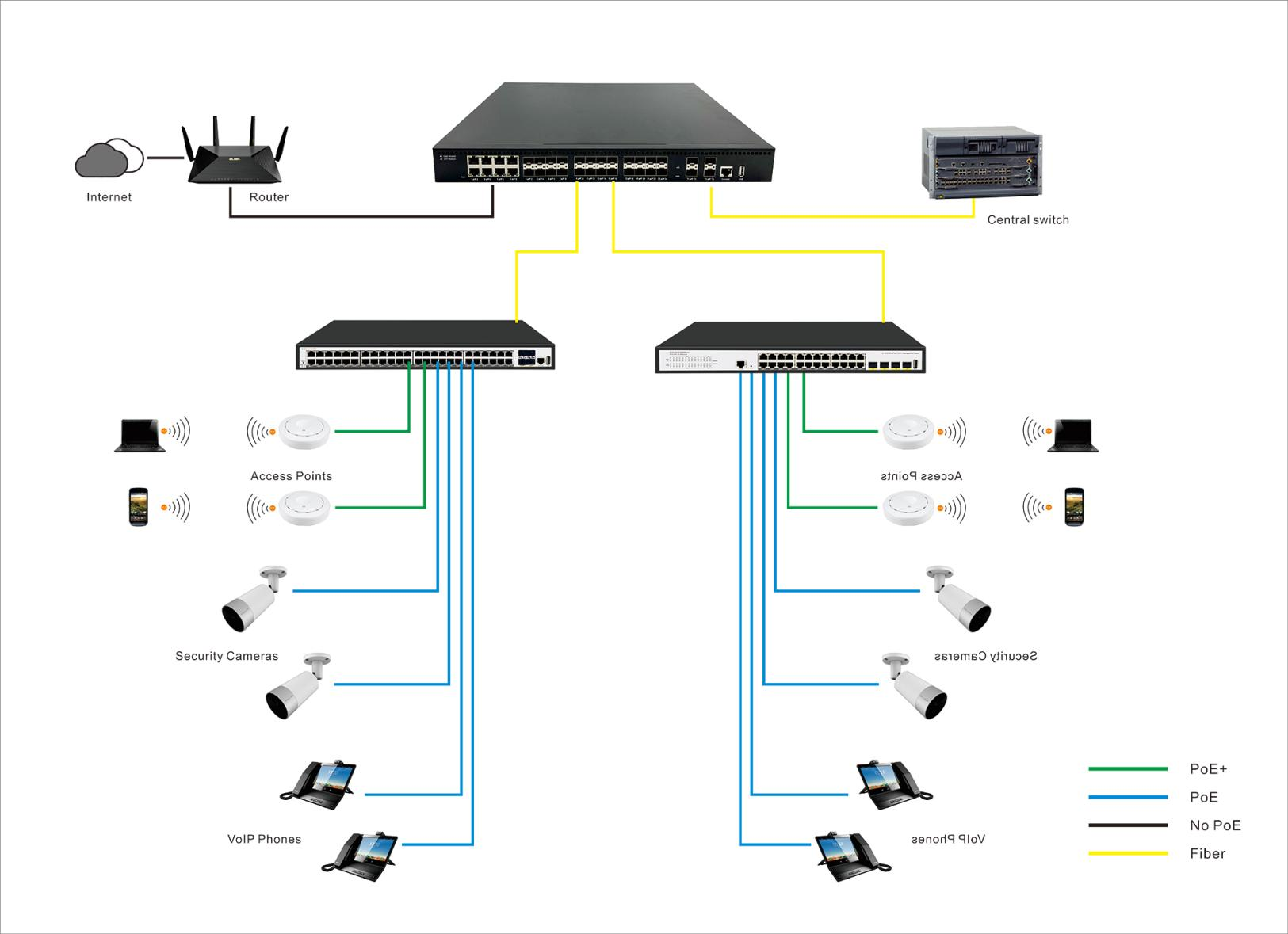

Network Convergence
