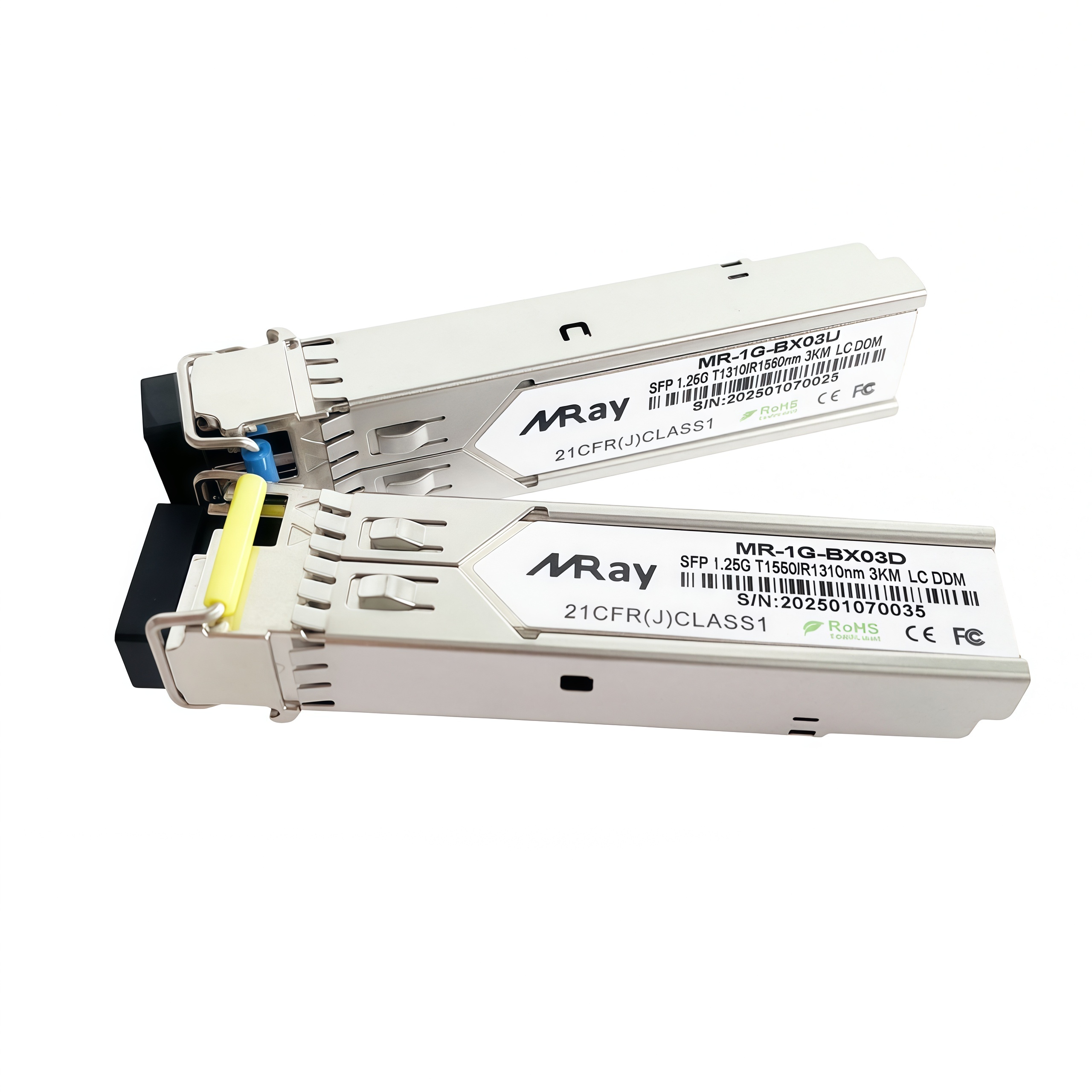

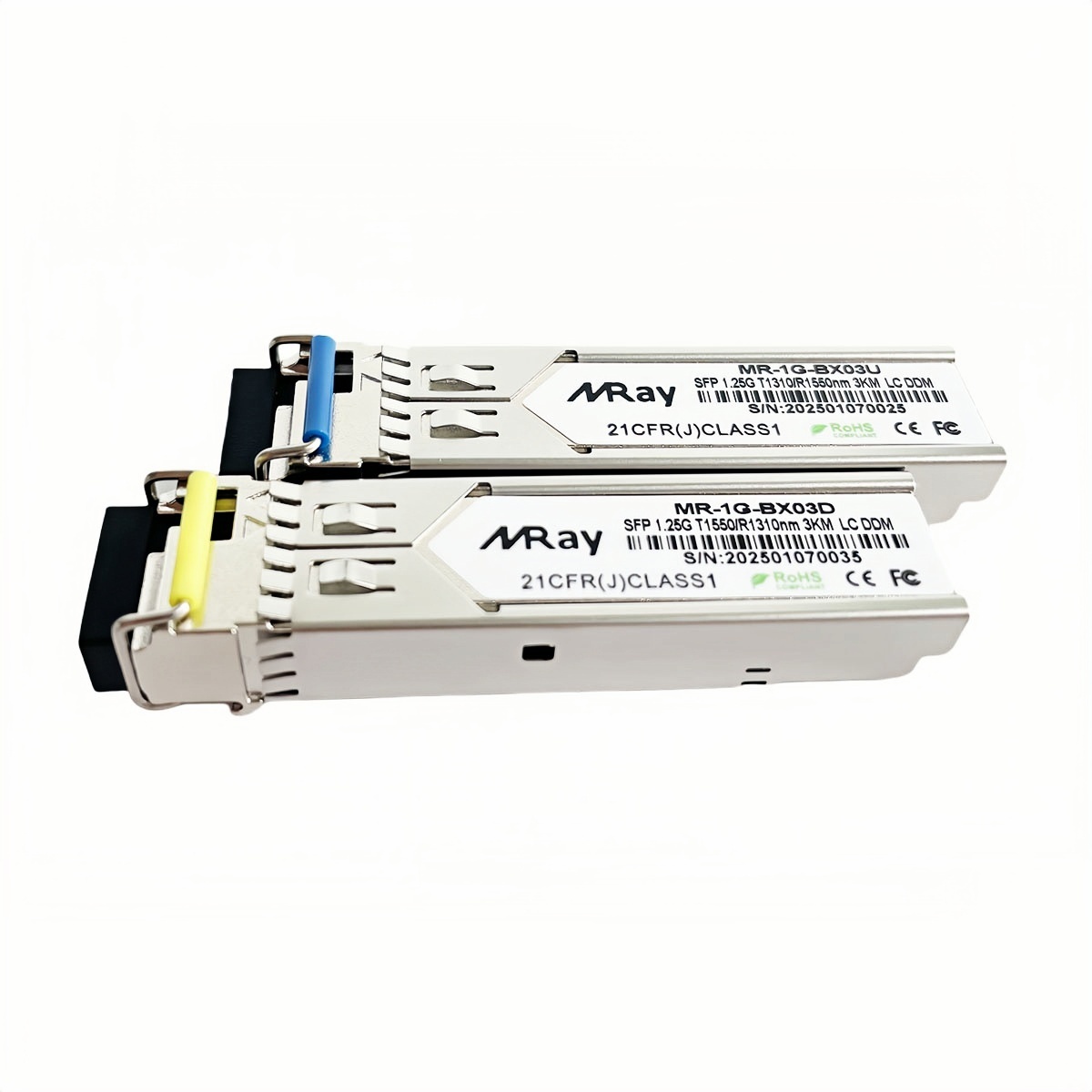

Miray’s GE-BX03-SM1310 Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 12dB link budge ensure this module 1000Base-LX Ethernet 3km application.
Applications
1000Base-LX Ethernet
Metro/Access Networks
1×FibreChannel
Other Optical Links
Specifications
Part Number:
GE-BX03-SM1310
Vendor Name:
Miray
Form Factor:
SFP
Data Rate:
1.25Gbps
Wavelength:
1310nm-TX/1550nm-RX
Distance:
3km
Connector:
LC Simplex
Cable Type:
OS2 SMF
Transmitter:
FP
Receiver Type:
PIN
TX Power:
-12~-6dBm
Receiver Sensitivity:
<-21dBm
Power Consumption:
<1W
Modulation Format:
NRZ
DDM:
Support
Bit Error Ratio (BER):
10-12
Protocols:
Fast Ethernet, Gigabit Fibre Channel, MSA Compliant
