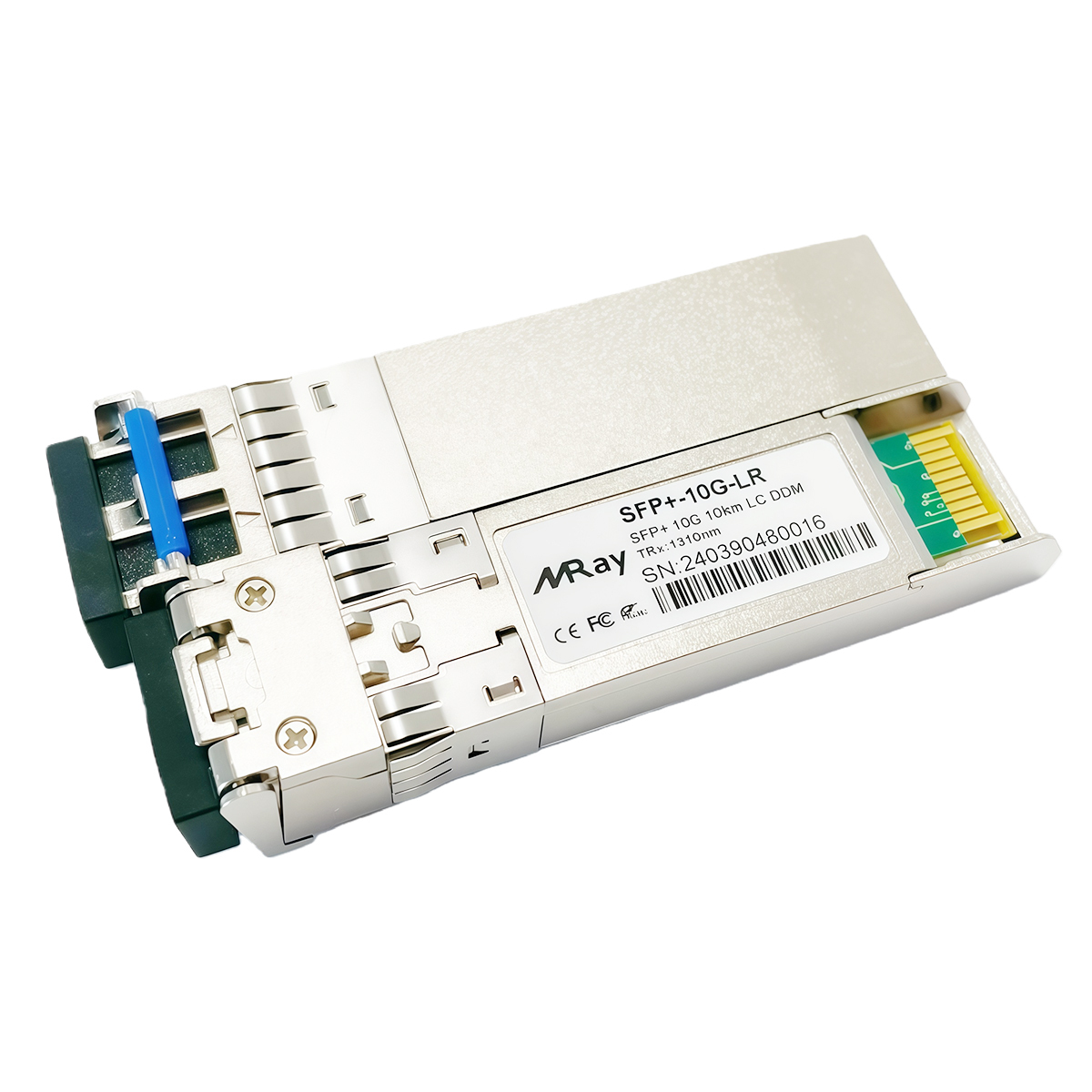

Cisco SFP-10G-LR Compatible 10GBASE-LR SFP+ 1310nm 10km Transceiver Module

No.SFP-10G-LR

Features

Supports 9.95 to 11.3Gb/s bit rates
Hot-Pluggable
Duplex LC connector
1310nm DFBtransmitter, PIN photo-detector
SMF links up to 10km
2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
Power Supply :+3.3V
Power consumption<1W
Temperature Range: Commercial: 0 to 70 °C, Industrial: -40 to 85 °C
SFP + MSA Compliant
RoHS compliant

Get The Latest Quote

Description
Applications
Specifications

Description

Miray's SFP-10G-LR is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The SFP-10G-LR converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.

The high performance 1310nm DFB transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 10km links. Multi-Vendor MSA Compatible SFP+

The SFP+ LR is Multi-Vendor MSA Compatible SFP+ Module. It compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.

Applications

10GBASE-LR/LW Ethernet
SONET OC-192 / SDH
10G Fibre Channel

Specifications

Compatible Brand	Cisco, Huawei, HP...	Vendor	Miray
Manufacturer Part No.	SFP-10G-LR	Form Factor	SFP+
Data Rate	10 Gbps	Wavelength	1310 nm
Media Type	SMF	Max Distance	10 km
Transmitter Type	DFB	Receiver Type	PIN
Transmitter Power	-6 ~ 0 dBm	Receiver Sensitivity	< -14.4 dBm
Extinction Ratio	> 3.5 dB	Receiver Overload	> 0.5 dBm
Connector	LC Duplex	Power Consumption	1 W
DDM/DOM	Yes	Compliance	RoHS, CE, REACH SFP+ MSA, IEEE 802.3ae SFF-8431, SFF-8432, SFF-8472
Environment	Operating Temperature: 0~70°C Storage Temperature: -40~85°C	Application	10GBase-LR/10GBase-LW Ethernet 10G fiber channel 10G data center switches and routers 10G network interface cards 10G fiber media converters
Shipping Weight	0.03 kg	Dimensions (LxWxH)	56.7×13.7×8.5 mm
