Features
Description

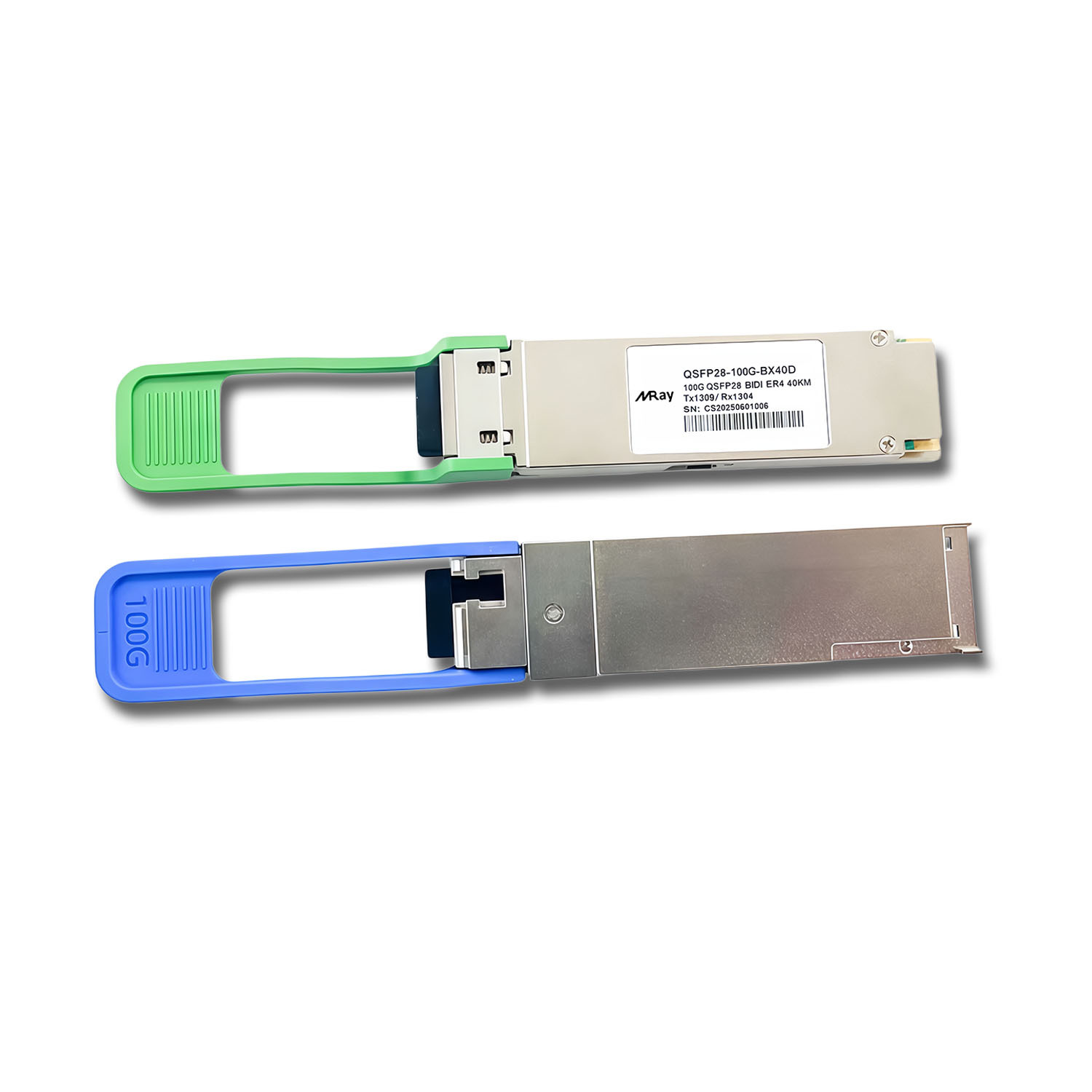

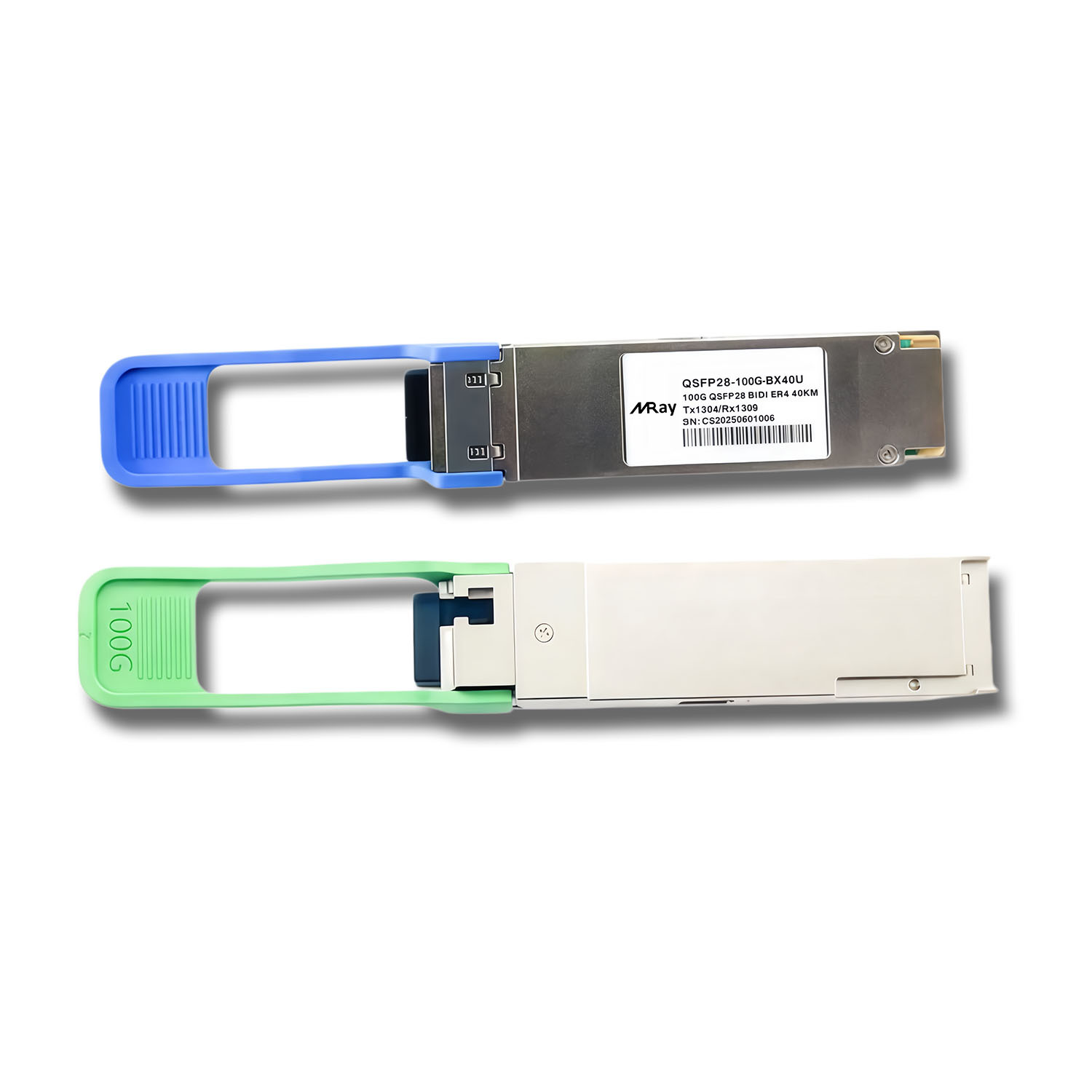

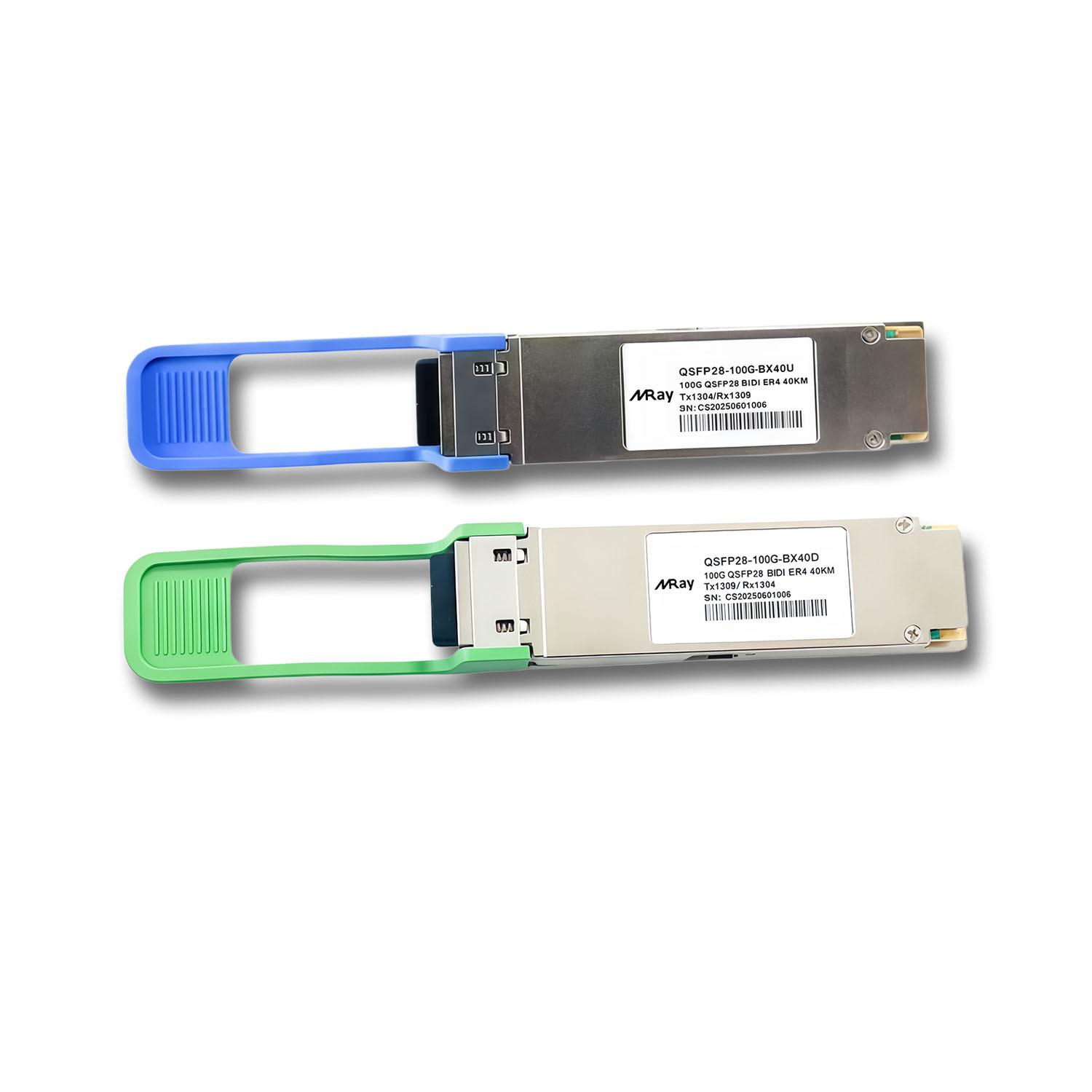

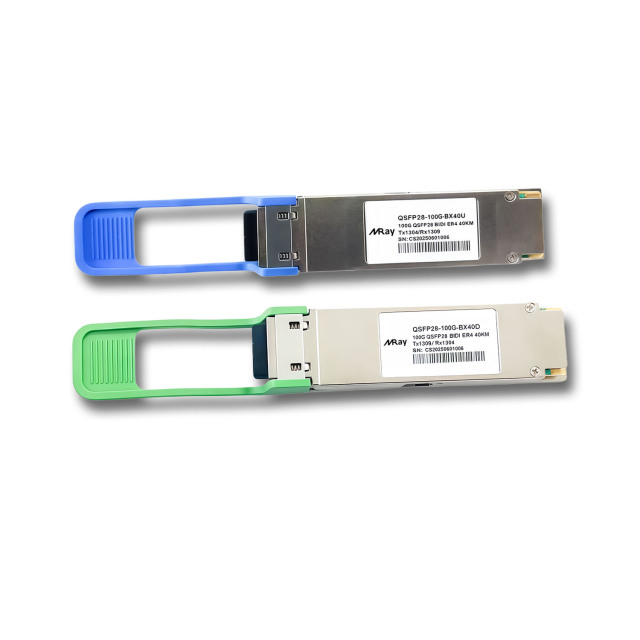

Miray’s QSFP28-100G-BX40U compatible QSFP28 optical transceiver is equipped with an LC simplex connector, reaching a link up to 40km over G.652. This 100G BiDi QSFP28 transceiver, featured with carrying information in both directions via a single strand, can double your network capacity and save your cable resources. QSFPTEK manufactured 100GBASE-BX BiDi SFP+ transceiver module is compliant with QSFP28 MSA. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. It's also fully compatible with almost all OEM devices.
| Model Name: | QSFP28-100G-BX40U | Vendor Name: | Miray |
| Form Factor: | QSFP28 | Data Rate: | 100Gbps |
| Wavelength: | 1304.58nm-TX/1309.14nm-RX | Distance: | 40km |
| Connector: | LC Simplex | Cable Type: | OS2 SMF |
| Transmitter Type: | EML | Receiver Type: | PIN |
| TX Power: | 1.7~7.1dBm | Receiver Sensitivity: | <-13.8dBm |
| Power Consumption: | <4.5W | Modulation Format: | NRZ |
| DDM: | Support | Bit Error Ratio (BER): | 1.E-12 |
| Protocols: | QSFP28 MSA Compliant, SFF-8636 | Warranty: | 5 Years |
