Features
Description

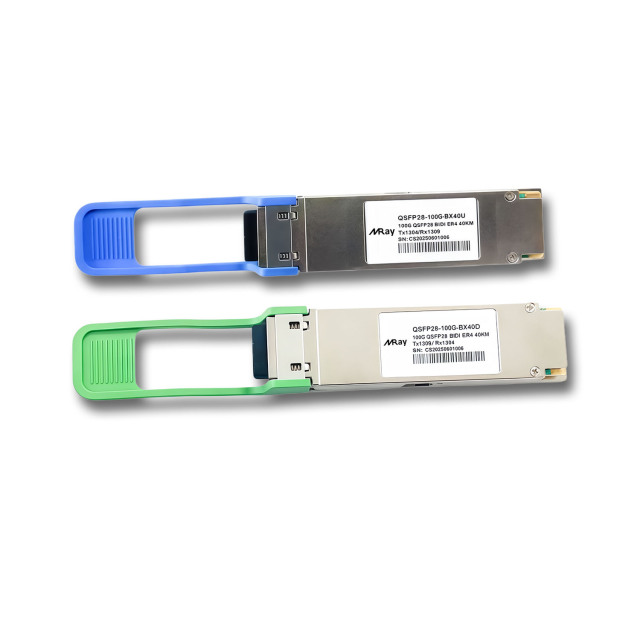

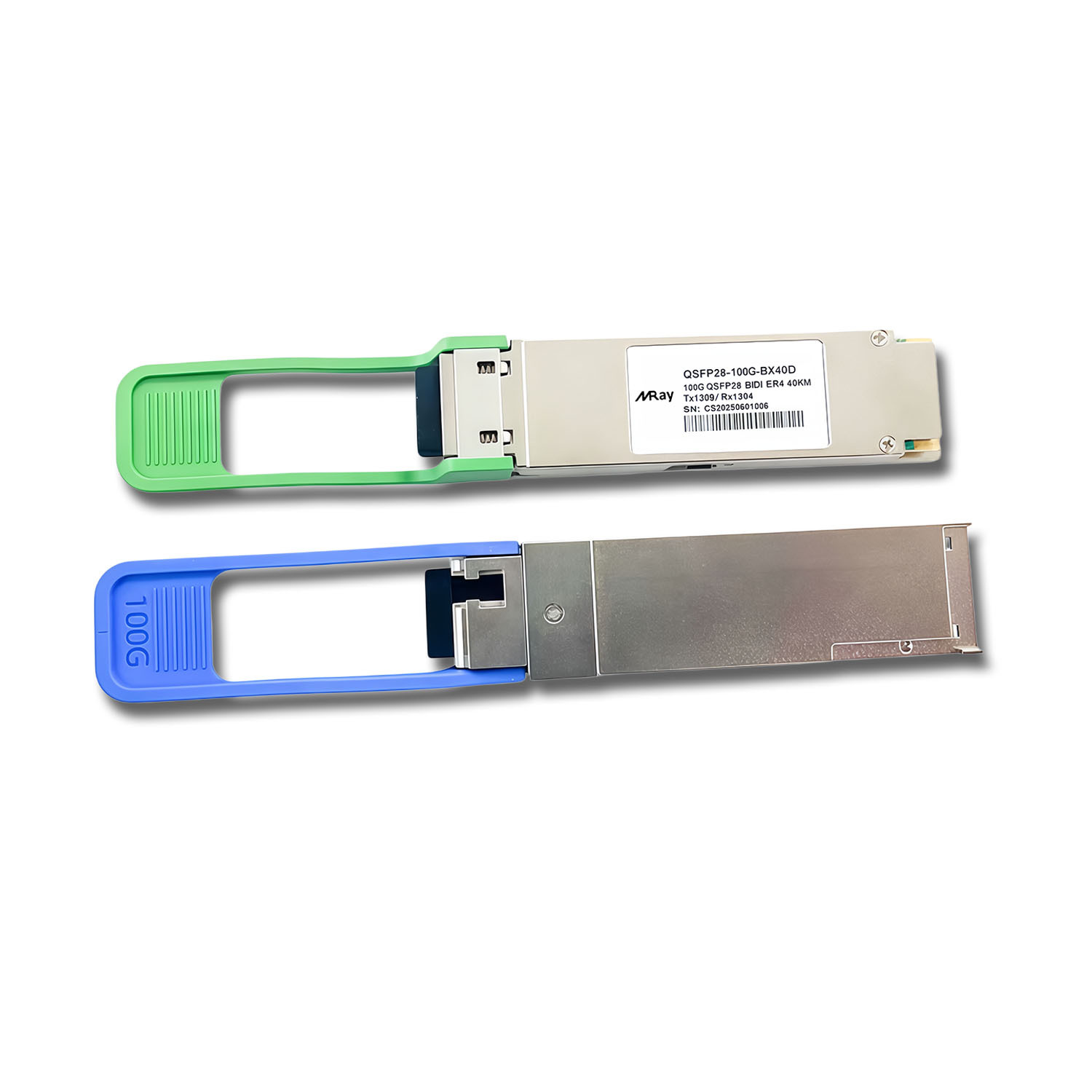

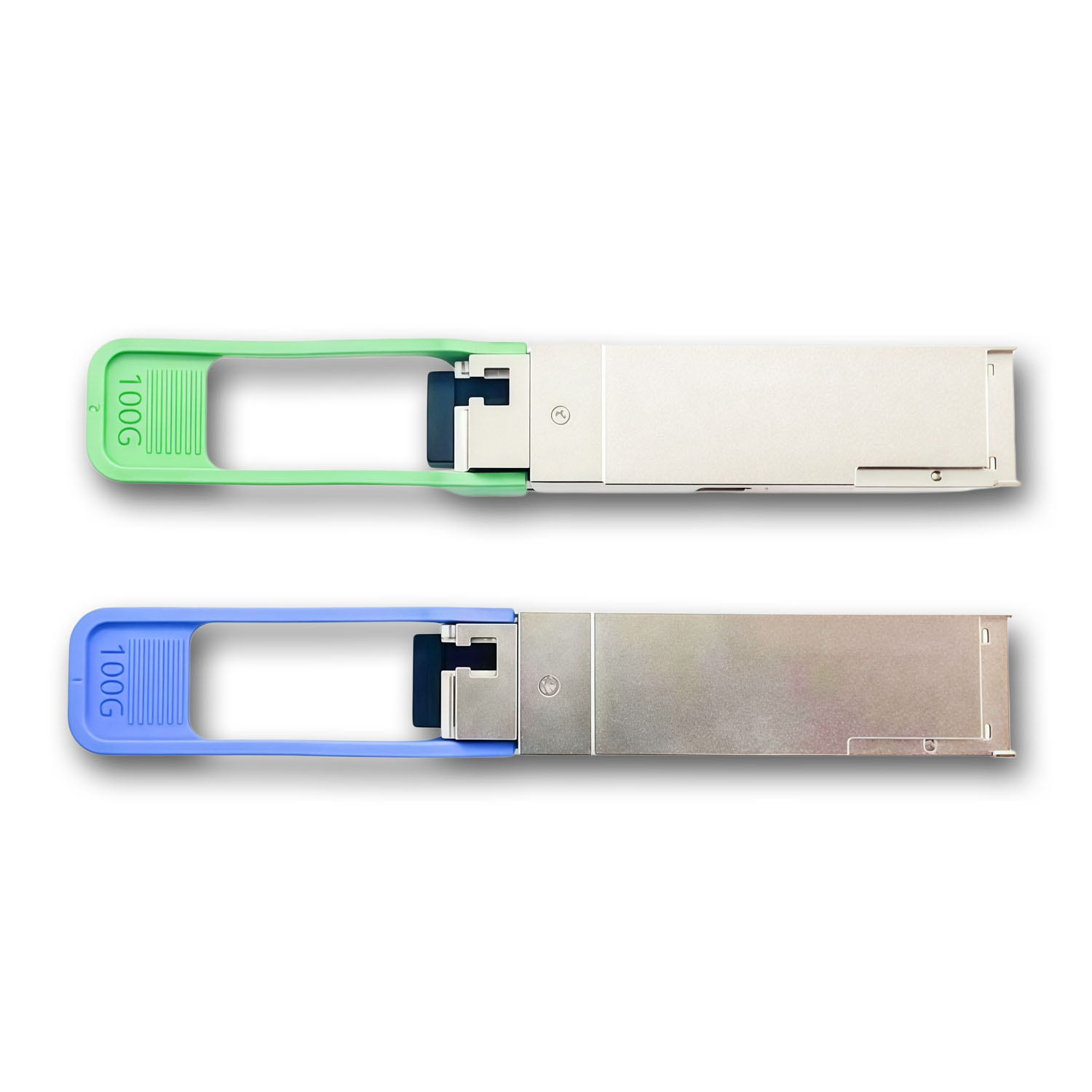

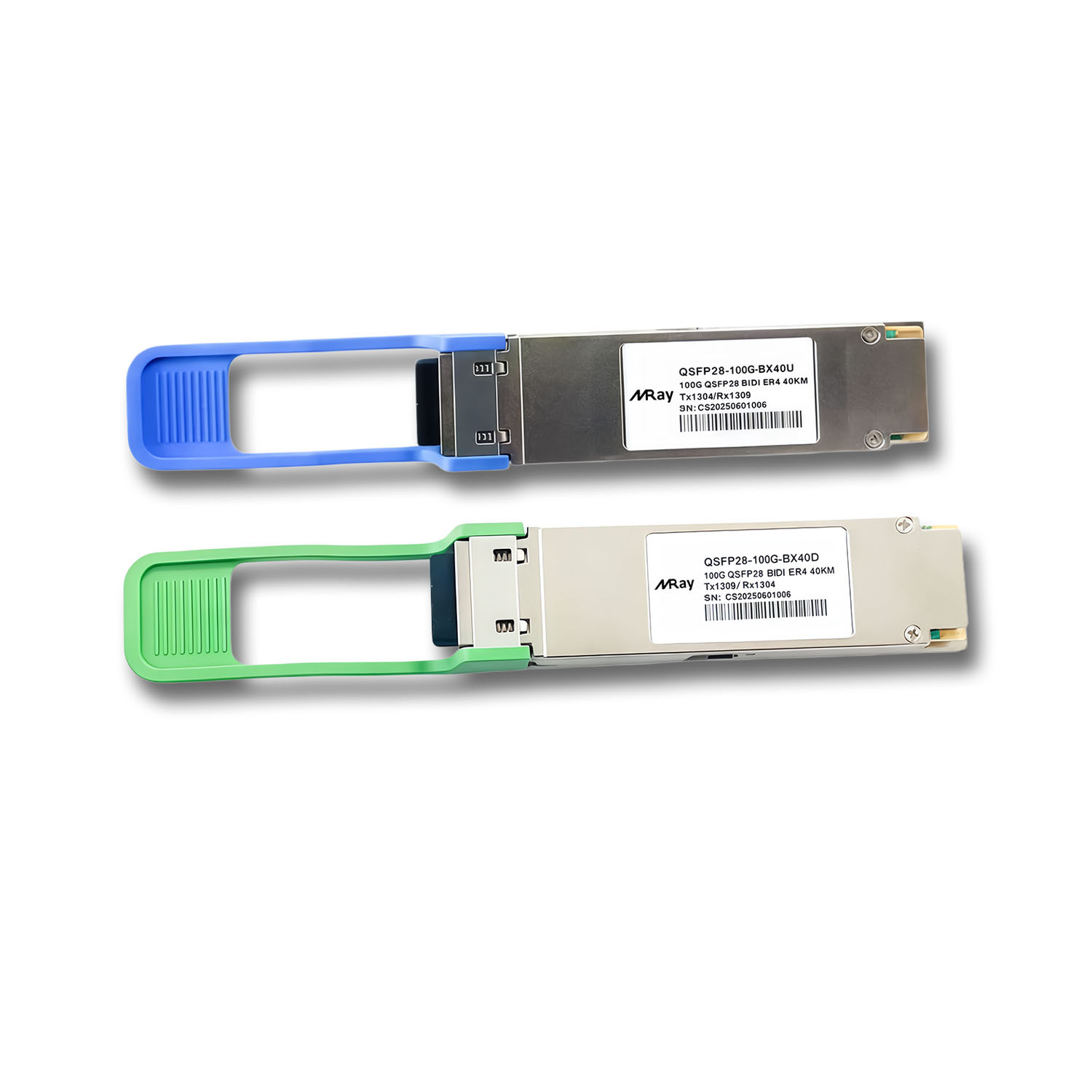

Miray’s QSFP28-100G-BX40U compatible QSFP28 optical transceiver is equipped with an LC simplex connector, reaching a link up to 40km over G.652. This 100G BiDi QSFP28 transceiver, featured with carrying information in both directions via a single strand, can double your network capacity and save your cable resources. QSFPTEK manufactured 100GBASE-BX BiDi SFP+ transceiver module is compliant with QSFP28 MSA. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. It's also fully compatible with almost all OEM devices.
| Compatible Brand | Cisco, HP, DELL, Huawei... | Manufacturer | Miray |
| Model No. | QSFP-100G-BX40D | Form Factor | BiDi QSFP28 |
| Data Rate | 100 Gbps | Wavelength | 1309.14-TX/1304.58nm-RX |
| Media Type | SMF | Max Distance | 40 km |
| Transmitter Type | EML | Receiver Type | APD |
| Transmitter Power | 1.5 ~ 7.1 dBm | Receiver Sensitivity | < -13.8 dBm |
| Extinction Ratio | > 6.0 dB | Receiver Overload | > -2.4 dBm |
| Connector | LC Simplex | Max Power Consumption | 4.5 W |
| DDM/DOM | Yes | Compliance | RoHS, CE, REACH QSFP28 MSA, SFF-8636, SFF-8679 |
| Environment | Operating Temperature: 0~70 °C Storage Temperature: -40~85 °C Operating Humidity: 5%~85% Storage Humidity: 5%~95% |
Application | 100G Ethernet Data Center High-performance computing clusters Fibre Channel |
| Shipping Weight | 0.07 kg | Dimensions (L x W x H) | 118.3 x 18.4 x 8.5 mm |
