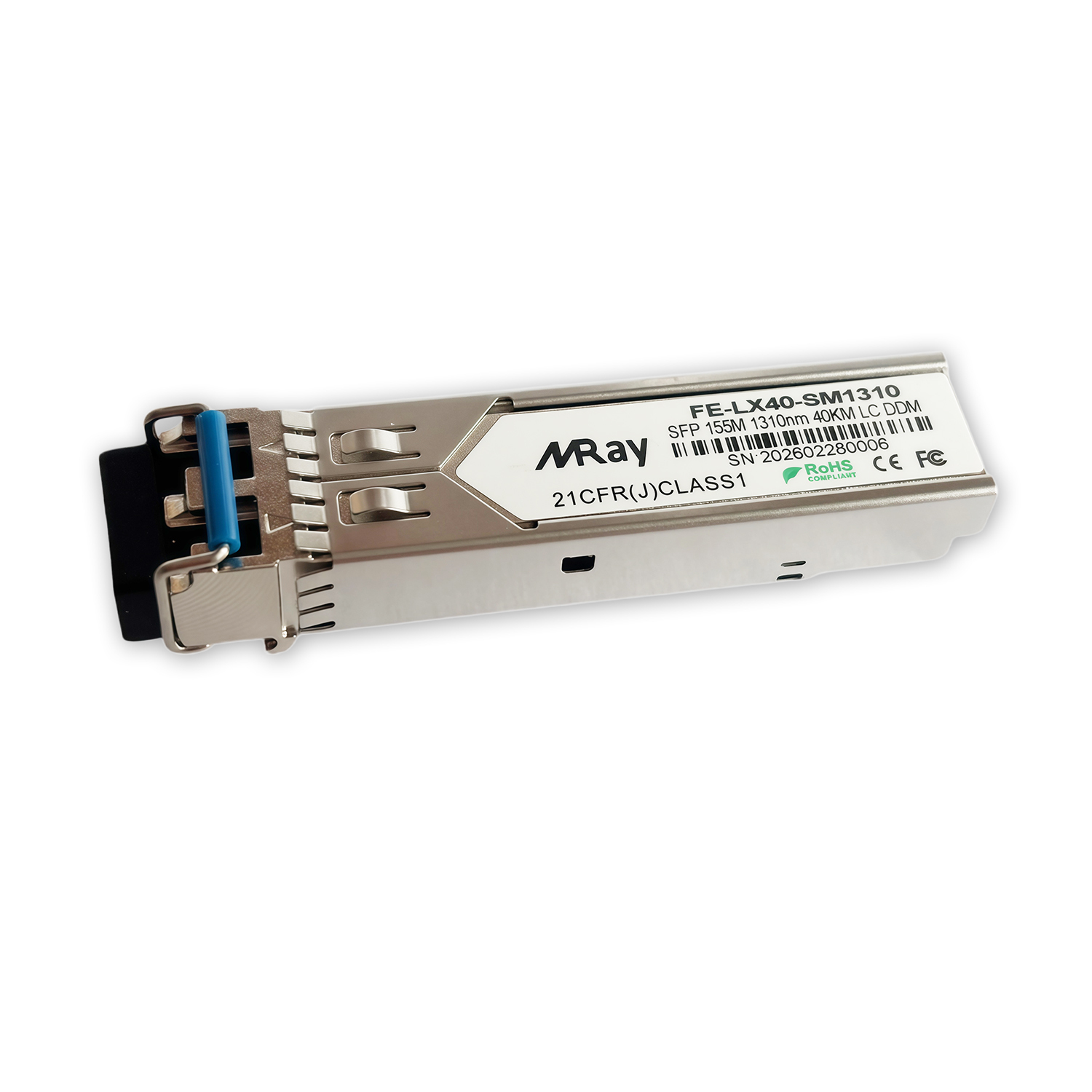

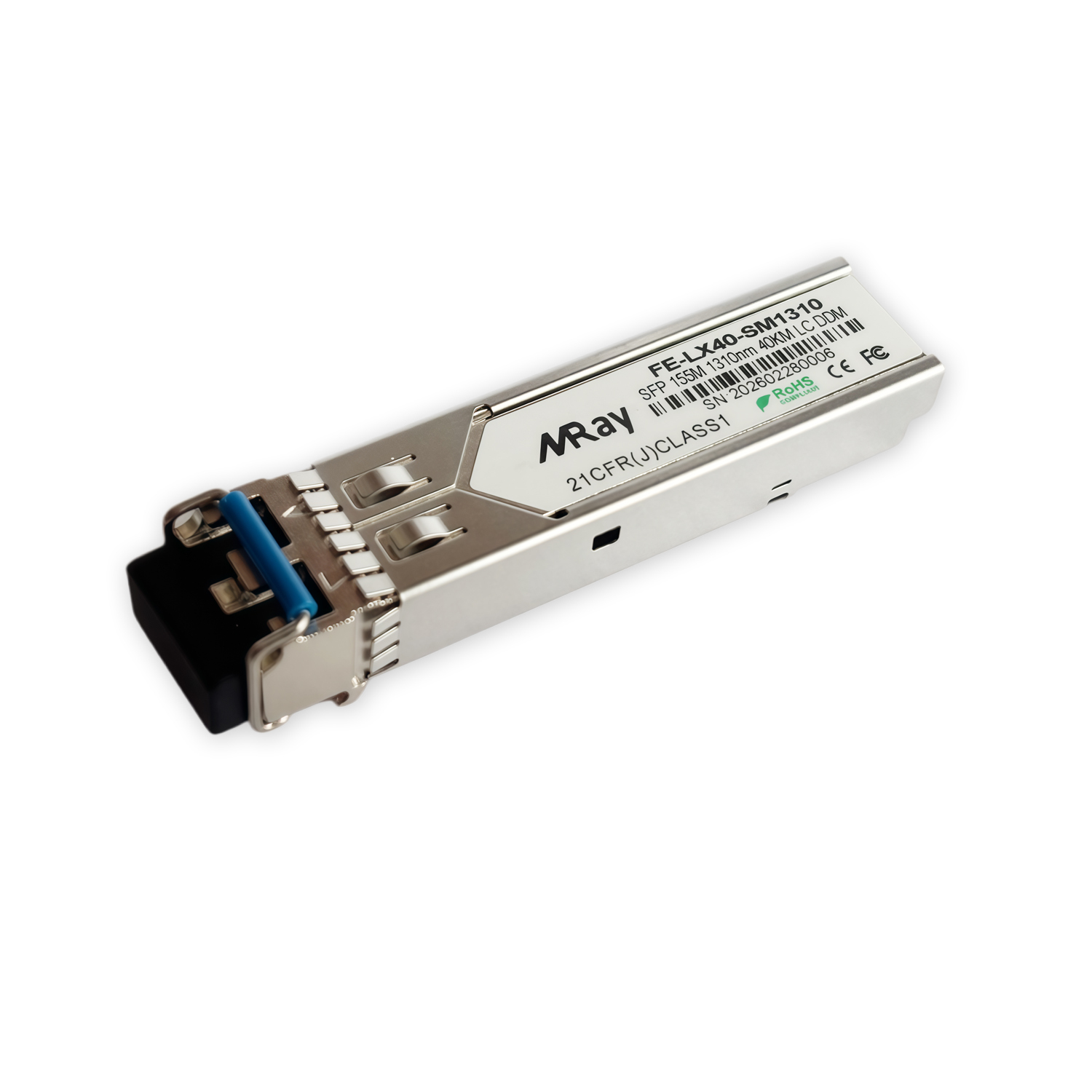

Miray’s FE-LX40-SM1310 Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1310nm FP laser, up to 29dB link budge ensure this module SONET OC-3/SDH STM-1 40Km application.
| Part Number | FE-LX40-SM1310 | Vendor Name | Miray |
| Form Factor | SFP | Data Rate | 100Mbps |
| Wavelength | 1310nm | Max Cable Distance | 40km |
| Connector | Duplex LC | Optical Components | FP 1310nm |
| Media | SMF | DOM Support | Yes |
| TX Power | -5~-0dBm | Receiver Sensitivity | < -32.5dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | GR-468, MSA Compliant |
