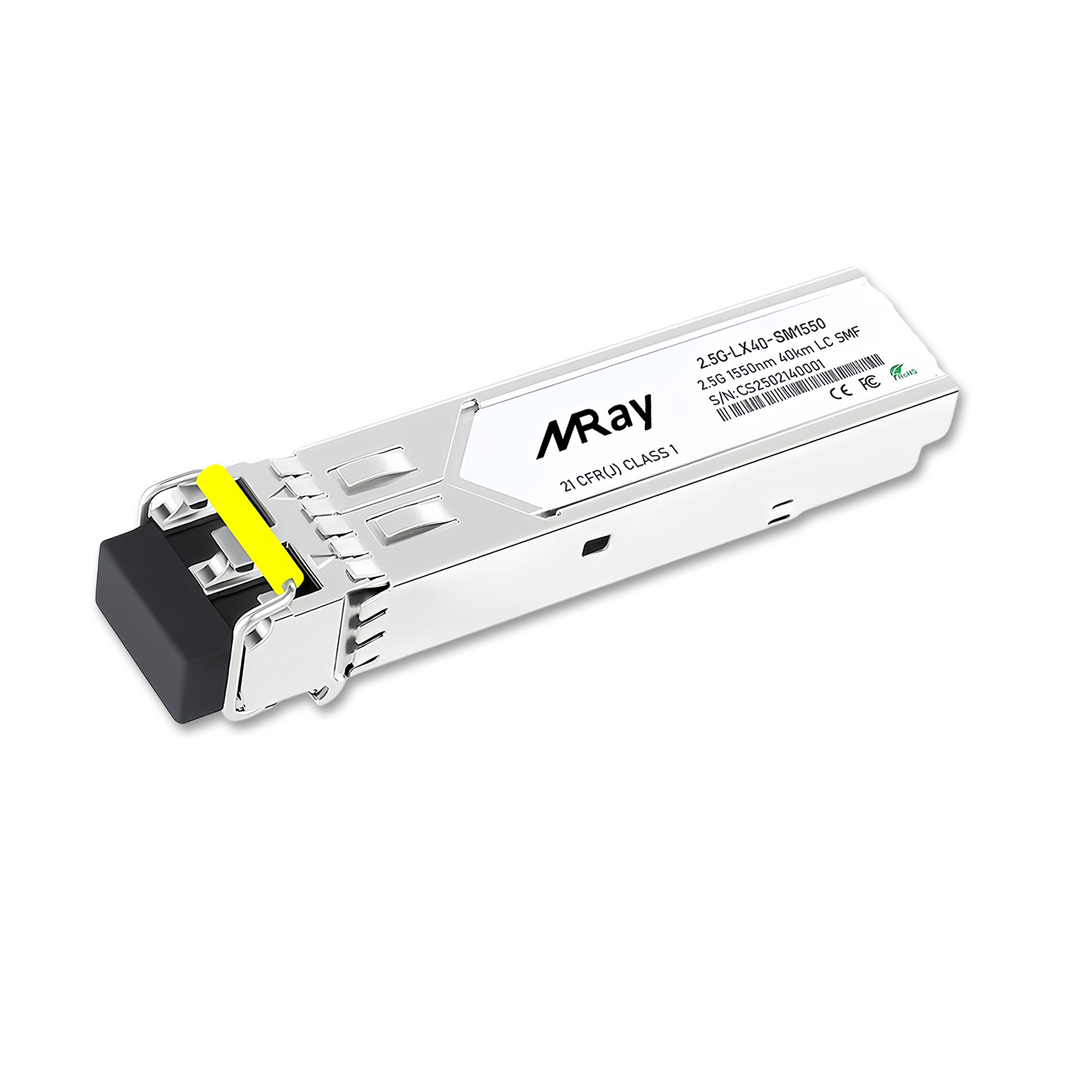

Miray’s 2.5G-LX40-SM1550 Transceivers are a high performance, cost effective module which have a duplex LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1550 nm DFB laser, up to 16dB link budge ensure this module SONET OC-48 / SDH STM -16 40km application.
Specifications
Part Number
2.5G-LX40-SM1550
Vendor Name
Miray
Form Factor
SFP
Data Rate
2.488 Gb/s
Wavelength
1550 nm
Fiber Type
SMF
Max Distance
40 km
Optical Components
DFB/PIN
Transmitter Power
-2 ~ 3 dBm
Extinction ratio
> 8.2 dB
Receiver Sensitivity
< -20 dBm
Receiver Overload
> -3 dBm
Connector
Duplex LC
Digital Diagnostic Monitoring
Yes
Environment
Operating: 0°C to 70°C Storage: -40°C to 85°C
Weight
0.03 kg
Application
2x Fibre Channel OC-48/STM-16 SDH/SONET Other Optical Links
Compliance
IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS
