◆ Description:

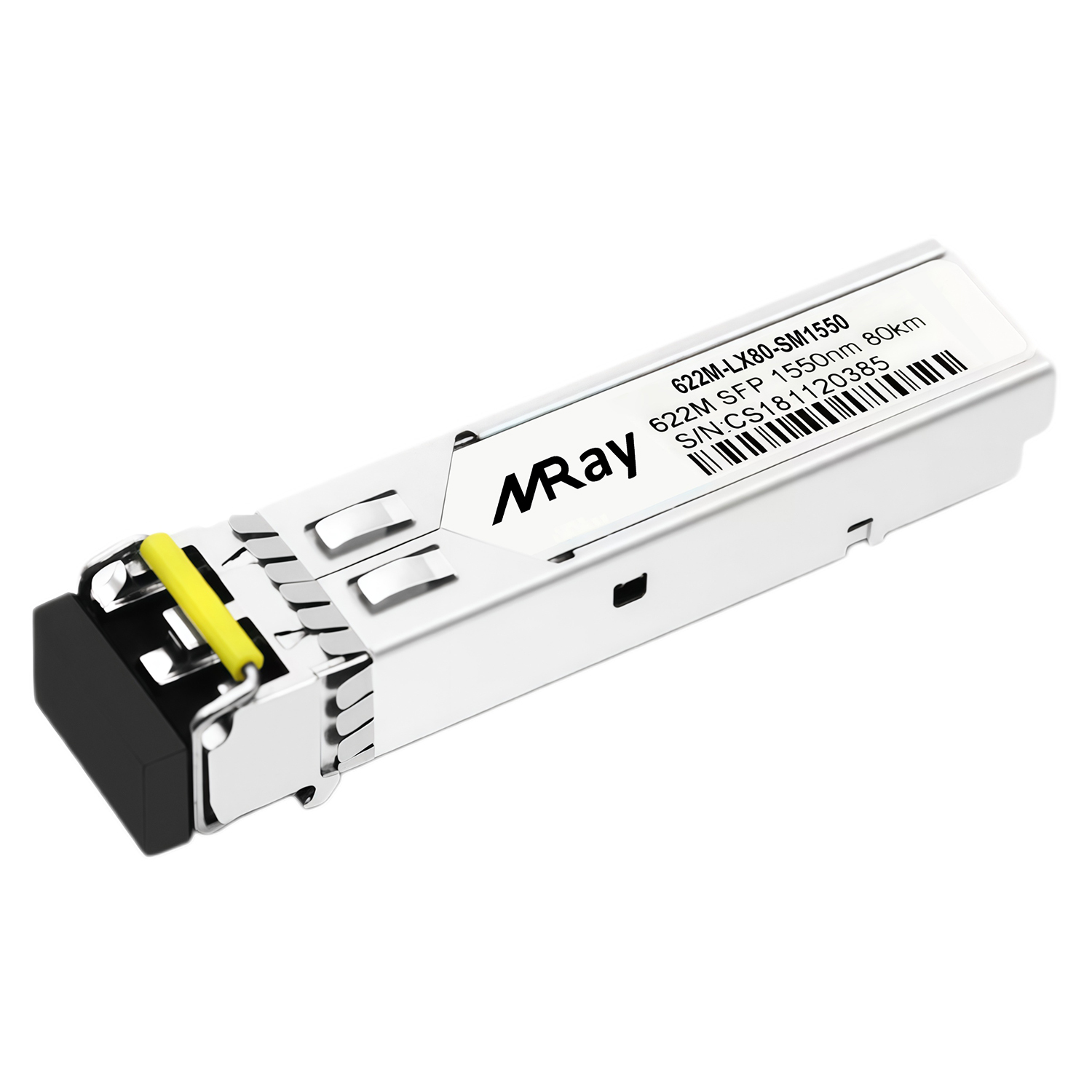

Miray’s 622M-LX80-SM1550 Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1550nm DFB laser, up to 25dB link budge ensure this module SONET OC-12/SDH STM-4 80Km application.
| Compatible OEM Part Number | SFP-OC12-LR2 | Optcore Part Number | 622M-LX80-SM1550 |
| Form Factor | SFP | Data Rate | 622 Mb/s |
| Wavelength | 1550 nm | Fiber Type | SMF |
| Max Distance | 80 km | Optical Components | DFB/PIN |
| Transmitter Power | -3 ~ 2 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -28 dBm | Receiver Overload | > -3 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | Fast Ethernet OC-3/STM-1 SDH/SONET OC-12/STM-4 SDH/SONET Other Optical Links |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
