◆ Description:

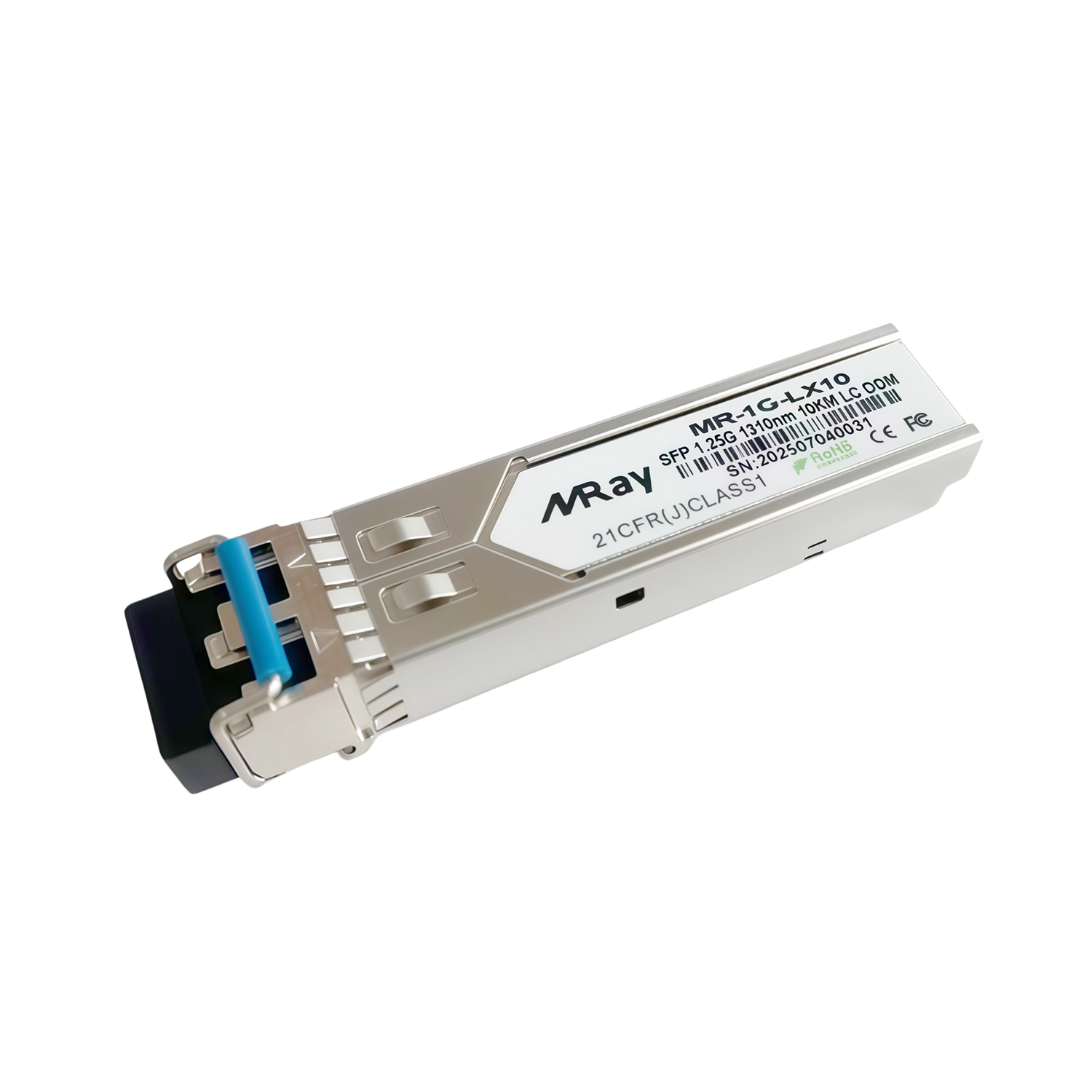

Miray’s GE-LX10-SM1310 Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 15dB link budge ensure this module 1000Base Ethernet 10km application.
Specifications
| Part No. | GE-LX10-SM1310 | Vendor Name | Miray |
| Form Factor | SFP | Max Data Rate | 1000Mbps |
| Wavelength | 1310nm | Max Cable Distance | 10km |
| Connector | LC duplex | Optical Components | FP 1310nm |
| Media | SMF | DOM Support | Yes |
| TX Power | -9 ~ -3dBm | Receiver Sensitivity | < -24dBm |
| Commercial Temperature Range | 0 to 70°C | Protocols | SFF-8472 MSA Compliant, IEEE 802.3ah-2004 |
