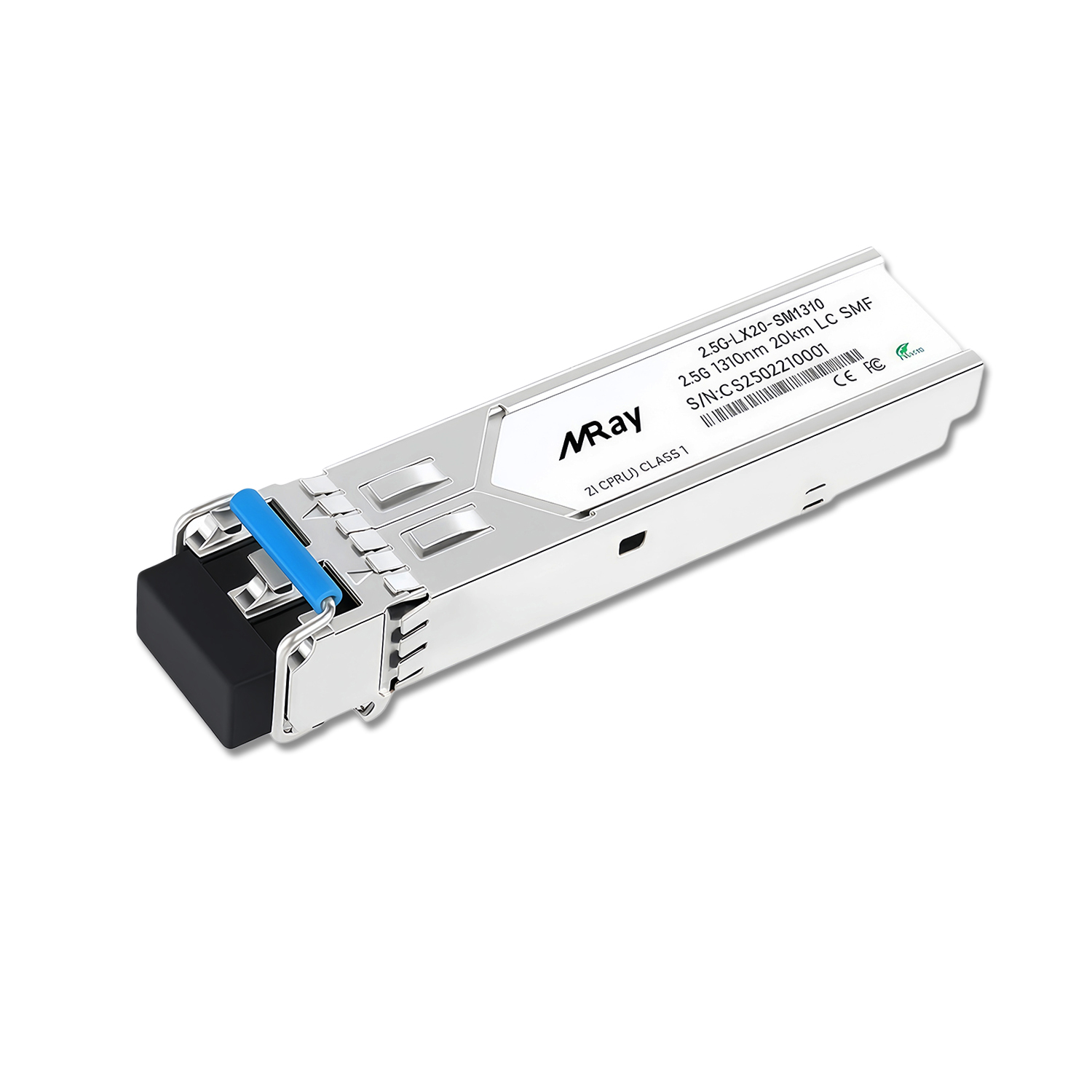

Miray’s 2.5G-LX20-SM1310 Transceivers are a high performance, cost effective module which have a duplex LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm DFB laser, up to 13dB link budge ensure this module SONET OC-48 / SDH STM -16 20km application.
Specifications
| Product Series | Fiber Optical Transceiver | Optcore Part Number | 2.5G-LX20-SM1310 |
| Form Factor | SFP (Mini-GBIC) | Data Rate | 2.5 Gb/s |
| Wavelength | 1310 nm | Fiber Type | SMF |
| Max Distance | 20 km | Optical Components | DFB/PIN |
| Transmitter Power | -5～0 dBm | Extinction ratio | > 8.2 dB |
| Receiver Sensitivity | < -19 dBm | Receiver Overload | > -3 dBm |
| Connector | Duplex LC | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application |
SDH STM-16 switches and routers SONET OC-48 switches and routers 2x Fibre Channel Other Optical Links |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
