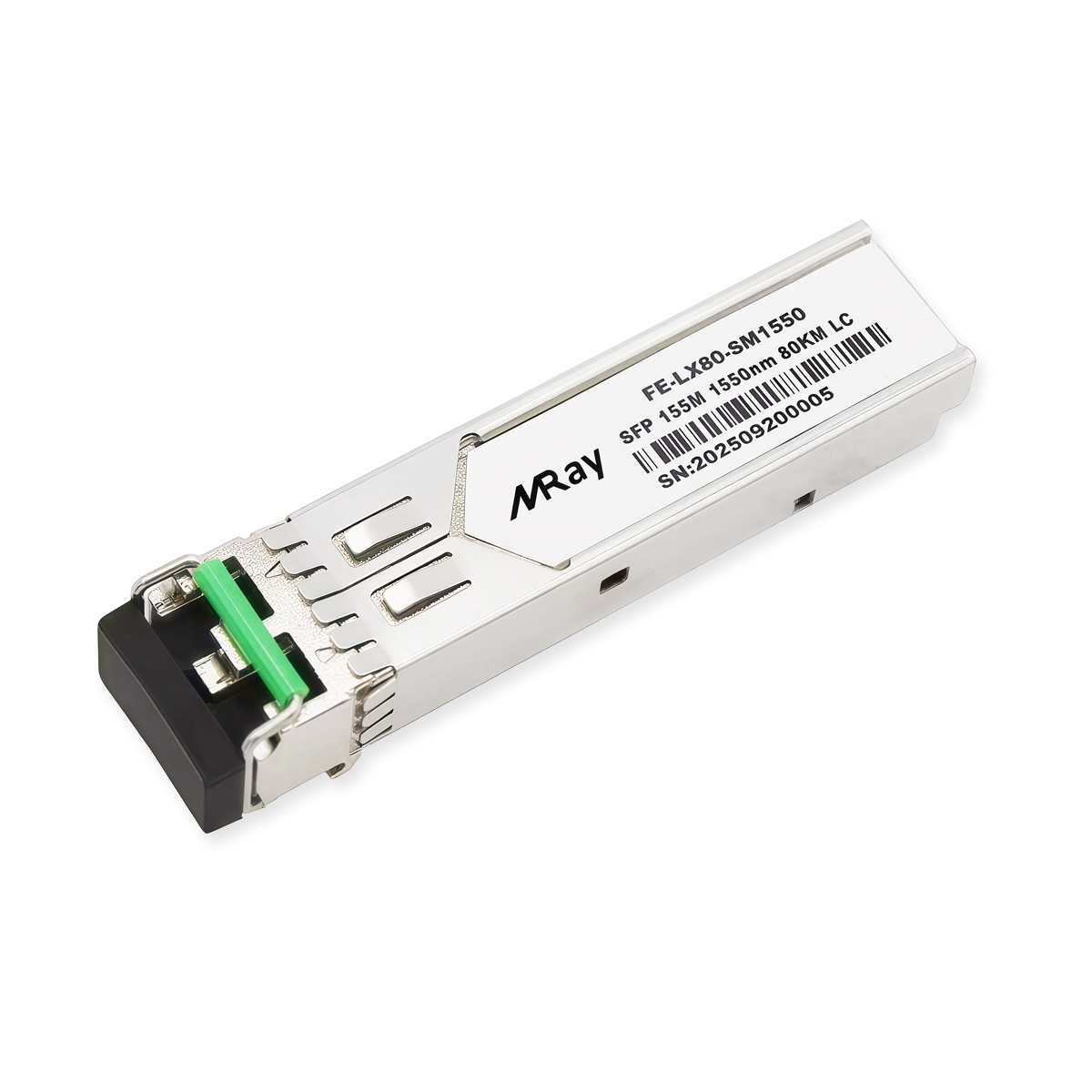

Miray’s FE-LX80-SM1550 Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1550nm DFB laser, up to 29dB link budge ensure this module SONET OC-3/SDH STM-1 80Km application.
| Part Number | FE-LX80-SM1550 | Compatible Brand | Cisco, Huawei, H3C |
| Form Factor | SFP | Data Rate | 155Mb/s |
| Wavelength | 1550 nm | Fiber Type | SMF |
| Max Distance | 80 km | Optical Components | DFB/PIN |
| Transmitter Power | -5 ~ 0 dBm | Extinction ratio | > 10 dB |
| Receiver Sensitivity | < -32 dBm | Receiver Overload | > -3 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | 100Base Fast Ethernet, SDH STM-1
SONET OC-3, FTTx |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
