◆ Description:

Miray GE-LX160-SM1550 Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1550 nm DFB laser, up to 34dB link budge ensure this module 1000Base Ethernet 160km application.

Long-Reach Fiber Connectivity for Demanding Network Links
This sfp module is built to extend a standard network switch or ethernet switch connection over long-distance single-mode fiber, supporting data links up to 1.25Gb/s and transmission distances up to 160 km on 9/125 µm SMF. With a 1550nm DFB laser transmitter, PIN receiver, duplex LC interface, and a link budget of up to 34dB, it delivers a practical solution for operators who need stable optical transport between remote sites, edge facilities, campus buildings, or industrial control rooms where copper is no longer suitable. For teams comparing options from optical transceiver manufacturers, this module provides a straightforward way to add long-reach fiber capability to infrastructure built by top network switch manufacturers and deployed across distributed systems.

Built for Reliable Operation, Monitoring, and System Integration
The transceiver supports hot-pluggable installation, single +3.3V power supply operation, and a power consumption ceiling of 1W, helping procurement teams and integrators manage deployment efficiency and operating costs. It also includes a monitoring interface compliant with SFF-8472, giving technicians the visibility needed for field checks, diagnostics, and ongoing maintenance in managed networks and plant environments. With industrial, extended, and commercial temperature versions available from -40°C to 85°C, -5°C to 85°C, or 0°C to 70°C, it is well suited to use in controlled facilities as well as harsher conditions where industrial ethernet switch manufacturers, panel builders, and service teams require dependable transceiver performance across a wide range of operating environments.

Practical Fit for Ethernet, PoE, and Remote Infrastructure Projects
For buyers sourcing parts for an ethernet switch, poe switch, or multi-site network switch deployment, this transceiver offers a cost-effective path to long-distance fiber connectivity without unnecessary complexity. RoHS compliance and lead-free construction support procurement requirements for regulated projects, while the industrial-focused design makes it a sensible choice for utilities, campuses, transportation systems, and factory networks that depend on consistent optical links. Whether the application is expanding a backbone, connecting remote cabinets, or upgrading a legacy transport segment, this transceiver gives teams a dependable option for 1000Base-ZX coverage where long reach and stable optical performance are the main priorities.

Key Advantages

Stable Long-Distance Optical Link
This sfp module is built for 1000BASE-ZX connections over up to 160 km on 9/125 μm SMF, which gives network teams a practical way to extend an ethernet switch link across remote sites without changing the basic network design. The 1550 nm DFB laser, PIN receiver, and DOM support help maintain predictable signal performance, while the single +3.3V supply and hot-pluggable design make field replacement simpler for operators who need dependable uptime.

Industrial-Focused Compatibility and Maintenance
For buyers working with industrial ethernet switch manufacturers, optical transceiver manufacturers, and top network switch manufacturers, this transceiver offers a structured fit with standard LC duplex interfaces and SFF-8472 monitoring. Its RoHS-compliant, lead-free build and industrial, extended, and commercial temperature versions support stable deployment in different environments, which makes it a practical choice for network switch, poe switch, and long-reach transceiver applications where serviceability matters.

Use Scenarios

Inter-Site Network Extension
In campuses, utility yards, or distributed facilities where one ethernet switch must connect to another over long fiber runs, this module serves as the optical link between buildings or remote equipment rooms. Teams that need to move data across up to 160 km can use it to solve distance limits that standard short-reach optics cannot handle, and its 1550 nm single-mode design is well-suited to this type of long-haul transport.

Industrial Equipment Integration
In control rooms, plant networks, and OEM system builds where poe switch and network switch platforms must operate under varied temperature conditions, this transceiver helps maintain a stable fiber uplink for monitoring or control traffic. It fits the needs of panel builders, contractors, and procurement teams that require a reliable transceiver for industrial installations, because its hot-pluggable format and DOM support make installation, replacement, and status checking more practical during maintenance windows.

FAQ

Q1. What network applications is this transceiver suitable for?
It is designed for 1.25Gb/s Ethernet links and supports up to 160 km on 9/125 µm SMF, which makes it well-suited for long-reach ethernet switch and network switch deployments. Our module uses a duplex LC interface and a 1550 nm DFB laser for stable optical transmission.

Q2. Is this module compatible with Cisco equipment and standard SFP ports?
Yes, this is a Cisco compatible sfp module with a hot-pluggable design for standard SFP slots. We build it for use with compatible switch platforms, including systems supplied by top network switch manufacturers, while integration should always follow the host device specifications.

Q3. What power and monitoring features does it include?
The unit operates from a single +3.3V power supply and includes a monitoring interface compliant with SFF-8472. Our design supports standard diagnostic visibility for deployment teams, helping operators verify module status during installation and ongoing maintenance.

Q4. Can it be used in industrial environments with wider temperature requirements?
The available versions cover industrial, extended, and commercial operating ranges: -40°C to 85°C, -5°C to 85°C, or 0°C to 70°C. We recommend selecting the version that matches the enclosure and ambient conditions used by industrial ethernet switch manufacturers and system integrators.

Q5. What optical and electrical characteristics should buyers review before integration?
Our transceiver uses a PIN receiver, AC-coupled CML high-speed signaling, and LVTTL control and monitor signals. It is also RoHS compliant and lead free, with a maximum power consumption of 1W. These specifications help procurement teams and engineers confirm fit for poe switch and transceiver installations.

Applications

1000Base-ZX Ethernet
Metro/Access Networks
1×FibreChannel
Other Optical Links

Specifications

Part Number	GE-LX160-SM	Vendor Name	Miray
Form Factor	SFP	Data Rate	1.25Gbps
Wavelength	1550nm	Distance	160km
Connector	LC Duplex	Cable Type	OS2 SMF
Transmitter Type	DFB	Receiver Type	PIN
TX Power	2 ~ 6dBm	Receiver Sensitivity	< -34dBm
Power Consumption	< 1W	Modulation Format	NRZ
DDM	Support	Bit Error Ratio (BER)	10^-12
Protocols	SFF-8472 MSA Compliant, IEEE 802.3ah-2004	Commercial Temperature Range	0 to 70°C

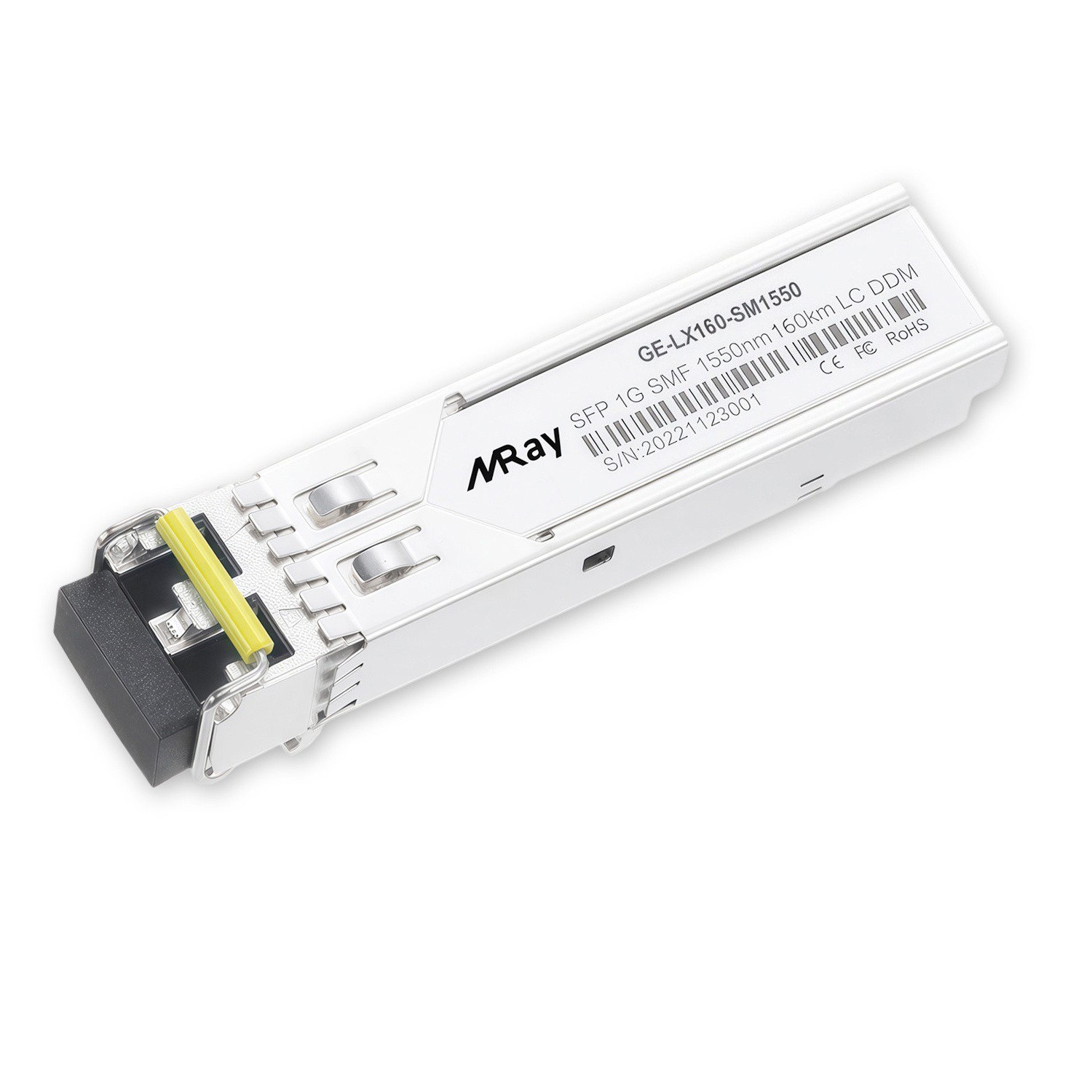

Cisco Compatible 1.25Gb/s 1000BASE-ZX SFP 1550nm 160km DOM LC SMF Transceiver
