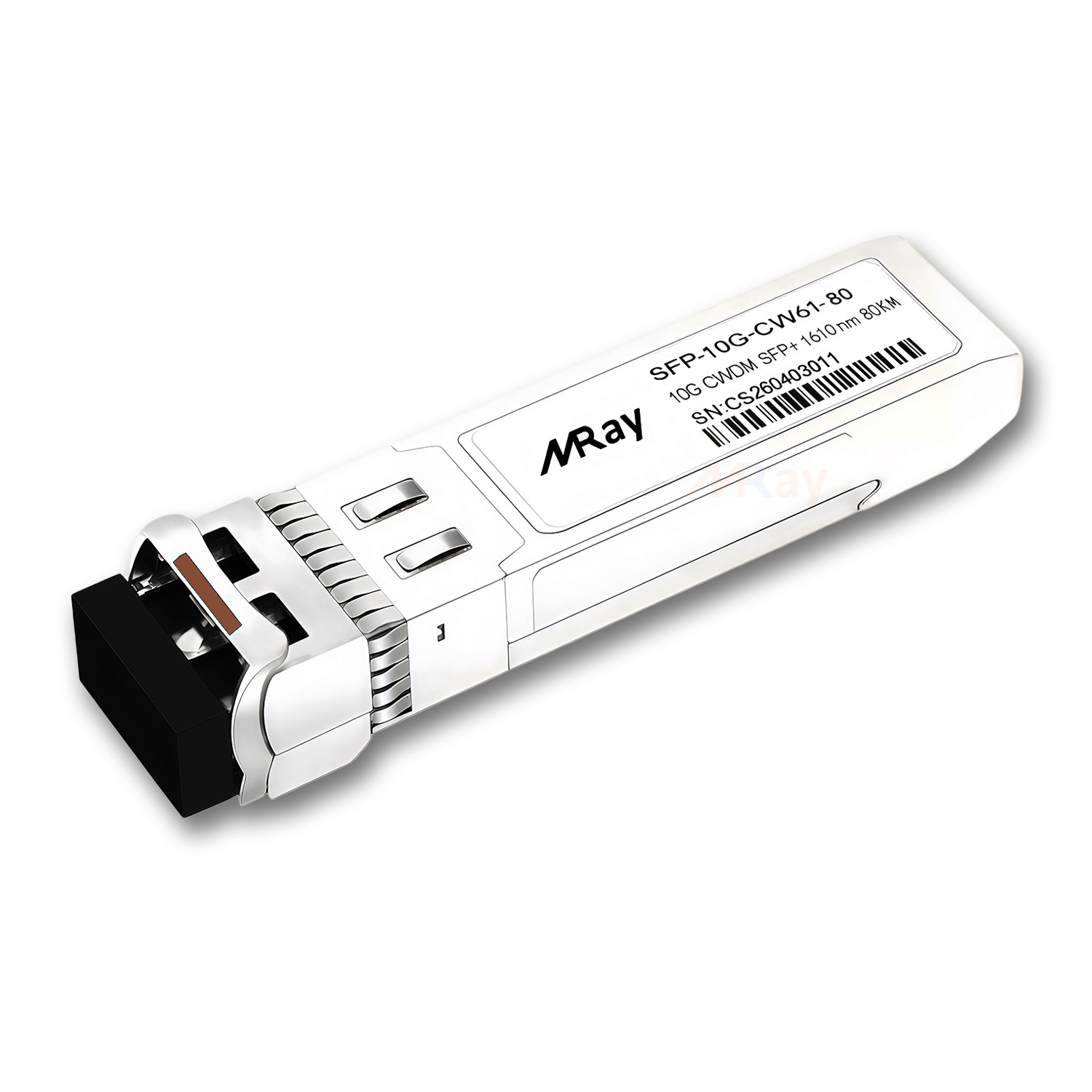

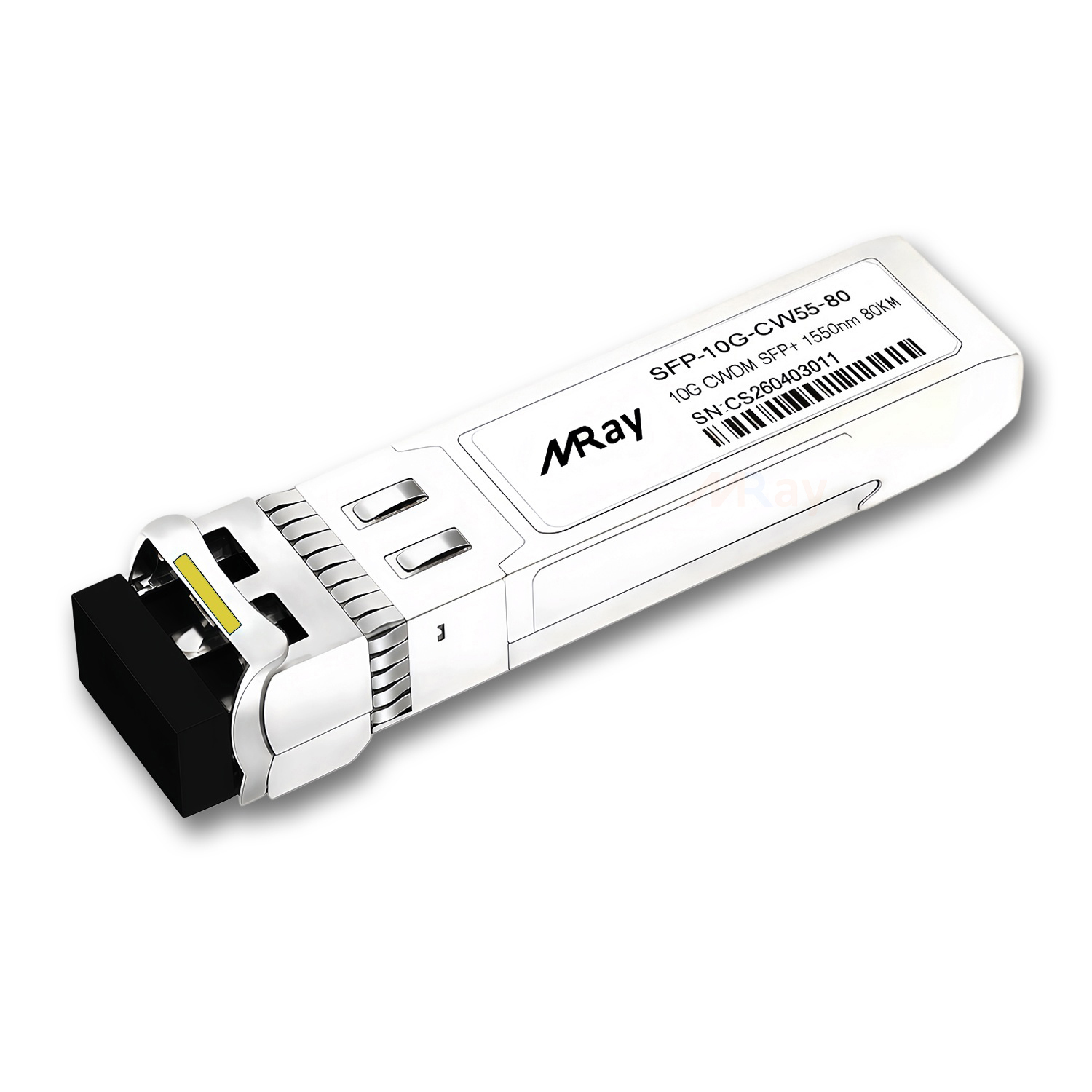

Designed for high-speed 10-Gigabit Ethernet data transmission, this Cisco Compatible 10GBASE-CWDM SFP+ module targets enterprises and network integrators requiring reliable long-distance connectivity. As a precision optical transceiver, it enables seamless integration into existing Cisco-compatible systems and supports single-mode fiber infrastructure commonly deployed in backbone and metropolitan networks. The optical transceiver manufacturer ensures adherence to industry standards, providing compatibility with various network devices, thereby fulfilling the demands of data centers, telecom operators, and large-scale enterprises seeking scalable and maintainable optical solutions.
This optical transceiver delivers a stable 10.5 Gb/s data rate over single-mode fiber, covering wavelengths between 1470nm and 1610nm, enabling broad CWDM channel support. It features an EML transmitter with an APD receiver, achieving distances up to 80 kilometers while maintaining low power consumption under 1.5 watts. The module includes a digital diagnostic monitoring (DOM) interface compatible with IEEE 802.3ae and SFF-8472 standards, providing real-time visibility into temperature, optical power levels, and voltage. These measurable specifications ensure reliable signal integrity and system health monitoring crucial for network optimization and maintenance as provided by reputable optical transceiver manufacturers.
The design of this optical transceiver addresses the rigorous performance and reliability demands of telecommunications infrastructure and data center interconnects. It supports long-haul 10G Ethernet backbones, metropolitan area networks (MANs), and wide area networks (WANs), facilitating carrier-grade connectivity. optical transceiver suppliers recommend this module for scenarios requiring scalability, interoperability, and compliance with regulatory standards such as RoHS and IEC certifications. By enabling extended reach and stable connections, it enhances enterprise network architecture and telecommunication system robustness, delivering real-world value in high-capacity, latency-sensitive environments.
The module’s hot-pluggable SFP+ footprint and duplex LC connector simplify installation and replacement, enabling modularity favored by optical transceiver manufacturers focusing on system adaptability. Its compact design conforms to stringent mechanical and environmental standards, ensuring compatibility with multiple Cisco-compatible devices and network equipment. The carefully engineered optical transceiver structure enhances maintainability and reduces operational downtime, empowering optical transceiver suppliers to provide scalable solutions without disrupting existing infrastructure. This design allows for straightforward network upgrades and expansions with minimal footprint impact.
Performance-centric, the transceiver maintains low power consumption while delivering high-speed data throughput, directly supporting network efficiency goals prioritized by optical transceiver manufacturers. The inclusion of DOM enables precise real-time diagnostics, facilitating proactive maintenance and reducing mean time to repair (MTTR) for network administrators. The product's robustness across a wide operating temperature range ensures consistent behavior in varied environments. By combining usability with technical reliability, this optical transceiver maximizes return on investment and enhances overall network resilience for enterprise users and telecom operators alike.
Every fiber optic transceiver is thoroughly tested by the Miray Assurance Program, which is equipped with the world’s most advanced analytical equipment to ensure that our transceivers meet the industry’s international public protocol standards while still functioning flawlessly in your facility.
Eye Pattern Test: A high-speed oscilloscope is used to capture the optical signal output from a transceiver to form an eye diagram. It is used to assess the quality of the transceiver signal and determine the quality of the signal.
High and Low Temperature Test: The transceiver was placed in a high and low temperature control box to evaluate the signal quality of the transceiver and the degree to which the transceiver device was subjected to stress at temperatures ranging from -40°C to +85°C.
Aging Test: The transceiver is subjected to high and low temperature cycling environments (-40°C to +85°C) for more than 72 hours of continuous power-on operation to screen for early failure modules through accelerated aging and improve product reliability.
BER Test: A pseudo-random code pattern is sent using a bit error recorder (BERT), transmitted and received through a transceiver to quantify the accuracy of the transmission of the optical module at a certain bit error rate.

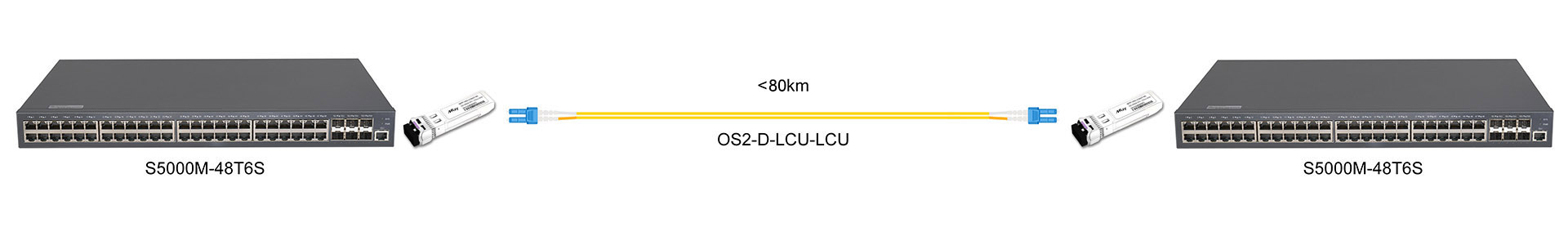

In telecommunications and large-scale enterprise environments, this optical transceiver plays a critical role in extending 10G Ethernet links across distances up to 80 km via single-mode fiber. Its wide CWDM wavelength range allows efficient channel allocation, reducing interference and maximizing fiber utilization. The module’s compatibility with Cisco systems ensures straightforward deployment in existing network topologies, facilitating backbone and inter-city link implementations. optical transceiver suppliers rely on its high signal integrity and DOM compliance to deliver proactive monitoring and uninterrupted operation essential for carrier-class network performance.
Within metropolitan area networks, where high data throughput and low latency are mandatory, this optical transceiver module supports scalable node interconnections across urban data centers and telecom hubs. Its low power consumption and hot-pluggable design facilitate rapid system upgrades and maintenance. Compliant with IEEE and RoHS standards, it meets regulatory requirements while providing enhanced reliability in dense network environments. optical transceiver manufacturers position this solution to optimize fiber infrastructure investment, allowing customers to achieve reliable and efficient data interchange over city-wide optical networks.
Eye Diagram Testing
Bit Error Rate (BER) Test
Optical Spectrum Test
Hardware Compatibility Test: Install the transceiver on the switch, router, server, and NIC device in real time: 1. Ensure that the transceiver can be installed or uninstalled smoothly. 2. Verify that the transceiver is compatible with different brands of devices and fiber optic patch cords. 3. Verify that the transceiver restores the link connection normally after the device is rebooted.
Software Compatibility Test: Check if the transceiver can be recognised properly by each brand of switch, NIC, server, and that no error logs are popping up from the switch. The transceiver information recognised by the device is consistent with the transceiver label description.
We use advanced quality management solutions. The four-fold quality firewall system (self-inspection-IPQC-OQC-OBA) effectively eliminates the flow of bad products into the market.
Visual inspection: 100% visual inspection of transceivers by production employees.
Microscopic examination: Using a 20x and 200x microscope, respectively, examine the electronics on the transceiver.
IPQC: During the production process, semi-finished products of important processes are fully IPQC inspected to ensure that there are no potential abnormalities in the transceiver production process.
OQC: OQC inspects the transceivers after production before they are sent to the warehouse and freezes the entire batch if abnormalities are found to ensure that the abnormal products do not reach the market.
OBA: For the products ordered by customers, OBA inspection is carried out on the products after relevant functional tests and product packaging to ensure that the products are in line with the customer’s requirements.
| Compatible Brand | Cisco, HP, Huawei, Juniper... | Model Number | SFP-10G-CW47-80 |
| Form Factor | CWDM SFP+ | Data Rate | 10.5 Gb/s |
| Wavelength | 1470~1610 nm | Fiber Type | SMF |
| Max Distance | 80 km | Optical Components | CWDM EML/APD |
| Transmitter Power | 0 ~ 5 dBm | Extinction ratio | > 7 dB |
| Receiver Sensitivity | < -24 dBm | Receiver Overload | > -7 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.025 kg |
| Application | 10GBASE-ZR/10GBASE-ZW Ethernet10G Fiber Channel
10GbE Data Center Switches and Routers Other CWDM transmission |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
