◆ Description:

Miray GE-LX120-SM1550 Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1550 nm DFB laser, up to 32dB link budge ensure this module 1000Base Ethernet 160km application.

Long-Reach Fiber Connectivity for Professional Networks
The Aruba Compatible 1.25Gb/s 1000BASE-ZX SFP 1550nm 120km DOM LC SMF Transceiver Module is built to give network teams a dependable way to extend Ethernet links over long-distance single-mode fiber without sacrificing stability or manageability. As an Aruba-compatible sfp module, it supports 1.25Gb/s data links and is designed for use in demanding switch environments where long-haul connectivity is required between sites, buildings, or remote cabinets. Buyers looking for practical options from optical transceiver manufacturers will value the LC duplex interface, hot-pluggable design, and DOM support, which help simplify deployment and ongoing monitoring in a network switch infrastructure.

Proven Specifications for System Integration
This module uses a 1550nm DFB laser transmitter and a PIN receiver, with support for up to 120 km on 9/125 μm SMF, making it well suited for extended-reach Ethernet applications where link budget matters. The product is compliant with SFF-8472 and includes a single +3.3V power supply plus a monitoring interface, giving operators the visibility needed for maintenance and performance checks. With a maximum power draw of 1W and versions available for industrial, extended, and commercial temperature ranges, it fits a wide range of deployment conditions used by industrial ethernet switch manufacturers, top network switch manufacturers, and procurement teams selecting reliable optics for an ethernet switch or poe switch setup.

Application Value for Network Builders and Resellers
For installers, distributors, and system integrators, this transceiver offers a practical way to support long-distance Ethernet projects where compatibility, durability, and specification matching are essential. It is RoHS compliant and lead free, which supports responsible sourcing and broad deployment requirements across enterprise, industrial, and infrastructure networks. Whether the need is to extend a backbone link, connect remote facilities, or stock a trusted replacement part for a transceiver portfolio, this module provides a dependable fit for buyers serving customers who need stable optical connectivity in real-world network switch environments.

Key Advantages

Reliable Long-Distance Optical Link
This sfp module supports up to 1.25Gb/s data links and reaches up to 120 km on 9/125 μm SMF, which makes it a practical choice for teams that need stable transmission over extended runs. The 1550 nm DFB laser and PIN receiver are designed to keep signal performance consistent, while DOM support helps maintenance teams monitor module status and plan service before link issues affect an ethernet switch or network switch deployment.

Industrial-Ready Compatibility and Maintenance Convenience
The module follows SFF-8472 monitoring interface requirements, uses a single +3.3V power supply, and offers hot-pluggable operation, which simplifies installation and replacement in managed networks. With industrial, extended, and commercial temperature options plus RoHS-compliant, lead-free construction, it is well-suited for industrial ethernet switch manufacturers, optical transceiver manufacturers, and top network switch manufacturers that need a stable transceiver for systems including poe switch platforms.

Use Scenarios

Factory and Plant Network Uplinks
In factories, warehouses, and utility sites, network equipment may be installed across large areas where copper cabling is not practical for the full distance. In these environments, this transceiver can connect an ethernet switch to remote control cabinets or edge devices over single-mode fiber, helping operators maintain data links between production equipment, monitoring systems, and central switches with the reach needed for long plant runs.

Provider and System Integration Projects
For system integrators and procurement teams building fiber-based access or backhaul links, the main need is a transceiver that fits existing switch hardware and remains dependable during service. This module is well-suited for use in network switch deployments where stable optical transmission, hot-swap replacement, and DOM monitoring reduce downtime, especially in projects assembled by industrial ethernet switch manufacturers or teams working with optical transceiver manufacturers.

FAQ

Q1. What link distance and data rate does this SFP module support?
The module supports up to 1.25Gb/s data links and is specified for up to 120 km over 9/125 μm SMF. It uses a 1550 nm DFB laser transmitter and duplex LC optics, making it well-suited for long-reach sfp module deployments in fiber network builds.

Q2. Is this transceiver compatible with my network switch?
It is an Aruba compatible transceiver for use where this optical form factor and specification match the port requirements. For integration into an ethernet switch or network switch, our team recommends confirming the host port, link speed, and fiber type before installation.

Q3. What power and monitoring features are included?
The unit operates from a single +3.3V power supply and includes a monitoring interface compliant with SFF-8472. Our documentation supports practical diagnostics for operators and procurement teams that need visibility into module status during system validation and maintenance.

Q4. What operating environments can it be used in?
Version options are available for industrial, extended, and commercial temperature ranges: -40°C to 85°C, -5°C to 85°C, and 0°C to 70°C. This makes it suitable for defined deployment conditions often specified by industrial ethernet switch manufacturers and system integrators.

Q5. Does it meet material and installation requirements for industrial projects?
Yes, it is hot-pluggable, RoHS compliant, and lead free, with a maximum power rating of 1W. We provide a practical option for plant engineers and resellers sourcing fiber components from optical transceiver manufacturers for stable poe switch and switch-based applications.

Applications

1000Base-ZX Ethernet
Metro/Access Networks
1×FibreChannel
Other Optical Links

Specifications

Part Number	GE-LX160-SM	Vendor Name	Miray
Form Factor	SFP	Data Rate	1.25Gbps
Wavelength	1550nm	Distance	120km
Connector	LC Duplex	Cable Type	OS2 SMF
Transmitter Type	DFB	Receiver Type	PIN
TX Power	0 ~ 5dBm	Receiver Sensitivity	< -32dBm
Power Consumption	< 1W	Modulation Format	NRZ
DDM	Support	Bit Error Ratio (BER)	10^-12
Protocols	SFF-8472 MSA Compliant, IEEE 802.3ah-2004	Commercial Temperature Range	0 to 70°C

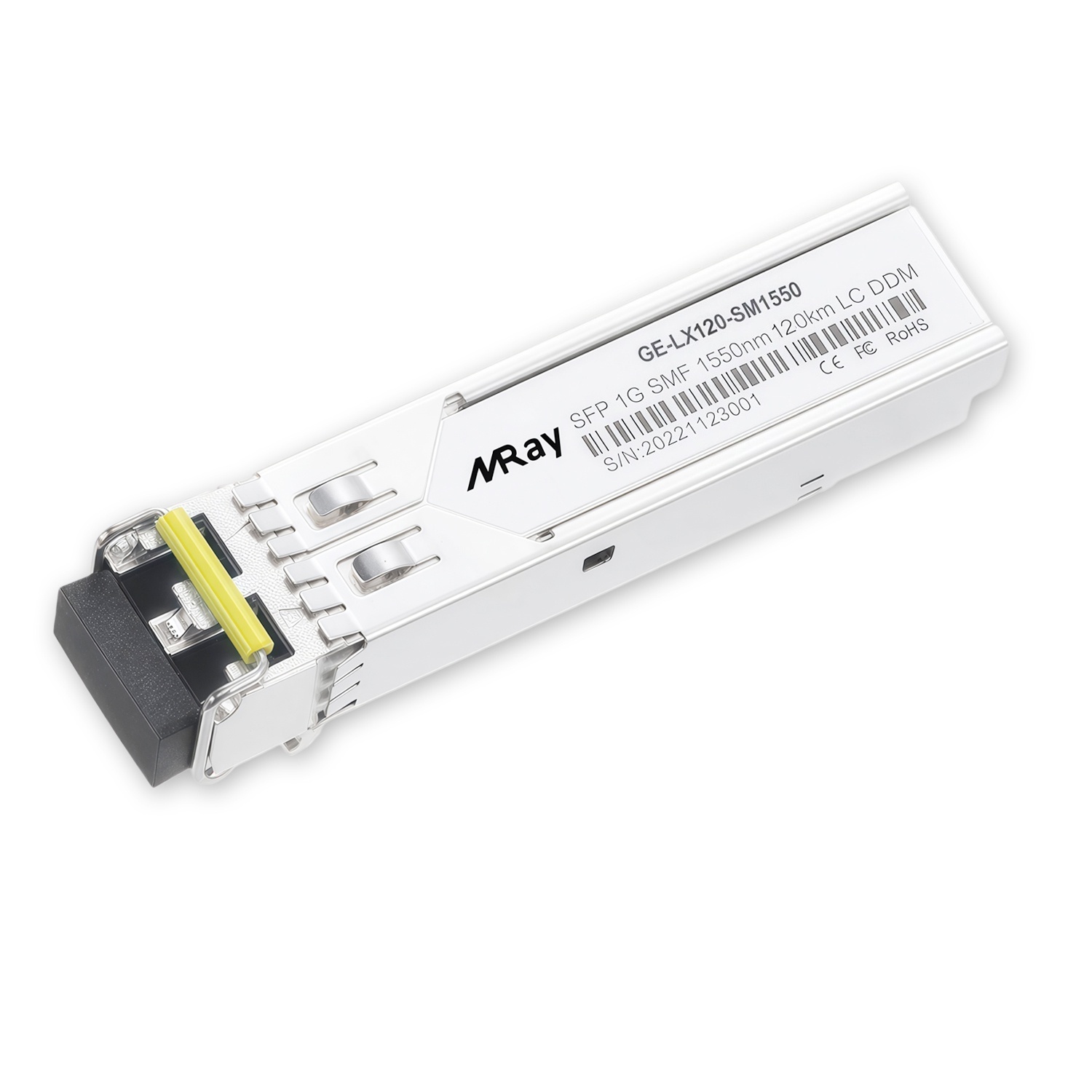

Aruba Compatible 1.25Gb/s 1000BASE-ZX SFP 1550nm 120km DOM LC SMF Transceiver Module
