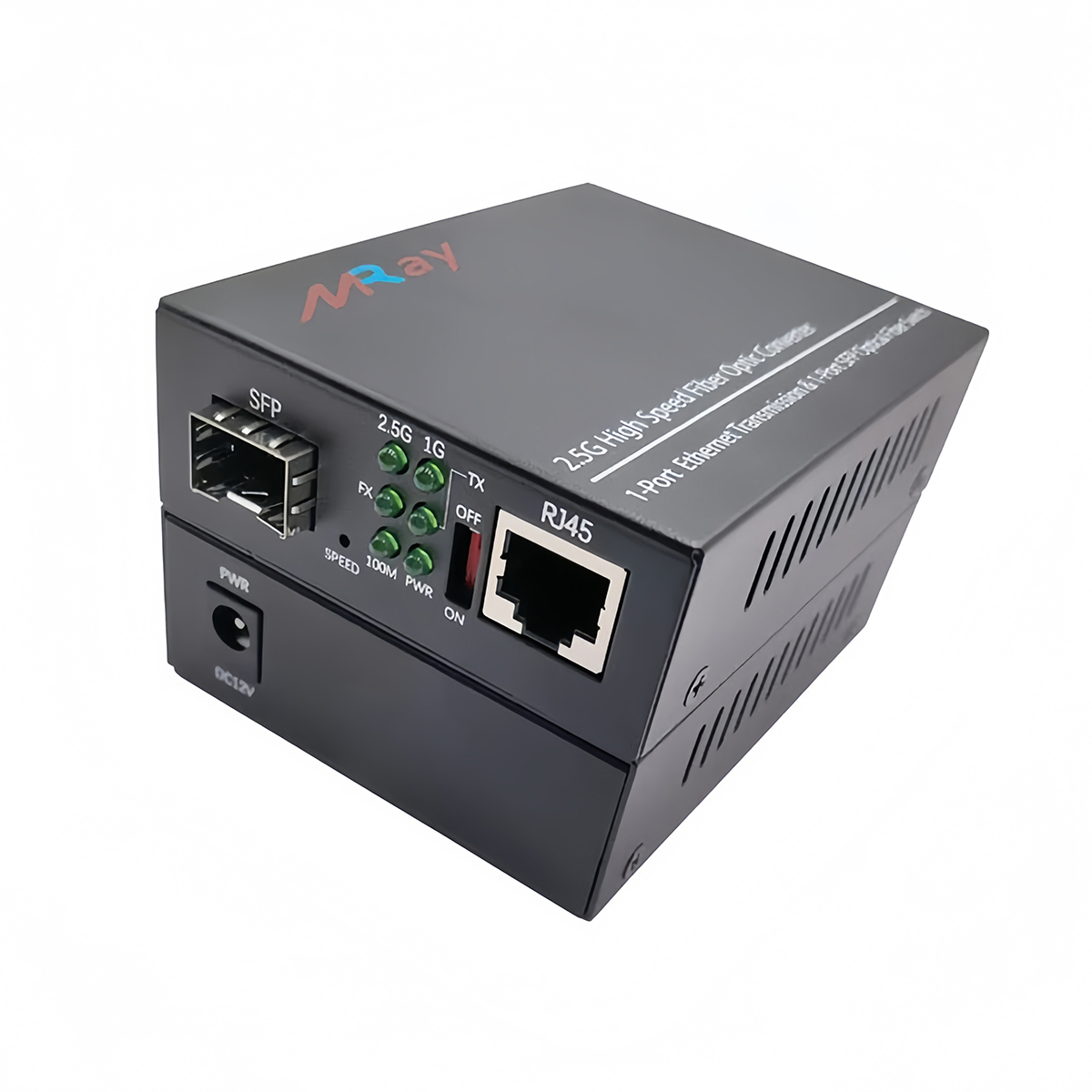

Name: 2.5G SFP to RJ45 Fiber Media Converter XPON SFP Stick Module GPON/EPON Bridge Mode ONU Fiber Optic Transceiver
Brand: Miray
SKU: MR-1001-2.5G-SFP
Availability: InStock
Rating: 5 (1 reviews)

Miray 2.5G optical fiber transceiver is a kind of photoelectric converter switching between Ethernet electrical signals and photoelectric signals. Users can choose different models of optical modules according to their needs, which can realize the seamless connection between the optical signals of 100 / 1000M / 2.5G Ethernet and electrical signals.It not only extends the transmission distance, but also has the advantages of isolation protection, good data confidentiality, stable work, easy maintenance and so on.

The 2.5g media converter transceiver is compatible with a wide range of brand names, including NOKIA, HUAWEI, ODI, and more. It works with 2.5G/1G GPON SFP ONU STICKs, such as the 5671A and G-010S-P.

2.5G Ethernet to Fiber Conversion for Reliable Network Expansion
This 2.5G SFP to RJ45 fiber media converter is built to bridge Ethernet electrical signals and optical signals, helping buyers extend network reach while keeping data transmission stable and protected. It supports interconversion between 100M / 1G / 2.5G Base-T and 2.5G Base-SX / LX, making it a practical fit for modern ethernet switch deployments, network switch upgrades, and mixed-speed access environments. For procurement teams, system integrators, and operators working with sfp module based links, the unit offers a clear way to connect fiber and copper infrastructure without replacing the whole network stack.

Adaptive Speed, Link Status, and Broad Compatibility
The converter includes one full-duplex 2.5Gbps optical port and one 100M / 1G / 2.5G adaptive electrical port, with rate adaptation, MDI / MDI-X adaptation, and full / half-duplex adaptation to reduce setup friction in real installations. It also provides complete connection and active-status indicators for both optical and electrical links, helping technicians verify operation quickly during commissioning and maintenance. With support for single-mode and multimode fiber, plus single-fiber and dual-fiber operation, it is well suited to optical transceiver manufacturers, industrial ethernet switch manufacturers, and teams selecting an transceiver for flexible deployment across different network layouts.

Practical Fit for ISP, Access, and Equipment Integration Scenarios
Designed for stable work, isolation protection, and easier maintenance, this module suits access networks, enterprise uplinks, and fiber-to-copper bridging where reliability matters more than complexity. Support for QoS helps keep packet transmission organized, which is valuable in environments using a poe switch, an ethernet switch, or a broader network switch architecture that needs consistent forwarding behavior. It is also relevant for OEMs, distributors, and panel builders looking for a compact sfp module style solution that supports GPON/EPON bridge mode ONU integration and dependable field deployment.

Key Advantages

Flexible Link Conversion and Broad Compatibility
This sfp module converts 100M, 1G, and 2.5G Base-T electrical links to 2.5G Base-SX/LX optical links, which gives system integrators and procurement teams a practical way to match mixed network environments without redesigning the whole ethernet switch or network switch setup. Its adaptive support for rate, MDI/MDI-X, and full or half duplex helps reduce setup issues during deployment, while the optical port options for single mode, multimode, single fiber, and dual fiber make it better suited to different infrastructure plans used by optical transceiver manufacturers and industrial ethernet switch manufacturers.

Stable Operation and Easier Maintenance
The module provides clear optical and electrical link status indicators, which helps operators check connection state quickly and shortens fault location time during routine maintenance. Its support for QoS helps protect packet transmission quality in environments where stable data flow matters, and the fiber-based link design adds isolation protection and better data confidentiality than a direct copper-only connection. For plant engineers, contractors, and distributors working with poe switch systems or other access equipment, this makes the transceiver a practical choice when stable operation and serviceability are important.

Use Scenarios

Factory Access Network Expansion
In a factory or workshop environment, operators often need to connect an existing copper-based ethernet switch to an upstream fiber backbone when the cable distance exceeds normal twisted-pair limits. This transceiver acts as the bridge between electrical and optical signals, allowing the local device to communicate over 100M, 1G, or 2.5G links while keeping transmission stable across longer runs. Its adaptive link support and status indicators make it well-suited to maintenance teams that need reliable network access without frequent reconfiguration.

Equipment Room and Network Integration Projects

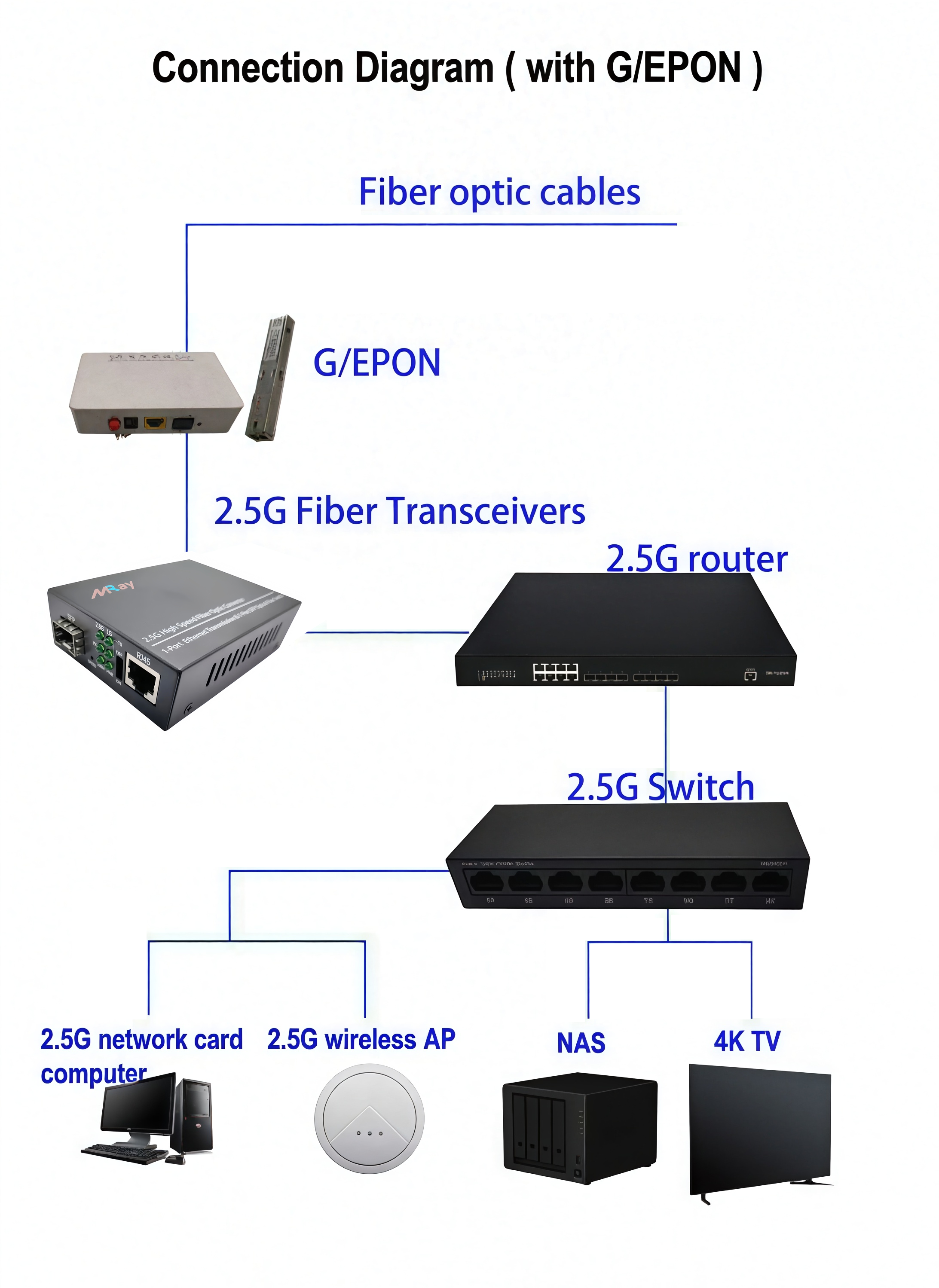

In equipment rooms, telecom closets, and access network cabinets, procurement teams and system integrators often need a compact way to connect mixed-speed devices from different vendors. This module can be used alongside a poe switch or other network switch equipment to convert copper ports into fiber uplinks for stations, surveillance nodes, or building networks where distance and isolation are important. Because it supports common optical formats and practical link monitoring, it fits projects managed by top network switch manufacturers and installers who need a stable interface for field deployment.

FAQ

Q1. What Ethernet rates does this converter support?
It supports interconversion between 100M / 1G / 2.5G Base-T and 2.5G Base-SX / LX. The unit includes one full-duplex 2.5Gbps optical port and one 100M / 1G / 2.5G adaptive electrical port, making it well-suited for ethernet switch and network switch integration.

Q2. Can it work with different cable and duplex settings?
Yes, it supports 100M / 1G / 2.5G rate adaptation, MDI / MDI-X adaptation, and full / half-duplex adaptation. That flexibility helps our users connect it to mixed network environments without manual matching of every link parameter.

Q3. What optical link types are supported?
The optical port supports single mode or multimode operation, as well as single fiber and double fiber configurations. We offer this structure so operators can select the optical module type that matches the deployment requirement and the existing fiber plant.

Q4. How do I check whether the links are active?
Both the optical link and the electrical link have complete connection and active status indicator lights. This gives technicians a straightforward way to verify link state during installation, maintenance, and troubleshooting without additional test tools.

Q5. Is this suitable for use with XPON bridge mode ONU setups?
Yes, it is positioned as an XPON SFP stick module for GPON/EPON bridge mode ONU applications. We designed it for photoelectric conversion and Ethernet extension, and it also supports QoS to help protect packet transmission in practical network environments.

Model		MR-1001-2.5G-SFP
Port	10M/100M/1G/2.5G RJ45	1
	2.5G FX port	1
Performance	Storage and Forward	Support
	Bandwidth / MAC	2G / 8K
Working Environment		Working Temp.：-20℃～75℃
		Storage Temp.：-40℃～85℃
		Working Humidity：10%～90% RH non-condensing
		Storage Humidity：5%～90% RH non-condensing
Input Power		12V1A
Standards and Protocols		IEEE 802.3 Ethernet Ethernet MAC protocol
		IEEE 802.3i 10BASE-T
		IEEE 802.3u 100BASE-TX
		IEEE 802.3x 1000BASE-TX
Default Function		2.5G FX Port，auto-adaption Electrial Port
DIP Switch Function		OFF：Dip Switch Up means OFF，FX port is 2.5G，Electrical Port: auto-adapterion 100M/1000M/2.5G ON：Dip Switch Down means ON，FX port is 1G，Electrical Port: 1G，SPEED light on




Network Media		100Base-T: 2 pairs Cat3 and above UTP/STP(≤100m)
		1000 Base-TX: 2 pairs Cat6 and above UTP/STP(≤100m)
		2500 Base-TX: 2 pairs Cat6 and above UTP/STP(≤30m)
Physical Specifications		Size：95mm70mm25mm（LWH）
