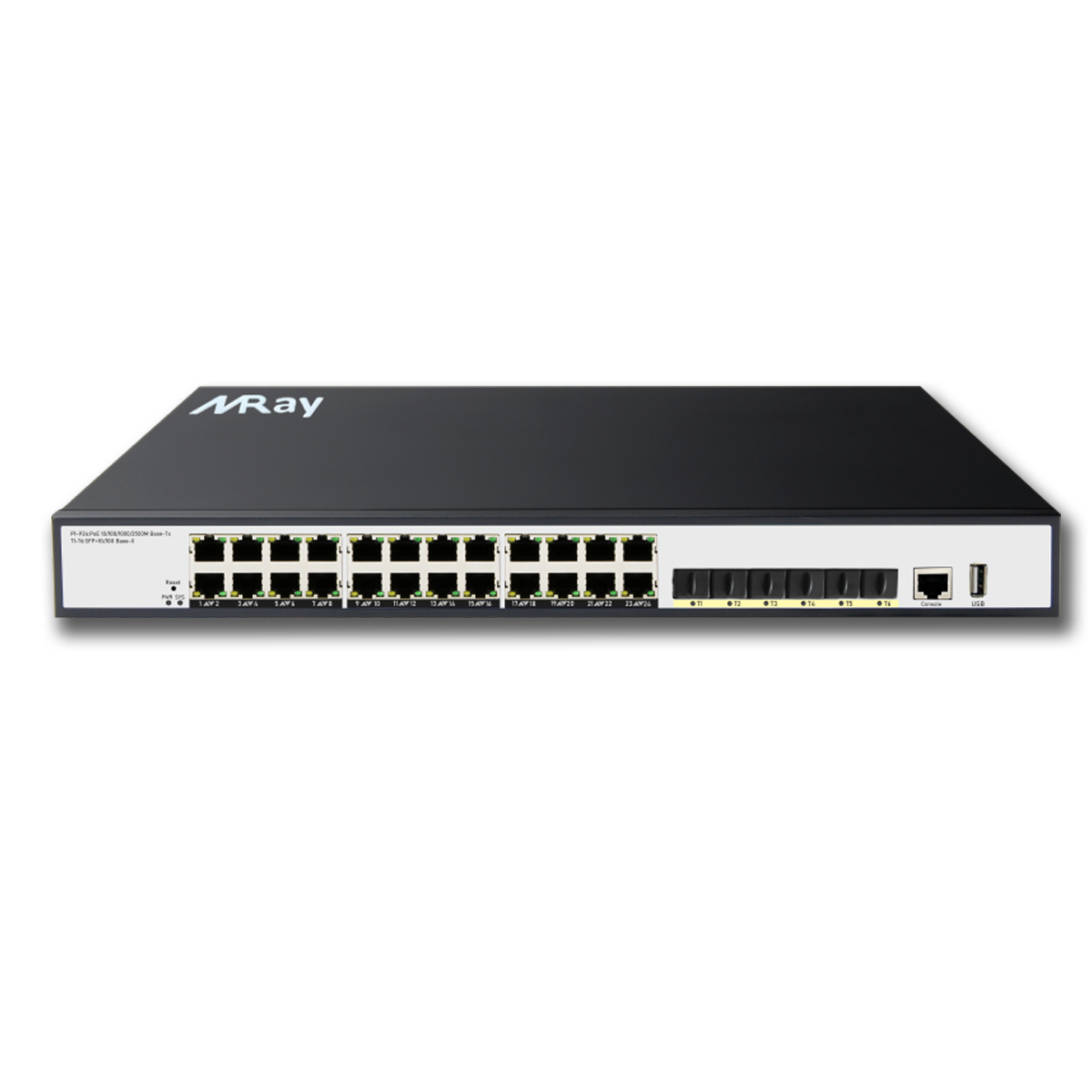

The 2.5G PoE+ Smart Switches support 24 x 2.5G PoE+ ports and 6 x 10Gb SPF+ uplink,support IPV4/IPV6 and Remote Management provides a great value, support configurable L3 network features like VLANs and PoE operation scheduling, allowing customers to deploy PoE-based VoIP phones, 4K HD IP cameras, video-over-IP endpoints and Wif6/Wifi6e Wireless access points simply and securely. Advanced features such as IPv4/IPv6 Layer 3 static routing, RIP，OSPF，LACP link aggregation, DiffServ QoS, Private VLANs, Multicast VLAN and Spanning Tree will satisfy even the most advanced business networks.
With 2 SFP module slot available, the SFP uplink port is ideal for connecting the switch to the network’s backbone, providing more than enough bandwidth and stability for ultra high speed data transferring, Beside the SFP can transmitte the date with Max 100Km distance with more economic solution.

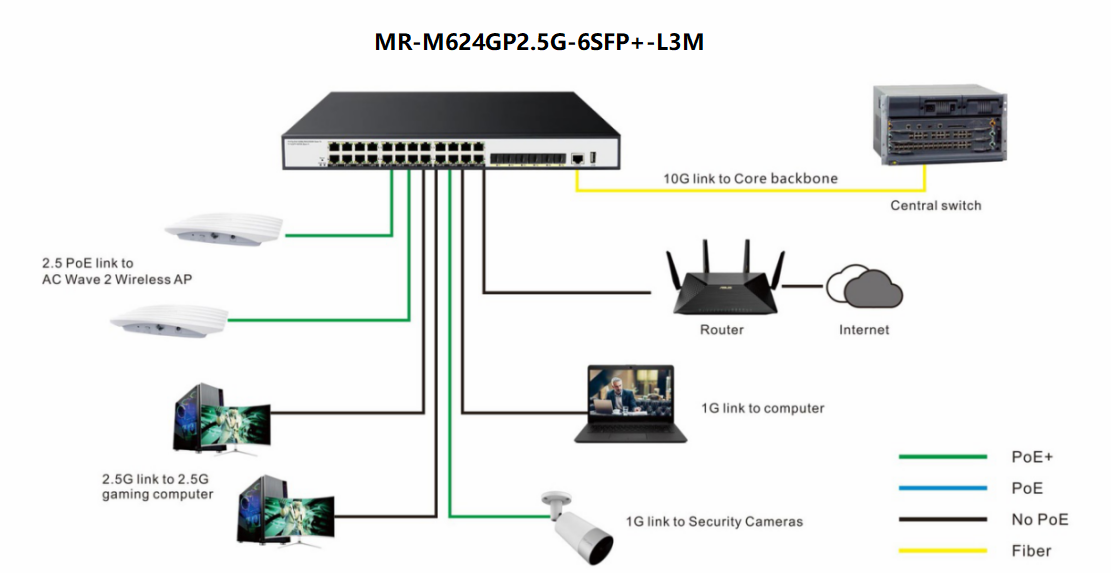

It has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
|
Technical Specifications |
MR-M624GP2.5G-6SFP+-L3M |
|
10M/100M/1G/2.5G RJ-45 copper ports |
24 |
|
PoE / PoE+ ports |
24 PoE+ (460W PoE budget) |
|
1G/2.5G/10G SFP+ (fiber) ports |
4 (dedicated) |
|
Console Port (For config ) |
Yes |
|
USB port (for config file upload/backup & firm-ware updates) |
Yes |
|
Performance Specification |
|
|
CPU |
Dual-Core 2GHz MIPS InterAptive CPU subsystem |
|
Packet buffer memory (Dynamically shared across only used ports) |
16 MB |
|
Forwarding modes |
Store-and-forward |
|
Bandwidth |
256 Gbps |
|
Packet forwarding rate (64 byte packet size) (Mpps) |
132Mpps |
|
MAC address database size (48-bit MAC ad-dresses) |
32K |
|
Multicast groups |
1K |
|
Number of IPv4 static routes |
500 |
|
Number of IPv6 static routes |
500 |
|
Number of VLANs |
4094 |
|
Number of VLANs(Open QinQ) |
16,760,836(4094*4094) |
|
Number of ARP cache entries |
1024 ARP |
|
Number of DHCP snooping bindings |
1024 |
|
Access Control Lists (ACLs) |
100 shared for MAC, IP and IPv6 ACLs (ingress) |
|
Priority queues |
8 |
|
Jumbo frame support (bytes) |
Up to 12K packet size |
|
Mean Time Between Failures (MTBF) @ 25°C |
122,546 hours |
|
100M Copper Latency (64-byte; 1518-byte; 9216-byte frames) |
8.314µs; 8.412µs; 8.451µs |
|
1G Copper Latency (64-byte; 1518-byte; 9216-byte frames) |
3.414µs; 3.545µs; 3.628µs |
|
2.5G Copper Latency (64-byte; 1518-byte; 9216-byte frames) |
3.121µs; 3.413µs; 3.562µs |
|
1G Fiber Latency (64-byte; 1518-byte; 9216-byte frames) |
2.980µs; 3.101µs; 3.179µs |
|
2.5G Fiber Latency (64-byte; 1518-byte; 9216-byte frames) |
2.635µs; 2.862µs; 2.996µs |
|
10G Fiber Latency (64-byte; 1518-byte; 9216-byte frames) |
2.330µs; 2.561µs; 2.712µs |
