Ports: Provide 24*10/100/1000Mbps PoE+ ports and 4*Gigabit Combo Uplink
PoE Standard: IEEE802.3af/at/btPower over Ethernet (PoE) Compliant
Total Power: Total power budget of 500W and 1-4ports with 60W output，5-24 ports with 30W output
Self-adaption: RJ45 port supports 10/100/1000Mbps Auto MDI/MDIX
Wide Application: Designed for Wifi AP and IP Security camera.VoIP etc
Surge protection: Protect the device from lighting surges and others electrical hazards
Considerate Design: Exquisite compact size with fanless design
Easy to use: Plug and play, No configuration required
With 4 SFP module slot available, the SFP uplink port is ideal for connecting the switch to the network’s backbone, providing more than enough bandwidth and stability for ultra high speed data transferring, Beside the SFP can transmitte the date with Max 100Km distance with more economic solution.

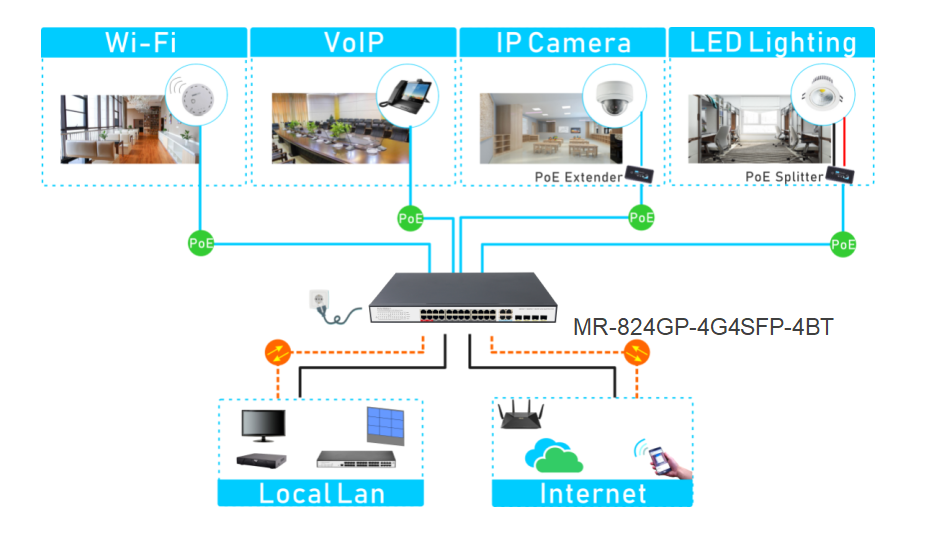

It has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
|

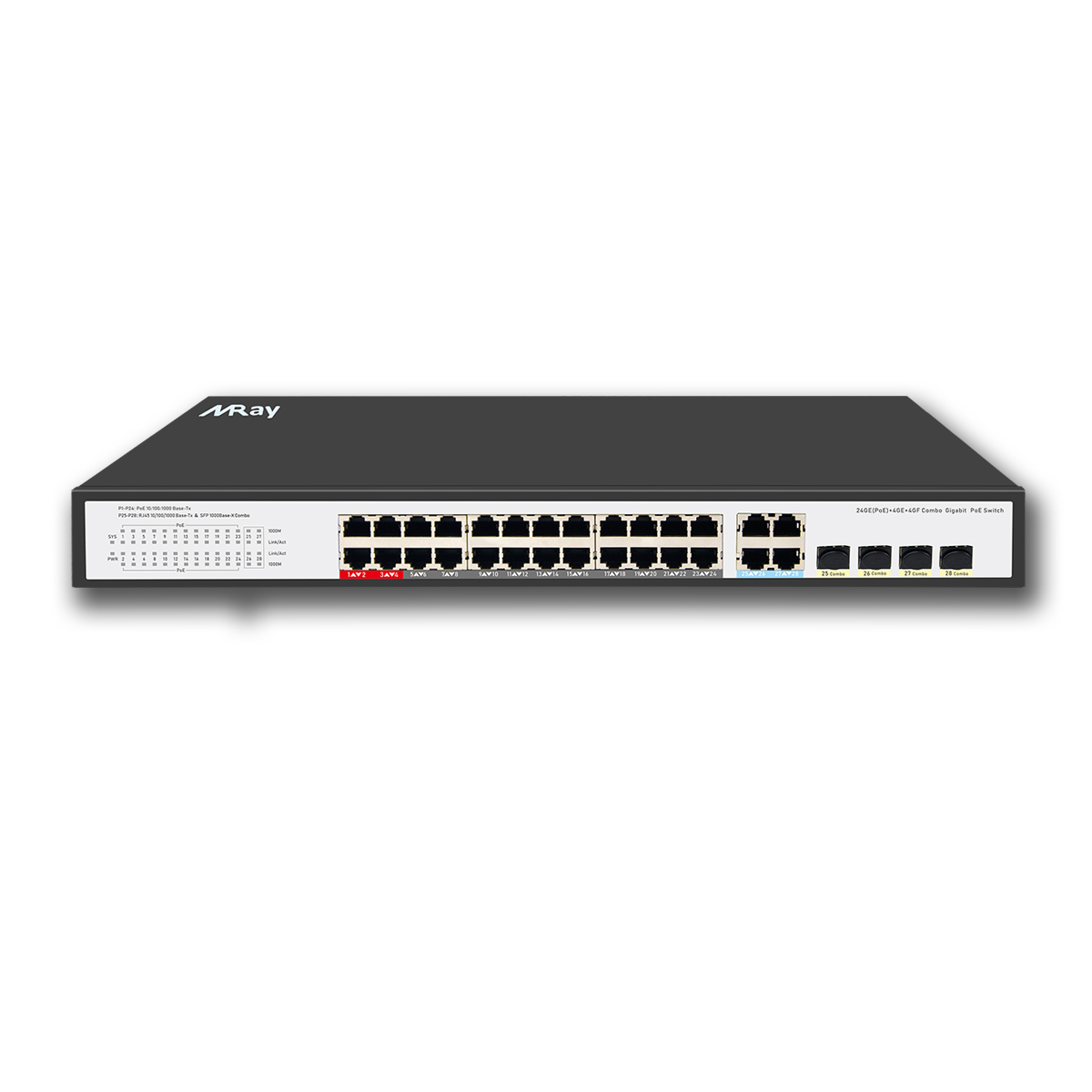

Model |
MR-824GP-4G4SFP-4BT |
|
|
Hardware Specifications |
||
|
Connector |
28 10/100/1000BASE-T RJ45 auto MDI/MDIX ports 4 1000 Base-X SFP Slots |
|
|
PoE Port |
1-4 10/100/1000Mbps POE++ PSE port (bt 60W) 5-2410/100/1000Mbps POE PSE port(at 30W) |
|
|
SFP |
Singe fiber/Dual fiber supported. Distance vary the module |
|
|
Thermal Fan |
Fan Design |
|
|
LED indicators |
Power Indicator: PWR(green). Network Indicator: Link(yellow) PoE Working Indicator: PoE(green) |
|
|
Switch Architecture |
Store and Forward |
|
|
Transmission model |
IEEE802.3X full-duplex and Backpressure half-duplex |
|
|
Switch Performance |
Backplane bandwidth |
64Gbps |
|
Packet forwarding rate |
47.62Mpps |
|
|
MAC address |
16k |
|
|
Power requirement |
AC100-240V 50/60Hz |
|
|
ESD Protection |
6KV ESD |
|
|
Dimension(W×D×H) |
440mm x 290mm x 44.5mm(17.32in x 11.42in x 1.75in) |
|
|
Weight |
5kg |
|
|
Power over Ethernet (PoE) Specifications |
||
|
Network standard |
IEEE802.3i 10 BASE-T IEEE802.3u 100 BASE-TX IEEE802.3x Flow Control IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet IEEE802.3bt Power over Ethernet IEEE802.3az EEE |
|
|
PoE Standard |
IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE+ EEE 802.3bt Power over Ethernet Plus+/PSE++ |
|
|
PoE Supply Type |
1-4 Ports 1/2/4/5(+), 3/6/7/8(-) 5-24Ports 1/2(+), 3/6(-) End-span |
|
|
PoE Power Output |
Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) Per Port 52V DC, 1200mA. max. 60 watts (IEEE 802.3bt) |
|
|
PoE Power budget |
500W |
|
|
Environment |
||
|
Safety |
FCC Part15 Class A,CE.RoHs |
|
|
Environment specification |
Operating temperature: -20℃~55℃，operating humidity: 5％~95％ |
|
|
Storage temperature: -40℃~75℃，storage humidity: 5％~95％ |
||
