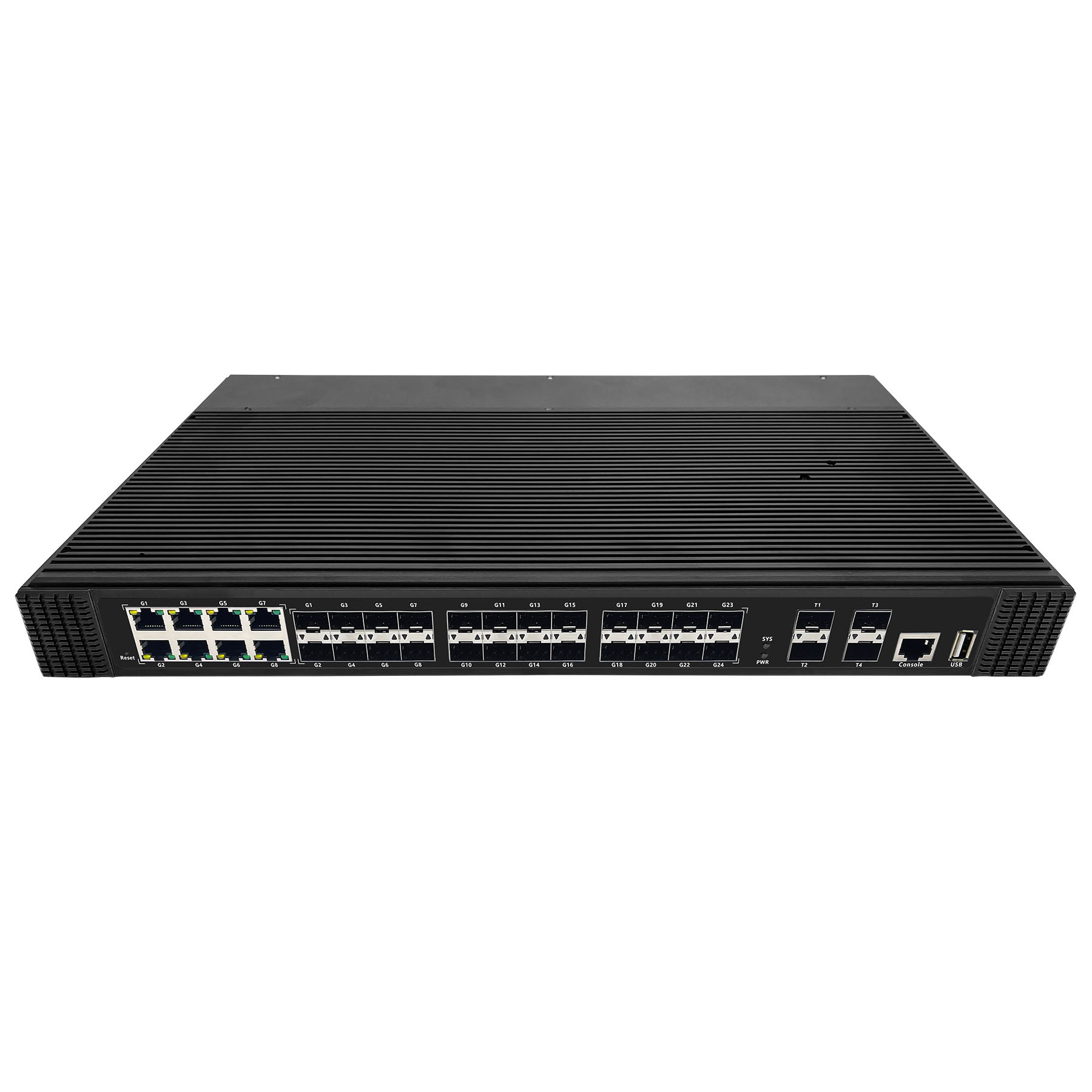

Name: 24-Port SFP L3 Industrial Managed Switch with 8-1.25Gbps RJ45 and 4-10G SFP+
Brand: Miray
SKU: MR-IM424GS-4X

Description

24-Port Fiber and Copper Connectivity for Demanding Networks
This ethernet switch is built to give procurement teams, system integrators, and plant operators a practical mix of high-density fiber access and copper flexibility in one platform: 24 Gigabit SFP ports, 8 10/100/1000Mbps RJ45 ports with auto MDI/MDIX, and 4 10G SFP+ uplinks. That combination makes it well suited for aggregation, backbone expansion, and mixed-media deployments where stable bandwidth and port density matter more than consumer-style simplicity. As an industrial-grade option from experienced industrial ethernet switch manufacturers, it helps teams standardize network architecture while supporting fiber modules, high-speed transceivers, and future expansion without replacing the whole switch infrastructure.

Managed Functions for Network Control and Reliability
The software feature set gives operators the control expected from a serious network switch: VLAN, spanning tree, link aggregation, port mirroring, ring protection, IP routing with static routing, OSPF and RIP, multicast handling, storm suppression, DHCP, QoS, and IPv6 management. Remote web management makes day-to-day configuration and diagnostics more practical for distributed sites, while the routing and traffic-control tools help maintain predictable performance in segmented industrial or enterprise networks. For buyers comparing top network switch manufacturers, this level of management is valuable because it supports policy-based deployment, traffic isolation, and easier troubleshooting across cabinets, plants, and remote nodes where uptime and network visibility are important.

Industrial Deployment Fit with Fiber Ecosystem Compatibility
With surge protection designed to improve resistance to lightning-related electrical stress, this switch is appropriate for facilities where outdoor runs, utility rooms, or electrically noisy environments can affect reliability. Its 24 1000Mbps SFP ports and 4 10G SFP+ uplinks allow the use of compatible sfp module and transceiver options from established optical transceiver manufacturers, giving resellers and engineering teams flexibility in component selection. It is a strong fit for factory networks, transportation sites, energy infrastructure, surveillance backbones, and campus aggregation layers, especially where operators may also evaluate adjacent equipment such as a poe switch for powered endpoints. For teams planning long-term deployments, the practical advantage is a stable, managed platform that supports fiber expansion, structured cabling, and network segmentation without unnecessary complexity.

Key Advantages

24-Port Fiber and Copper Architecture for Flexible Network Design
This ethernet switch combines 24 Gigabit SFP ports with 8 10/100/1000Mbps RJ45 ports and 4 10G SFP+ uplinks, which gives system integrators a practical way to mix fiber and copper links in one network switch. The port layout supports long-distance optical backbone connections while keeping local device access on RJ45, so network planning stays structured and expansion is easier for plant engineers, distributors, and top network switch manufacturers serving industrial projects. For teams sourcing from industrial ethernet switch manufacturers or pairing with an sfp module from optical transceiver manufacturers, this design reduces the need for separate devices and helps maintain consistent throughput across different link types.

Industrial Management and Reliable Operation Control
The switch supports remote web management, VLAN, spanning tree, link aggregation, port mirroring, ring protection, static routing, OSPF, RIP, multicast, storm suppression, DHCP, QoS, and IPv6 management, so operators can control traffic rules and diagnose faults without opening the cabinet often. This is a real advantage in industrial networks because stable configuration and fast maintenance matter more than simple port count, especially when the switch must support controlled segmentation and uptime-sensitive workloads. Surge protection adds another layer of practical value for deployments that need a dependable network switch rather than a basic poe switch or office-grade device, making it well-suited for buyers who need long-term stability and easier network upkeep.

Model	MR-IM424GS-4X
Hardware Specifications
Connector	24* 1000 Base-X SFP Slots 8* 10/100/1000BASE-T RJ45 auto MDI/MDIX ports Combo
Uplink port	4* 10G Base-X SFP+ Slots
Console	1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
LED Display	Power Indicator: PWR(green). Network Indicator: Link(green) SFP: Green
Network Standard	IEEE802.3i 10 BASE-T IEEE802.3u 100 BASE-TX IEEE802.3ab/z 1000 BASE-TX IEEE802.3x Flow Control IEEE802.3az EEE
Switch Architecture	Store and Forward
Transmission model	IEEE802.3X full-duplex and Backpressure half-duplex
Switch Performance	Backplane bandwidth	256Gbps
	Packet forwarding rate	132.16Mpps
	MAC address	16k
Power requirement	AC100-240V 50/60Hz
ESD Protection	6KV ESD
Dimension(W x D x H)	440 x 290 x 44.5mm(17.32in x 11.42in x 1.75in)
Weight	4kg
Environment	Operating temperature: -40℃~75℃，operating humidity: 5％~95％ Storage temperature: -50℃~80℃，storage humidity: 5％~95％
Safety	FCC Part15 Class A,CE.RoHs

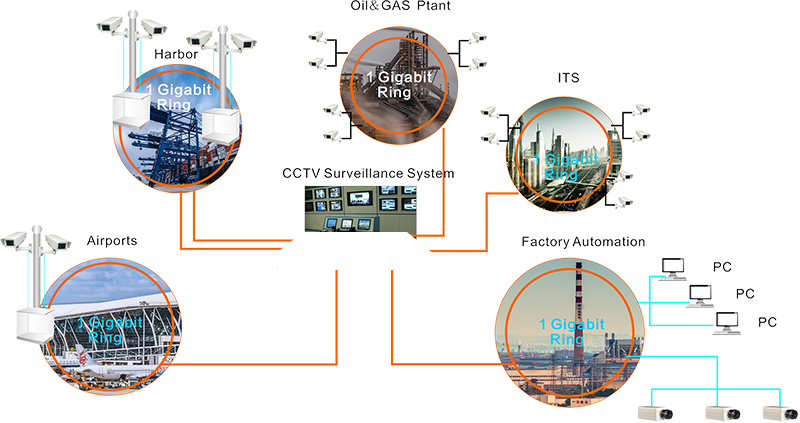

Applications

Use Scenarios

Factory Automation and Production Line Backbone
In a manufacturing plant, controllers, HMIs, inspection systems, and monitoring terminals often need separate paths for local access and backbone transmission. This ethernet switch fits that environment by using RJ45 ports for nearby equipment and 10G SFP+ uplinks for core aggregation, which helps engineers keep traffic organized when production data, control signals, and video streams share the same network. Its industrial management functions and surge protection make it suitable for panel builders and maintenance teams that need a stable network switch in electrical rooms, control cabinets, and line-side installations.

Campus, Utility, and Distributed Edge Network Links
For utility sites, campus buildings, or distributed edge locations, the main need is to connect multiple network segments over fiber while keeping the system manageable from one point. This switch works well in those settings because the 24 SFP ports support optical links between cabinets or buildings, while the 4 10G SFP+ uplinks provide higher-capacity handoff to aggregation layers or core equipment. Buyers who work with industrial ethernet switch manufacturers, optical transceiver manufacturers, or resell sfp module-based solutions can use it where distance, traffic control, and maintenance access are all important for a practical industrial network switch deployment.

FAQ

Q1. What ports and uplinks does this switch provide?
The unit provides 24 x 1000Mbps SFP fiber ports, 8 x 10/100/1000Mbps RJ45 ports with auto MDI/MDIX, and 4 x 10G SFP+ uplinks. This port mix is well-suited for industrial network switch deployments that need both copper access and higher-speed fiber aggregation.

Q2. What software functions can I use for network control?
Our switch supports VLAN, Spanning Tree, Link Aggregation, Port Mirroring, Ring Protection, IP Routing, Multicast, Storm Suppression, DHCP, QoS, and IPv6 management. These functions help system integrators and operators organize traffic, improve resilience, and manage the ethernet switch at the network layer.

Q3. Can this model work with SFP modules and transceivers?
Yes, it is designed around 24 x 1000Mbps SFP ports plus 4 x 10G SFP+ ports, so it is intended for use with compatible sfp module and transceiver-based fiber connections. We recommend matching the port speed and form factor to your optical network requirements.

Q4. Is remote management available for industrial deployments?
Yes, remote web management is supported, along with VLAN control, storm control, and IPv6 management. This makes maintenance practical for plant engineers and network teams that need centralized access to the network switch without local intervention at every installation point.

Q5. Does this switch include protection for harsh industrial environments?
Surge protection is included to help protect the device from lightning-related surges. That makes it a more practical choice for industrial sites where electrical disturbance is a concern. We position it for buyers comparing industrial ethernet switch manufacturers, especially when fiber and managed networking are required.
