Ports: Provide 24*10/100/1000Mbps Ethernet ports with 2 1000M SFP Uplink
Self-adaption: RJ45 port supports 10/100/1000Mbps Auto MDI/MDIX
Fiber Port:2 1000Mbps SFP Uplink

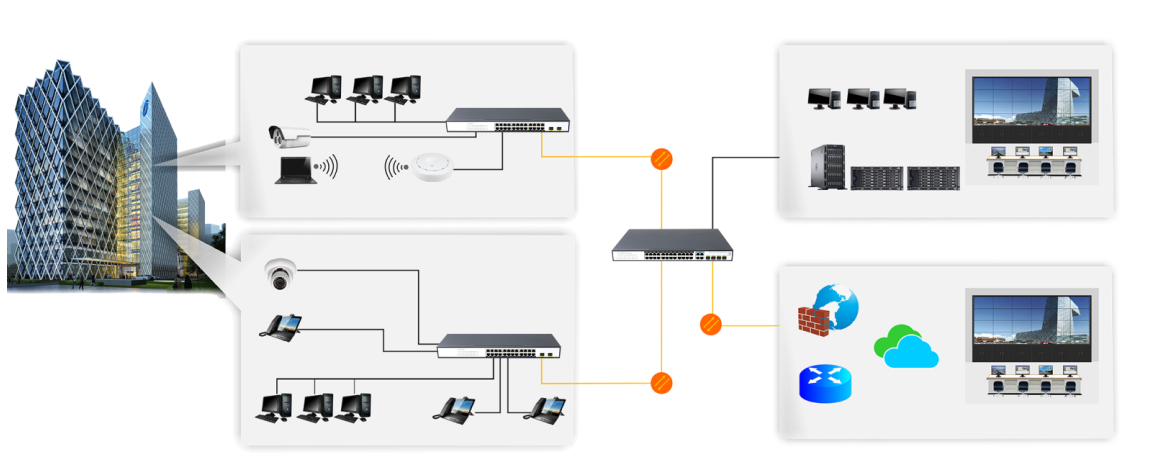

Wide Application: Designed for Wifi AP and IP Security camera.VoIP etc
Surge protection: Protect the device from lighting surges and others electrical hazards
Considerate Design: Wall mounted with fanless design
Easy to use: Plug and play, No configuration required
Installation: Rack mount with easy installation

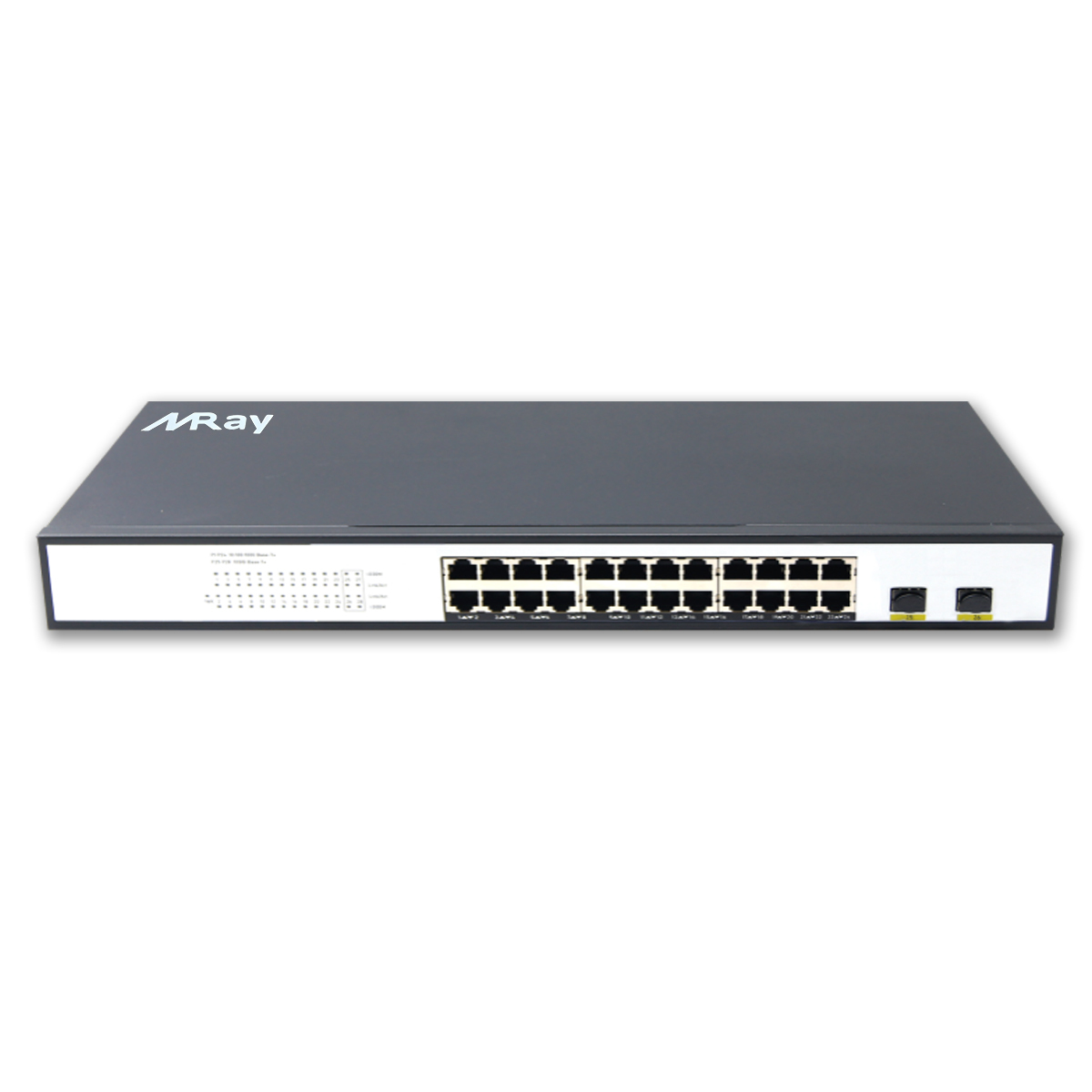

This 24 ports gigabit Switch provides a high-performance switch architecture that is capable of providing the non-blocking switch fabric and wire-speed throughput as high as 64Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Besides, the Flow Control function of the switch enables routers and servers to directly connect to the Switch for fast and reliable data transfer.
All the RJ45 copper interfaces of the MR-224G-2SFP support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard for auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. With 2 SFP module slot available, the SFP uplink port is ideal for connecting the switch to the network’s backbone, providing more than enough bandwidth and stability for ultra high speed data transferring, Beside the SFP can transmitte the date with Max 100Km distance with more economic solution.
The MR-224G-2SFP supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity, which eliminates unnecessary traffic and relieves congestion on critical network paths. With an intelligent address recognition algorithm. The high data throughput and 64Gbps internal switching fabric make it ideal for most Gigabit environments, especially when network is upgraded to a Gigabit environment.
|
Model |
MR-224G-2SFP |
|
|
Hardware Specifications |
||
|
Connector |
24 10/100/1000BASE-T RJ45 auto MDI/MDIX ports 2 1000 Base-X SFP Slots Ulink |
|
|
Uplink port |
2 1000 Base-X SFP Slots |
|
|
LED Display |
Power Indicator: PWR(green). Network Indicator: Link(yellow) SFP: Green |
|
|
Thermal Fan |
Fanless Design |
|
|
Network Standard |
IEEE802.3i 10 BASE-T IEEE802.3u 100 BASE-TX IEEE802.3ab/z 1000 BASE-TX IEEE802.3x Flow Control IEEE802.3az EEE |
|
|
Switch Architecture |
Store and Forward |
|
|
Transmission model |
IEEE802.3X full-duplex and Backpressure half-duplex |
|
|
Switch Performance |
Backplane bandwidth |
64Gbps |
|
Packet forwarding rate |
47.62Mpps |
|
|
MAC address |
16k |
|
|
Power requirement |
AC100-240V 50/60Hz |
|
|
ESD Protection |
6KV ESD |
|
|
Dimension |
440 x 180 x 45mm (W x D x H) |
|
|
Weight |
2.2 kg |
|
|
Environment |
Operating temperature: -10℃~45℃，operating humidity: 10％~90％ Storage temperature: -20℃~70℃，storage humidity: 5％~95％ |
|
|
Safety |
FCC Part15 Class A,CE.RoHs |
|
