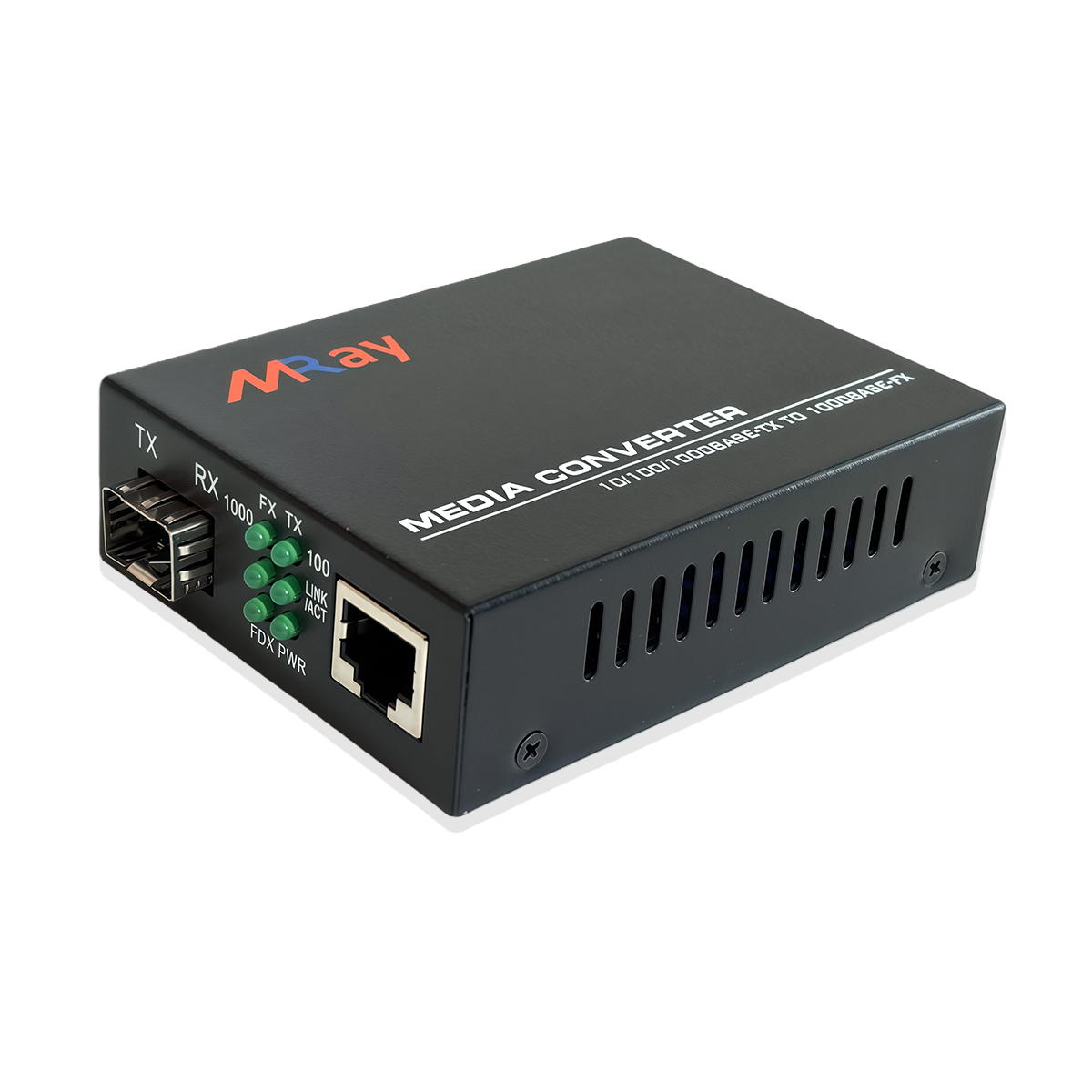

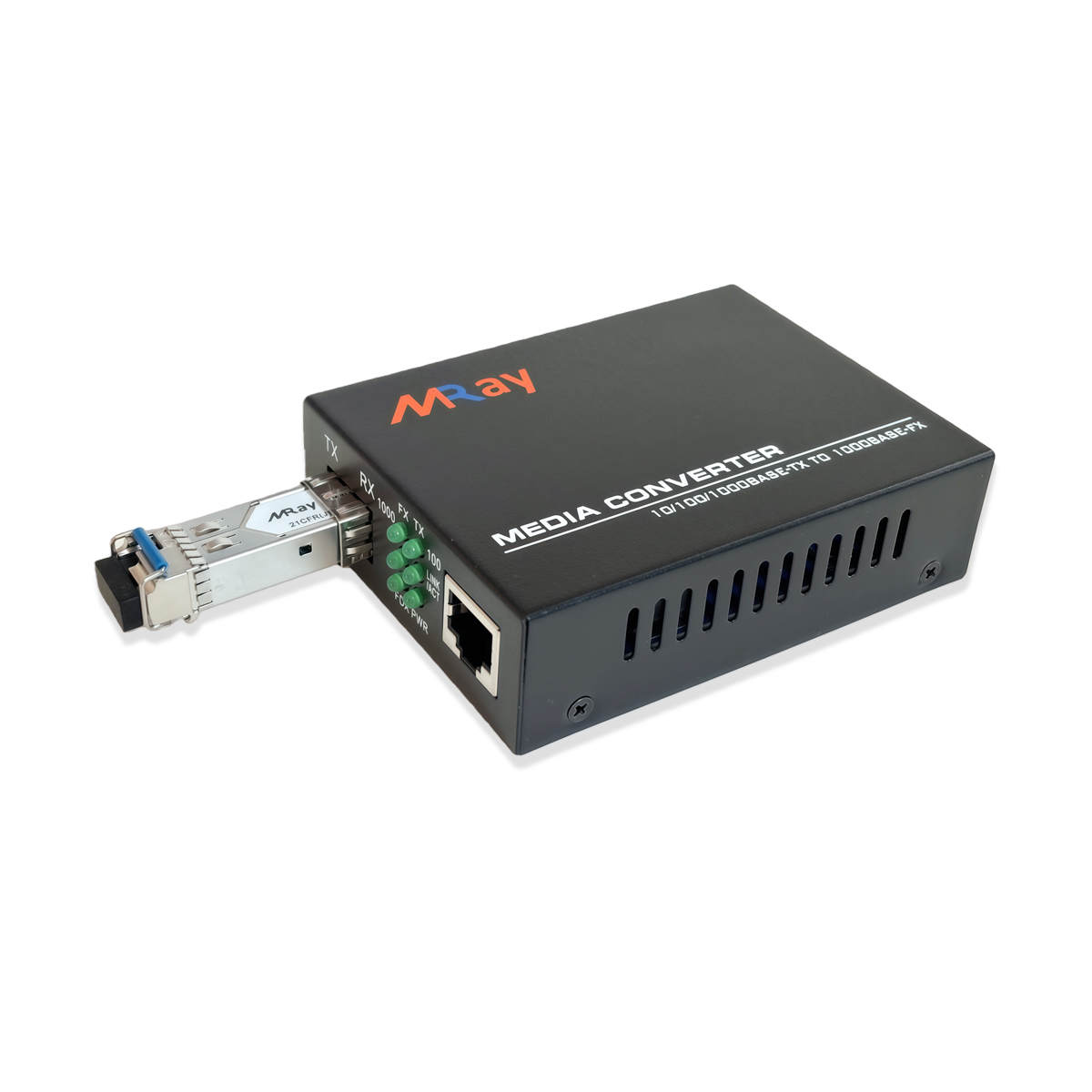

Miray This is a media converter that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-X via an open SFP port. The open SFP port allows users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-X, while extending the network reach beyond the 100m reach limitation of copper. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
|
Port |
1 SFP port, 1 RJ45 port |
|
Cable |
SM or MM Fibre/Twisted Pair |
|
Transmission Type |
10/100/1000M FDX/HDX |
|
Wavelength (nm) |
850~1625 |
|
Bandwidth |
1.4Gbps |
|
Data Buffer |
2Mb |
|
Distance |
550m~120km |
|
Operating Temperature |
0 to +70 |
|
Weight (kg) |
0.2 (External Power) |
|
Dimensions (External Power) (mm) |
95(L) * 70(W) * 26(H) |
|
Power Consumption |
3.5W |
|
Operating Humidity (%) |
5 – 90 |
|
Power External |
DC5V 2A |
|
LED indicator |
POWER (power supply) FX Link/ACT (fibre link/action) TX Link/ACT (RJ45 link/action) 100M, SD |
|
Error Rate |
< 10-9 |
|
Transmission Distance(km) (m) |
Multi-mode Dual-fibre 2 Single-Mode Dual-fibre 20/40/60/80/120 Cat5 Twisted Pair 100 |
|
Port |
RJ45 Port: Connecting with STP/UTP Cat5 Twisted Pair Optical Port: SC ST FC |
|
Conversion Means |
Media Conversion, Store-and-Forward |
