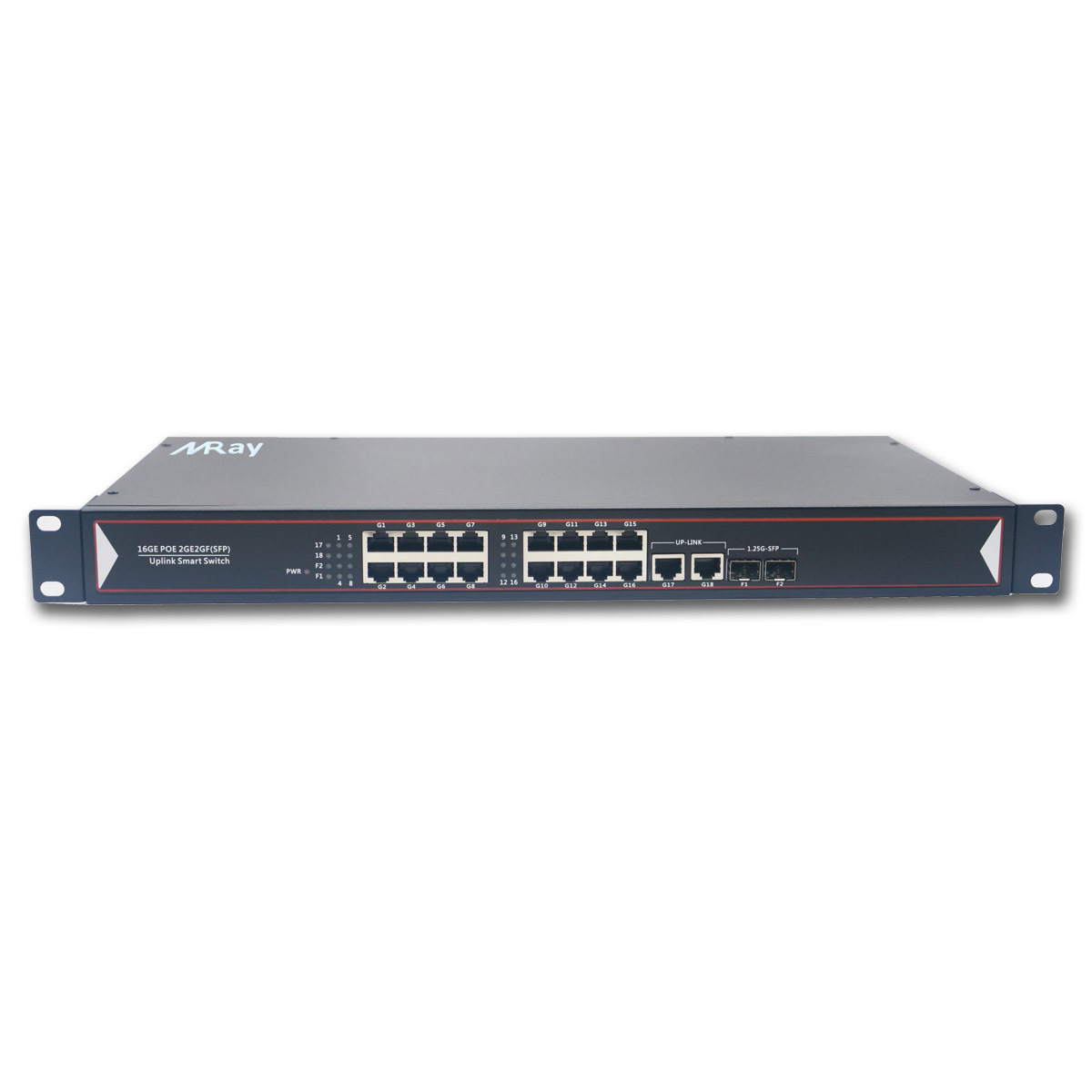

16 Port Full Gigabit PoE Switch with 2 Gigabit Uplink SFP Ports 2 Gigabit RJ45 ports, Unmanaged, 803.af/at Compliant, Rack Mount, High Power 380W

No.MR-PR2G16G-2SFP-380

Key Features

Name: 16 Port Full Gigabit PoE Switch with 2 Gigabit Uplink SFP Ports 2 Gigabit RJ45 ports, Unmanaged, 803.af/at Compliant, Rack Mount, High Power 380W
Brand: Miray
SKU: MR-PR2G16G-2SFP-380
Rating: 5 (1 reviews)

Ports: Provide 16* 10/ 100/ 1000Mbps PoE ports and 2 * 1.25Gbps SFP Uplink PoE Standard: IEEE802.3af/at Power over Ethernet (PoE) Compliant
Total Power: Total power budget of 260/380W and 30W for all singe PoE ports
Self-adaption: RJ45 port supports 10/ 100/ 1000Mbps Auto MDI/MDIX
Wide Application: Designed for Wifi AP and IP Security camera.VoIP etc
Surge protection: Protect the device from lighting surges and others electrical hazards
Considerate Design: Rack mount installation with fanless design
Easy to use: Plug and play, No configuration required

Description
Applications
Specifications

Description

This series product is 16-Port Gigabit PoE + 2-Port Gigabit SFP + 2 ports Gigabit Copper Ethernet Switch. This series switches provide 24 Gigabit Ethernet RJ-45 downlink ports, 2 Gigabit Ethernet RJ-45 uplink ports and 2 Gigabit SFP uplink ports. All RJ-45 downlink ports support Power-over-Ethernet (PoE+) and deliver up to 30W power per port. It was designed by rack mount chassis.

The total 380W PoE power budget for the 16× PoE ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Applications

Dedicated 16-Port PoE+ Switch forWide Range of Applications with 380W PoE Budget.

It has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Specifications

Model MR-PR2G16G-2SFP-260 / MR-PR2G16G-2SFP-380 Hardware Specifications
Connector	16* 10/ 100/ 1000BASE-T RJ45 auto MDI/MDIX ports 2* 10/ 100/ 1000 Base-T RJ-45 Ports 2* 1000 Base-X SFP ports
PoE Port	16* 10/ 100/ 1000Mbps POE PSE port
SFP	Singe fiber/Dual fiber supported. Distance vary the module
Thermal Fan	Fanless Design
LED indicators	Power Indicator: PWR(green). Network Indicator: Link(yellow) PoE Working Indicator: PoE(green)
Switch Architecture	Store and Forward
Transmission model	IEEE802.3X full-duplex and Backpressure half-duplex
Switch Performance	Backplane bandwidth Packet forwarding rate MAC address	64Gbps 29.76Mpps 8k
Power requirement	AC100-240V 50/60Hz
ESD Protection	6KV ESD
Dimension(W × D × H)	485mm x 265mm x 45mm
Weight <4.5kg Power over Ethernet (PoE) Specifications
Network standard	IEEE802.3i 10 BASE-T IEEE802.3u 100 BASE-TX IEEE802.3x Flow Control IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet IEEE802.3az EEE
PoE Standard	IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE
PoE Supply Type	1/2(+), 3/6(-) End-span
PoE Power Output	Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)
PoE Power budget	260W/380W optional
Environment
Safety	FCC Part15 Class A,CE.RoHs
Environment specification	Operating temperature: -20℃~55℃ , operating humidity: 5％~95% Storage temperature: -20℃~75℃ , storage humidity: 5％~95%
