Features

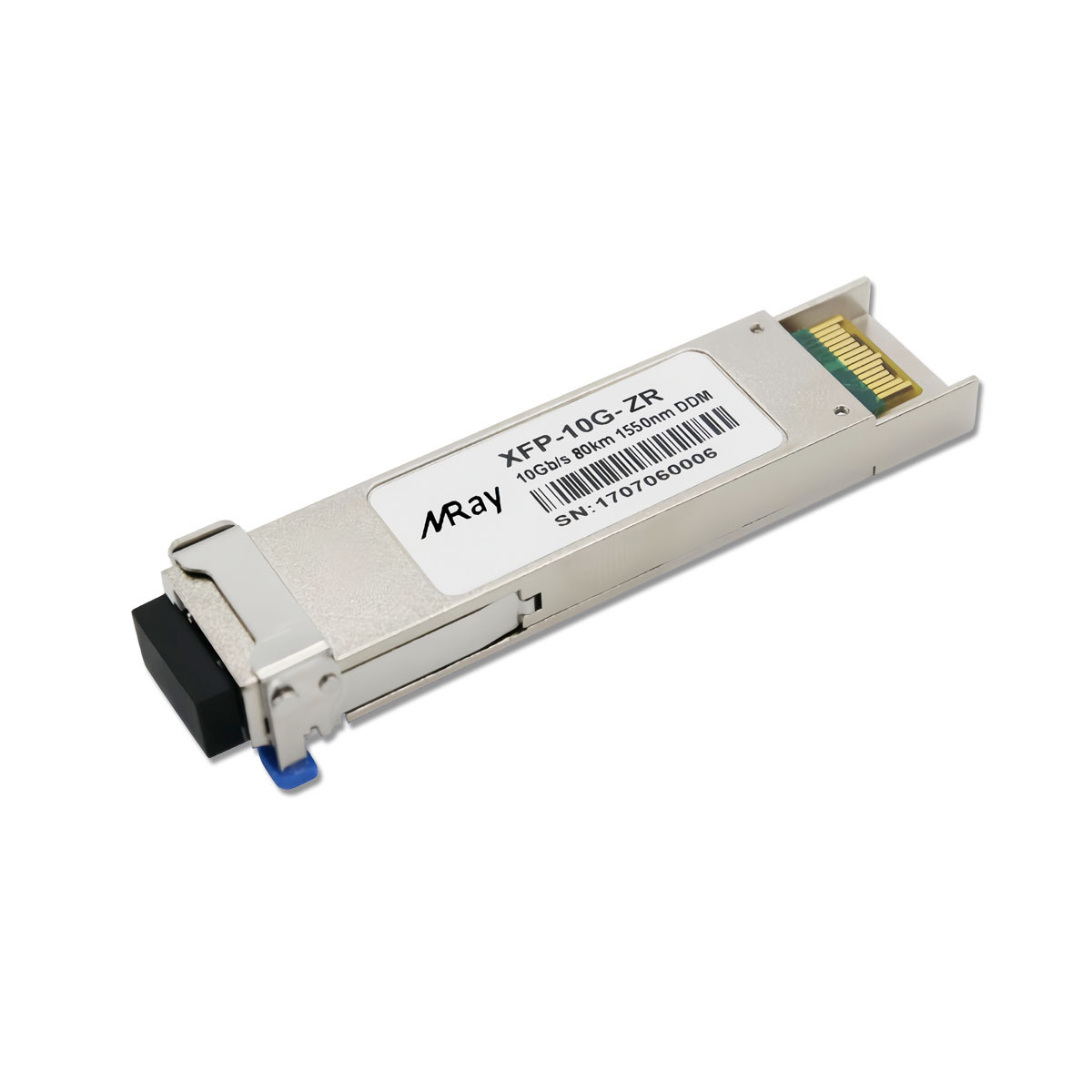

Miray XFP-10G-ZR Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. The high performance cooled EML transmitter and high sensitivity APD receiver provide superior performance for SONET/SDH and Ethernet applications up to 120km optical links.
| Vendor Name | Miray | Model No. | XFP-10G-ZR120 |
| Transceiver Type | Dual Fiber | Reach | 120km |
| Wavelength | 1550nm | Form Type | XFP |
| Speed Description | 10Gigabit | Media | SMF |
| Connector | Dual LC | Extinction Ratio | >8.2 dBm |
| Average Output Power | 1~5 dBm | Receiver Sensitivity | <-27 dBm |
| Applications |
SONET OC-192&SDH STM-64 at 9.953Gbps 10GBASE-120km 10G Ethernet OC192 over FEC at 10.709Gbps Other optical links, up to 10.7Gbps |
Environment |
Operating: 0 to 70°C
|
