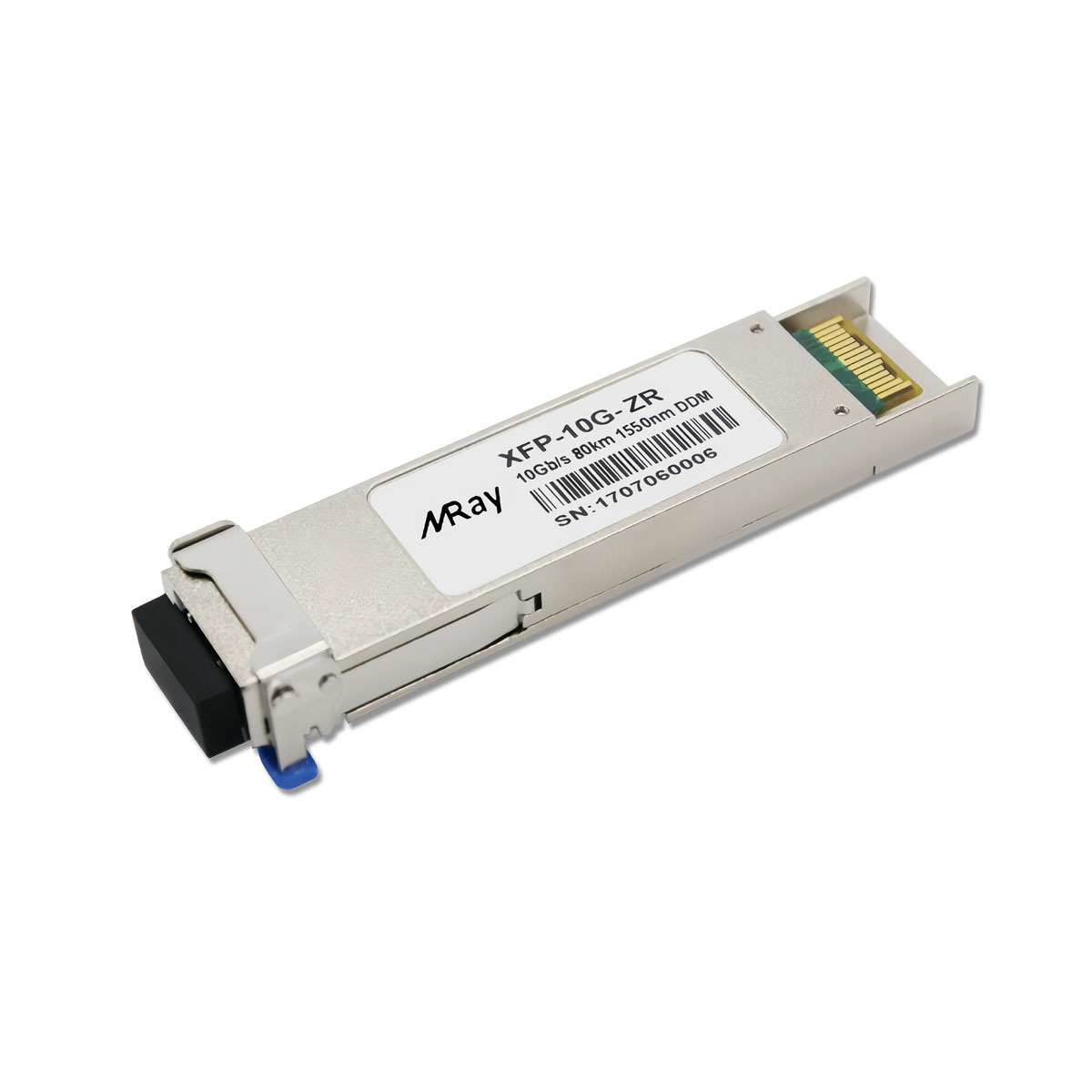

10GBASE-ZR XFP 1550nm 80km DOM LC SMF Transceiver Module XFP-10G-ZR

No.XFP-10G-ZR

Features

Support multi protocol from 9.95Gb/s to 11.3Gb/s
Hot pluggable 30 pin connector
Compliant with XFP MSA
Transmission distance of 80km over single mode fiber
1550nm Cooled EMLlaser transmitter.
APD Receiver
Duplex LC connector
2-wire interface for management and diagnostic monitor
XFI electrical interface with AC coupling
Power supply voltages : +3.3V, +5V
Temperature range 0°C to 70°C
Power dissipation: <3.5W
RoHS Compliant Part

Get The Latest Quote

Description
Applications
Specifications

Description

Miray XFP-10G-ZR Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. The high performance cooled EML transmitter and high sensitivity APD receiver provide superior performance for SONET/SDH and Ethernet applications up to 80km optical links.

Applications

10GBASE-ZR/ZW Ethernet
SONET OC-192 / SDH STM-64 ITU-T G.959.1 P1L1-2D2
80km 10G FC
Other optical links

Specifications

Form Factor	XFP	Max Data Rate	10.3125Gbps
Wavelength	1550nm	Max Cable Distance	80km
Media	SMF	Connector	Duplex LC
Transmitter Type	EML	Receiver Type	APD
TX Power	-1 ~ 5dBm	Receiver Sensitivity	<-23dBm
Electrical Modulation	10.3125Gb/s NRZ	Optical Modulation	10.3125Gb/s NRZ
Power Consumption	<3.5W	CBit Error Ratio (BER)	1.00E-12
Temperature Range	0 to 70℃ (32 to 158℉)	Operating Relative Humidity	5% ~ 85%
Protocols	XFP MSA,CPRI,eCPRI	Main application environments	10G Gigabit Ethernet Switches and Routers,Fiber Channel Switch Infrastructure,Other Optical Links
