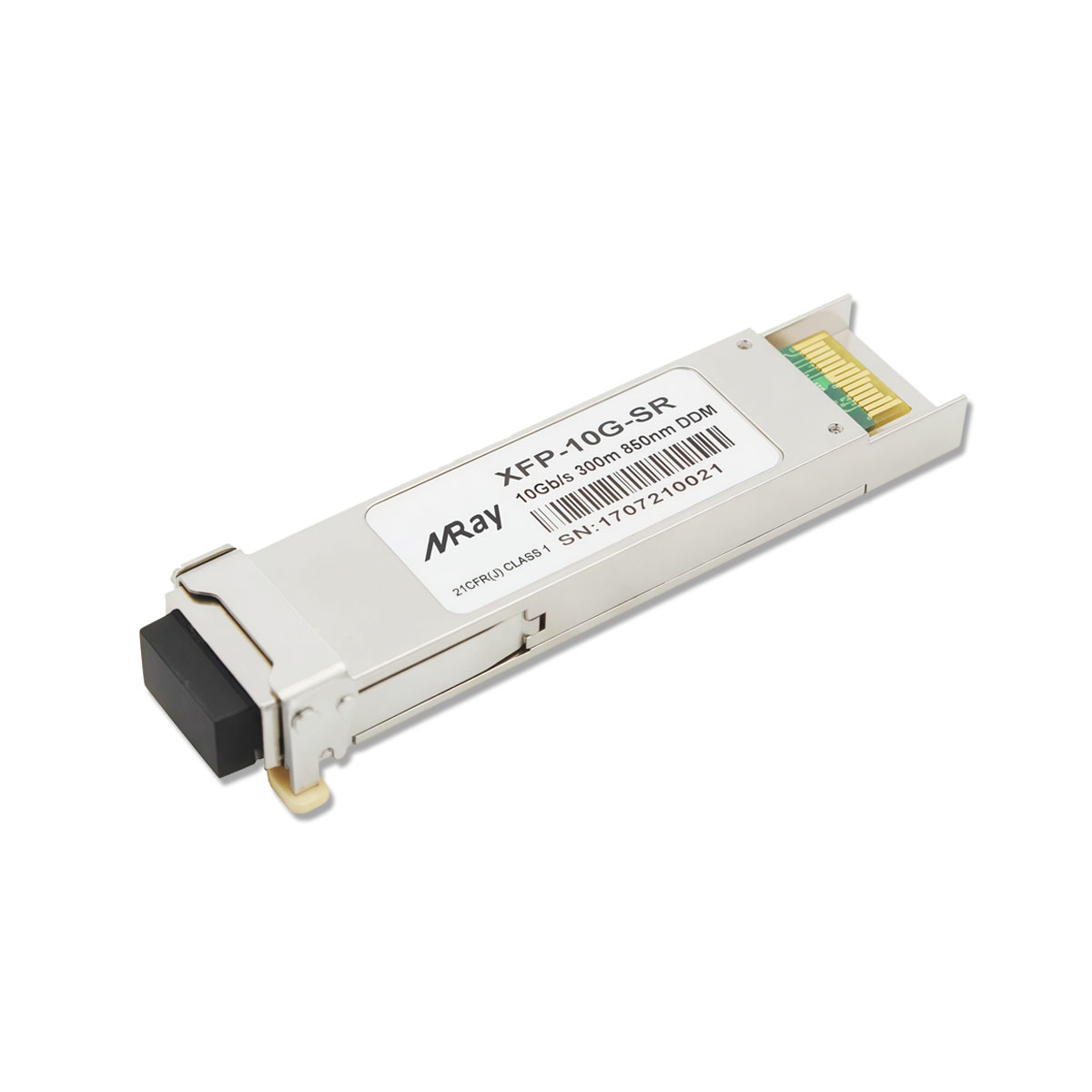

10GBASE-SR XFP 850nm 300m DOM LC MMF Transceiver Module XFP-10G-SR

No.XFP-10G-SR

Features

  • Support multi protocol from 9.95Gb/s to 11.3Gb/s
  • Hot-Pluggable30 pin connector
  • Compliant with XFP MSA
  • Transmission distance of 300m over multi mode fiber
  • 850nm VCSELlaser transmitter
  • Duplex LC connector
  • 2-wire interface for management and diagnostic monitor
  • XFI electrical interface with AC coupling
  • Single power supply voltages : +3.3V
  • Temperature range 0°C to 70°C
  • Power dissipation: <1.5W
  • RoHS Compliant Part
  • 10GBASE-SR XFP 850nm 300m DOM LC MMF Transceiver Module XFP-10G-SR
  • Description

  • Applications

  • Specifications

Description

Miray XFP-10G-SR small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. The high performance uncooled 850nm Vcsel transmitter and high sensitivity PIN receiver provide superior performance for 10G Fibre Channel and Ethernet applications up to 300m optical links.

Applications

  • 10GBASE-SR/SWEthernet
  • 1200-Mx-SN-I 10G Fibre Channel
  • Other optical links
Specifications

Form Factor

XFP

Max Data Rate

10.3125Gbps

Wavelength

850nm

Max Cable Distance

300m

Media

MMF

Connector

Duplex LC

Transmitter Type

VCSEL

Receiver Type

PIN

TX Power

-6 ~ 1dBm

Receiver Sensitivity

<-11dBm

Electrical Modulation

10.3125Gb/s NRZ

Optical Modulation

10.3125Gb/s NRZ

Power Consumption

<1.5W

CBit Error Ratio (BER)

1.00E-12

Temperature Range

0 to 70°C (32 to 158°F)

Operating Relative Humidity

5% ~ 85%

Protocols

XFP MSA,CPRI,eCPRI

Main application environments

10G Gigabit Ethernet Switches and Routers,Fiber Channel Switch Infrastructure,Other Optical Links
