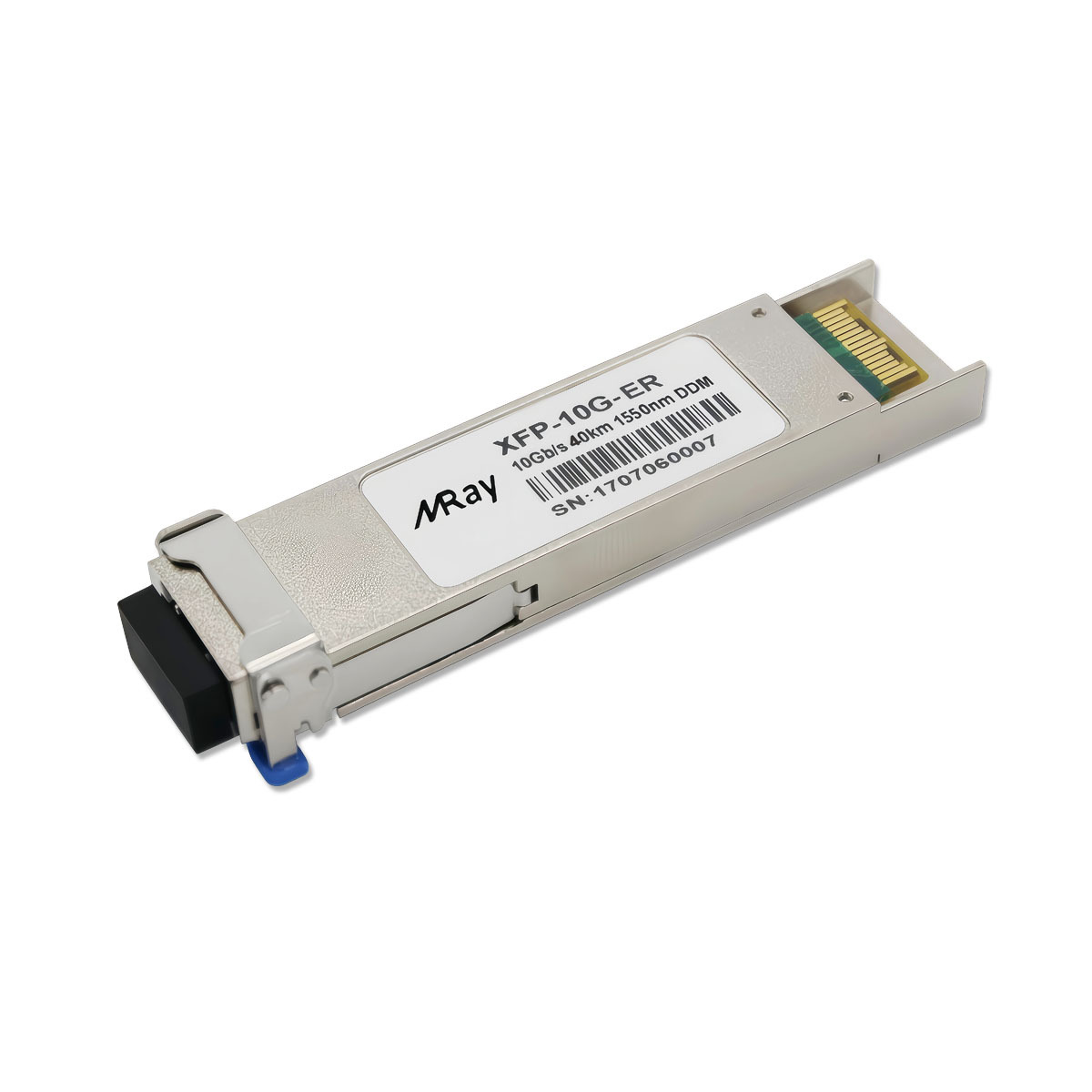

10GBASE-ER XFP 1550nm 40km DOM LC SMF Transceiver Module XFP-10G-ER

No.XFP-10G-ER

Features

  • Support multi protocol from 9.95Gb/s to 11.3Gb/s
  • Hot pluggable 30 pin connector
  • Compliant with XFP MSA
  • Transmission distance of 40km over single mode fiber
  • 1550nm Cooled EMLlaser transmitter.
  • Duplex LC connector
  • 2-wire interface for management and diagnostic monitor
  • XFI electrical interface with AC coupling
  • Power supply voltages : +3.3V, +5V
  • Temperature range 0°C to 70°C
  • Power dissipation: <3W
  • RoHS Compliant Part
  • 10GBASE-ER XFP 1550nm 40km DOM LC SMF Transceiver Module XFP-10G-ER
  • Description

  • Applications

  • Specifications

Description

Miray XFP-10G-ER Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. The high performance cooled EML transmitter and high sensitivity PIN receiver provide superior performance for SONET/SDH and Ethernet applications up to 40km optical links.

Applications

  • 10GBASE-ER/EW Ethernet
  • SONET OC-192 IR-2/SONET OC-192 IR-3/SDH STM S-64.2b/SDH STM S-64.3b
  • 40km 10G FC
  • Other optical links

Specifications

Form Factor

XFP

Max Data Rate

10.3125Gbps

Wavelength

1550nm

Max Cable Distance

40km

Media

SMF

Connector

Duplex LC

Transmitter Type

EML

Receiver Type

PIN

TX Power

-2 ~ 5dBm

Receiver Sensitivity

<-15dBm

Electrical Modulation

10.3125Gb/s NRZ

Optical Modulation

10.3125Gb/s NRZ

Power Consumption

<3W

CBit Error Ratio (BER)

1.00E-12

Temperature Range

0 to 70°C (32 to 158°F)

Operating Relative Humidity

5% ~ 85%

Protocols

XPF MSA,CPRI,eCPRI

Main application environments

10G Gigabit Ethernet Switches and Routers,Fiber Channel Switch Infrastructure,Other Optical Links
