Features
Description

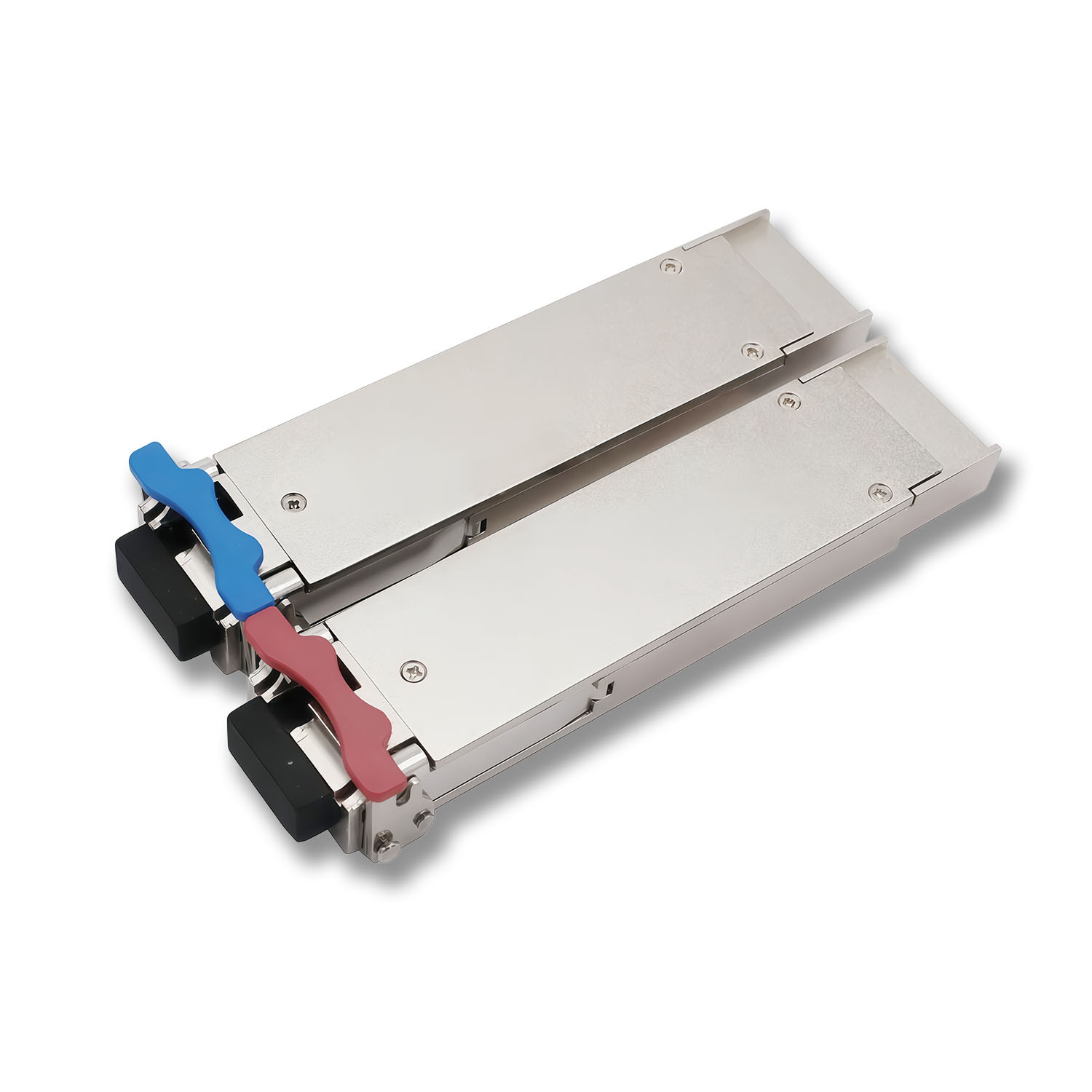

Miray’ XFP-BX60-SM1330/1270 Bi-directional 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with 10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.
| Vendor Name | Miray | Model Number | XFP-10G-BX60-SM1330 |
| Form Factor | XFP BiDi | Data Rate | 10 Gb/s |
| Wavelength | TX:1330 nm/RX:1270 nm | Fiber Type | SMF |
| Max Distance | 60 km | Optical Components | DFB/APD |
| Transmitter Power | 0 ~ 5 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -20 dBm | Receiver Overload | > -7 dBm |
| Connector | LC Simplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.05 kg |
| Application | 10GBASE-ER/10GBASE-EW Ethernet 10G Fiber Channel 10G Data Center Switches and Routers 10G Network interface cards and Fiber Media Converters |
Compliance | IEC/EN 61000-4-2, IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
