Features
Description

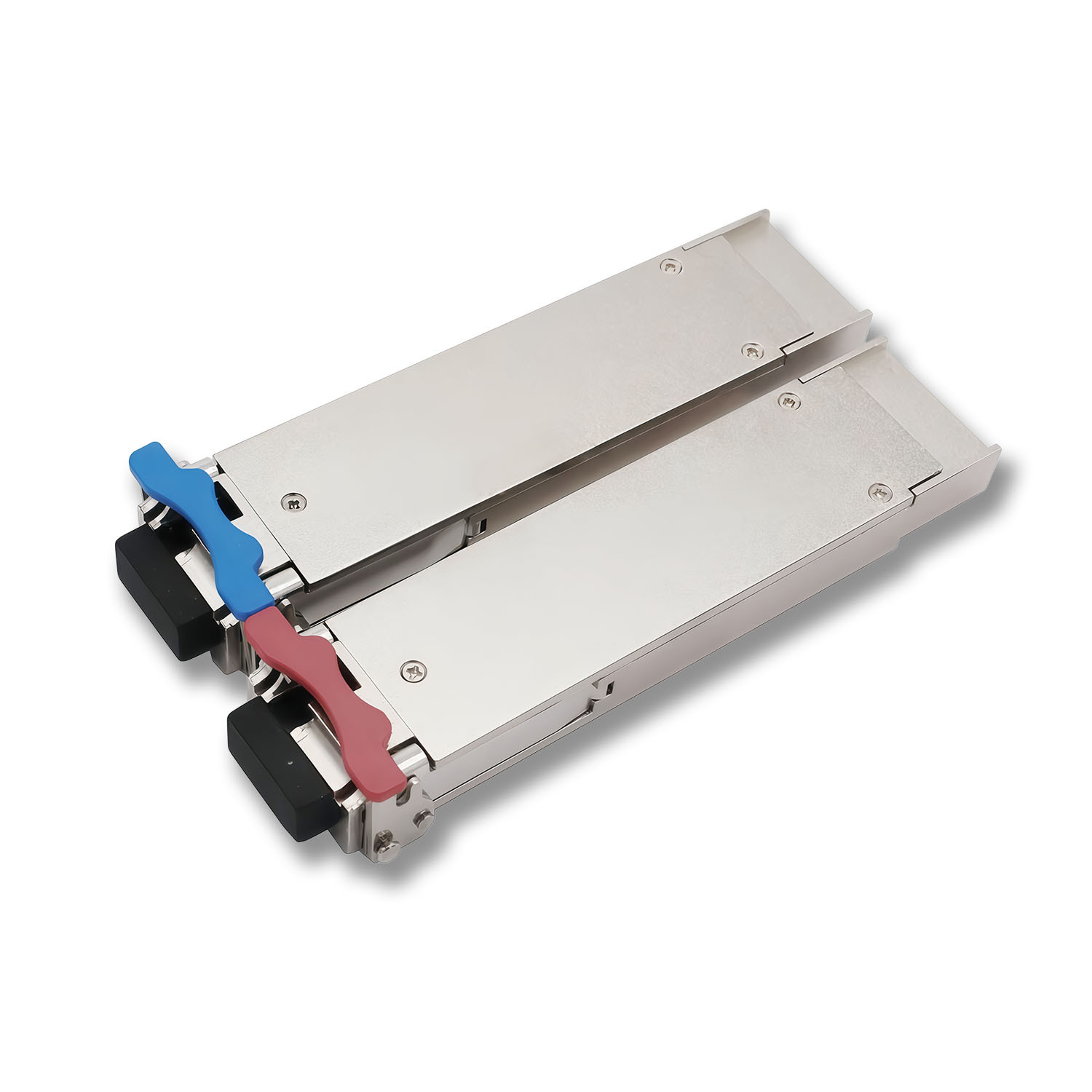

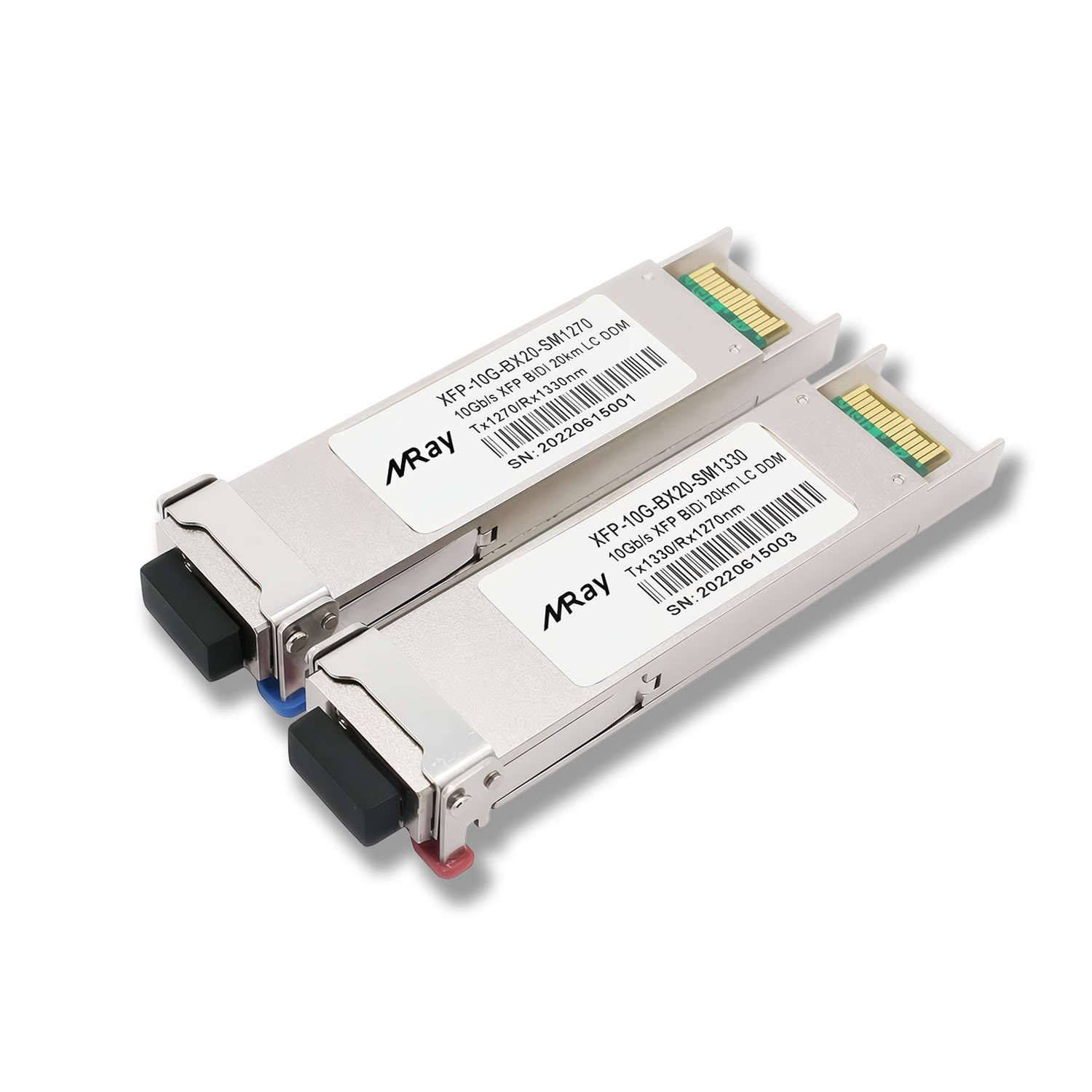

Miray XFP-BX20-SM1330/1270 Bi-directional 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with 10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae, SONET OC-192 /SDH and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.
| Part No. | XFP-10G-BX20-SM1270 | Vendor Name | Miray |
| Form Factor | XFP | Max Data Rate | 10.3125Gbps |
| Wavelength | 1270nm-TX/1330nm-RX | Max Cable Distance | 20km |
| Connector | LC simplex | Optical Components | DFB |
| Media | SMF | DOM Support | YES |
| TX Power | -7~1dBm | Receiver Sensitivity | <-14dBm |
| Commercial Temperature Range | 0 to 70℃(32 to 158°F) | Protocols |
XFP MSA,INF-8077i, IEEE 802.3a |
