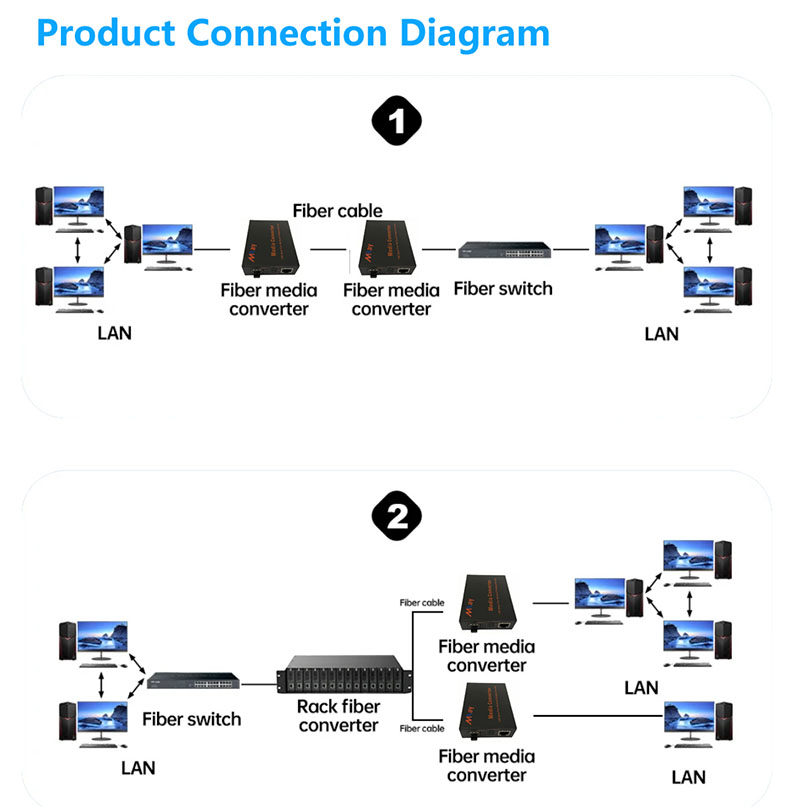

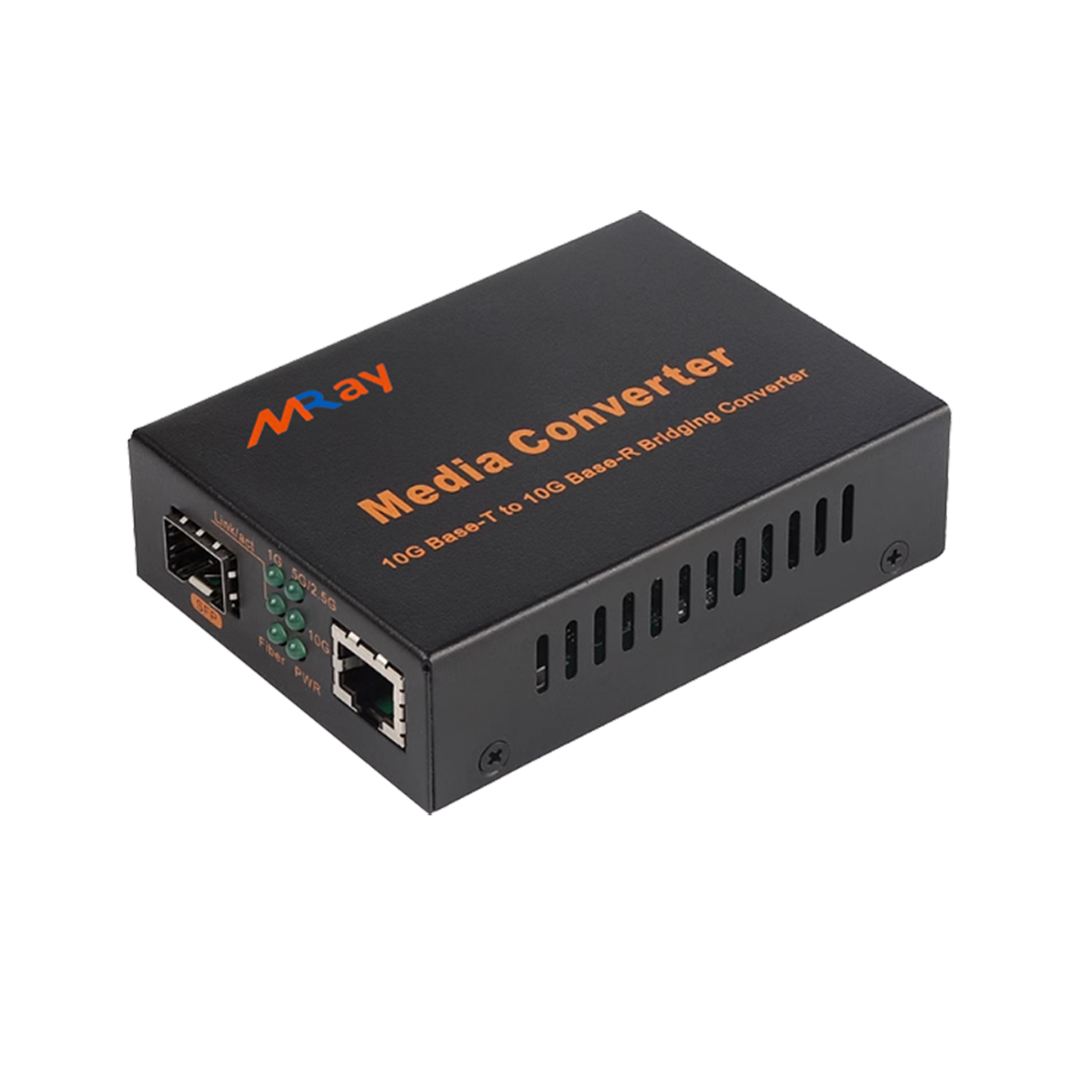

Miray MR-10G-SFP 10G Media Converter supports two types media for network connection such as 10GBase-T and 10GBase-FX. The bridge media converter is designed with a 10Gbase Ethernet PHY chip that connects two types segments operation smoothly. This converter can be used as standalone unit or as slide-in module to the 19” converter rack Chassis for use at a central wiring closet.
|
Standards |
1000Base-T, 2.5GBase-T, 5Gbase-T, 10Gbase-T 1000Base-X, 2500Base-X, 5GBase-R , 10GBase-R |
|
Media Supported |
1000Base-T: Cat5 UTP/STP. MAX 100m; 2.5GBase-T: Cat5e UTP/STP. MAX 50m; 5GBase-T: Cat5e UTP/STP. MAX 50m; 10G Base-T: Cat6a UTP/STP. MAX 50m; |
|
Port Type |
RJ45, SFP+ Slot |
|
Work Mode |
1000Base-T to 1000Base-X 2.5GBase-T to 2500Base-X 5Gbase-T to 5GBase-R 10Gbase-T to 10GBase-R |
|
Fiber Port |
Connector:1x SFP+ Data Rate: 10Gbps Fiber wavelength: 850nm / 1310nm / 1490nm / 1550nm Fiber type: single mode 9/125μm, multimode 50/125μm, 62.5/125μm Distance: 550m～100km |
|
Performance |
Processing Type: Store and Forward MAC Table Size: 2K Buffer Space: 1Mbit Transmission mode: full-duplex / half-duplex adaptive Time Delay: ＜20μs |
|
Size |
95*70*25mm |
|
Power Supply |
INPUT : DC 5~12V DC Adapter : 12V1A or 5V2A |
|
Power Consumption |
MAX 4.5W |
|
Operation Temperature |
0℃ to 55℃ |
|
Relative Humidity |
5% to 80% (non-condensation) |
