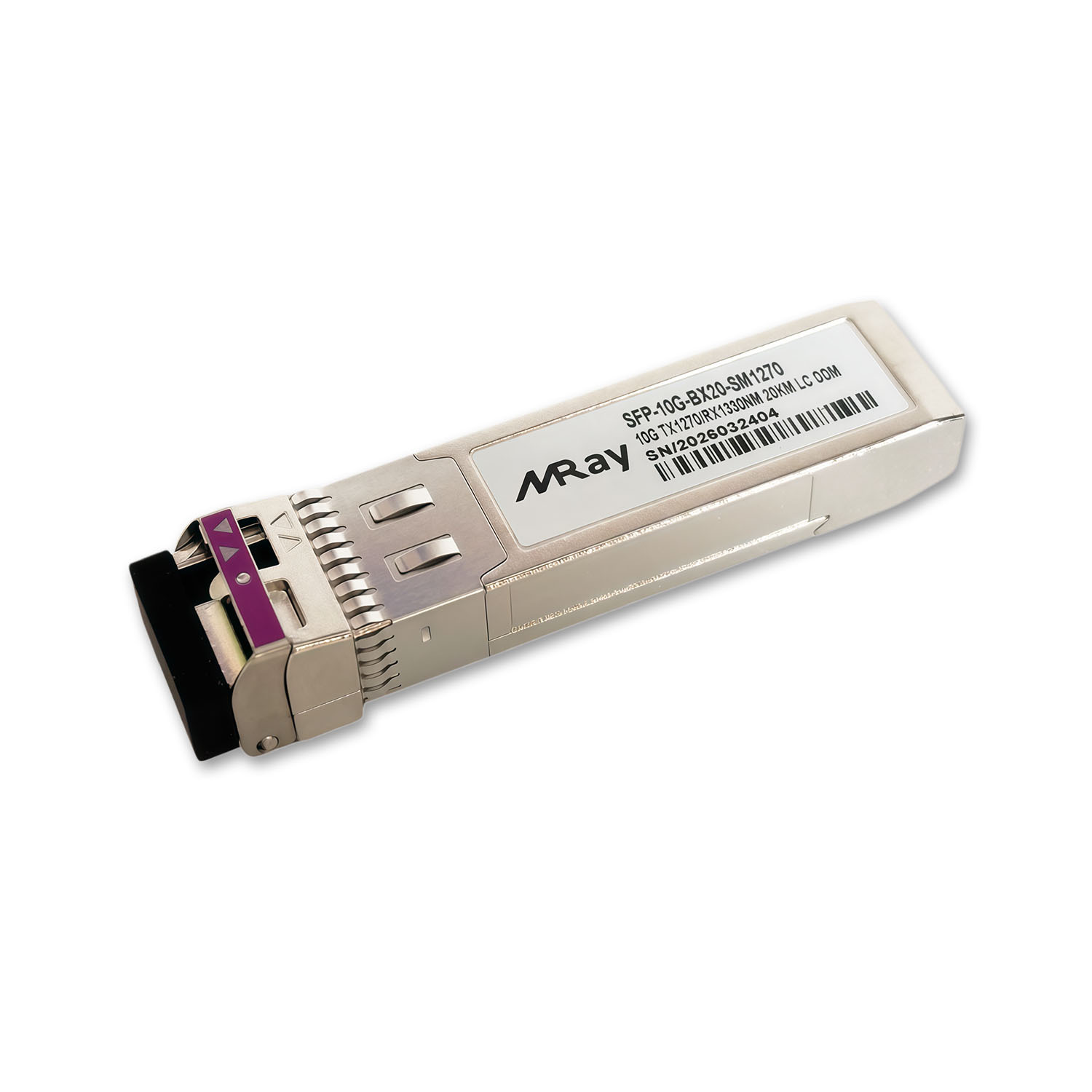

Miray SFP-10G-BX20-SM1270 & SFP-10G-BX20-SM1330 Bi-directional 10Gb/s (SFP+) transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-LR/LW Ethernet, SONET OC-192 / SDH and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.
Applications
10GBASE-LR/LW Ethernet
SONET OC-192 / SDH
10G FibreChannel
Form Factor
SFP+
Max Data Rate
10.3125Gbps
Wavelength
1270nmTX/1330nmRX
Max Cable Distance
20km
Media
SMF
Connector
Simplex LC
Transmitter Type
DFB
Receiver Type
PIN
TX Power
-3 ~ +2dBm
Receiver Sensitivity
<-14dBm
Electrical Modulation
10.3125Gb/s NRZ
Optical Modulation
10.3125Gb/s NRZ
Power Consumption
≤1.5W
CBit Error Ratio (BER)
10-12
Temperature Range
0 to 70°C (32 to 158°F)
Operating Relative Humidity
5% ~ 85%
Protocols
SFP+ MSA Compliant,CPRI,eCPRI
Main application environments
10 Gigabit Ethernet Switches and Routers,Fiber Channel,Other Optical Links
