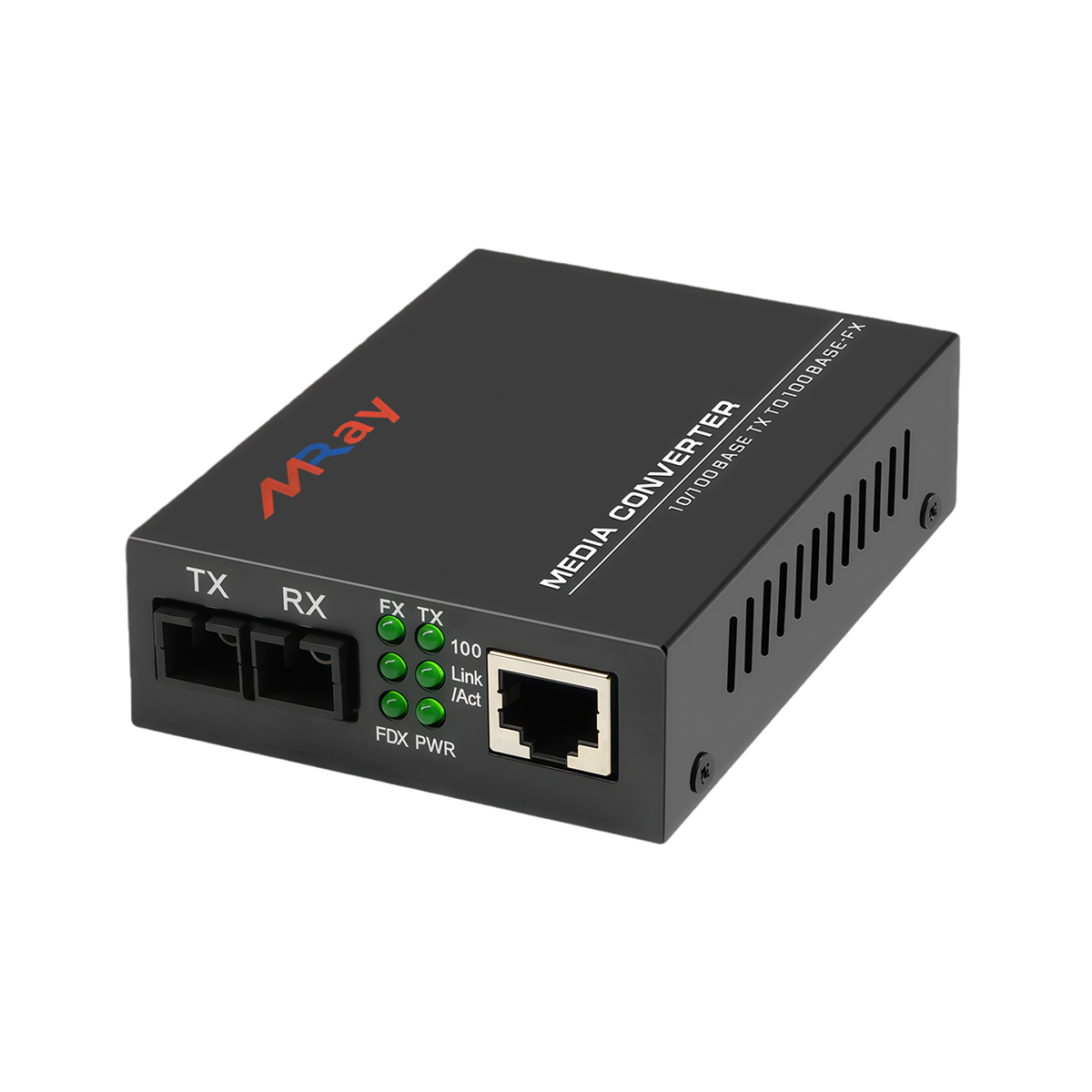

The Ethernet media converters are designed to transmit and receive 10/100Mbps data over multimode or single mode optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps, or 100Mbps Ethernet rate without any adjustments. The optical interface operates at a 100Mbps Ethernet rate. LED indicators are provided for rapidly ascertaining equipment operating status.
|
Parameters |
Specifications |
|
Standards |
IEEE802.3u (100Base-TX/FX), IEEE 802.3 (10Base-T) |
|
Wavelength |
Multi-mode: 850 nm |
|
Transmission Distance |
Fiber: Cat. 3/4/5/6: 100 m |
|
Port |
One RJ45 port, One Fiber (ST/SC) |
|
MDI/MDI-X |
Auto selection |
|
LED Indicator |
PWR: Green Illuminated to indicate unit is operating under normal operation |
|
Power Supply |
Outside: 5 V DC 1 A |
|
Operating Temp |
0 °C to +70 °C |
|
Storage Temp |
-20 °C to +80 °C |
|
Storage Humidity |
5% to 90% (non-condensing) |
|
Dimensions |
95 mm × 70 mm × 25 mm |
|
Net Weight |
0.165 kg |
|
Emissions |
FCC Part 15 , Class A, RoHS and CE Mark |
