Ports: Provide 8*10/100/1000Mbps PoE+ ports and 2 *1000Mbps RJ45 and 1 Gigabit SFP Uplink
PoE Standard: IEEE802.3af/at/btPower over Ethernet (PoE) Compliant
Total Power: Total power budget of 300W and 1-4ports with 60W output，5-8port with 30W output
Self-adaption: RJ45 port supports 10/100/1000Mbps Auto MDI/MDIX
Wide Application: Designed for Wifi AP and IP Security camera.VoIP etc
Surge protection: Protect the device from lighting surges and others electrical hazards
Considerate Design: Exquisite compact size with fanless design
Easy to use: Plug and play, No configuration required

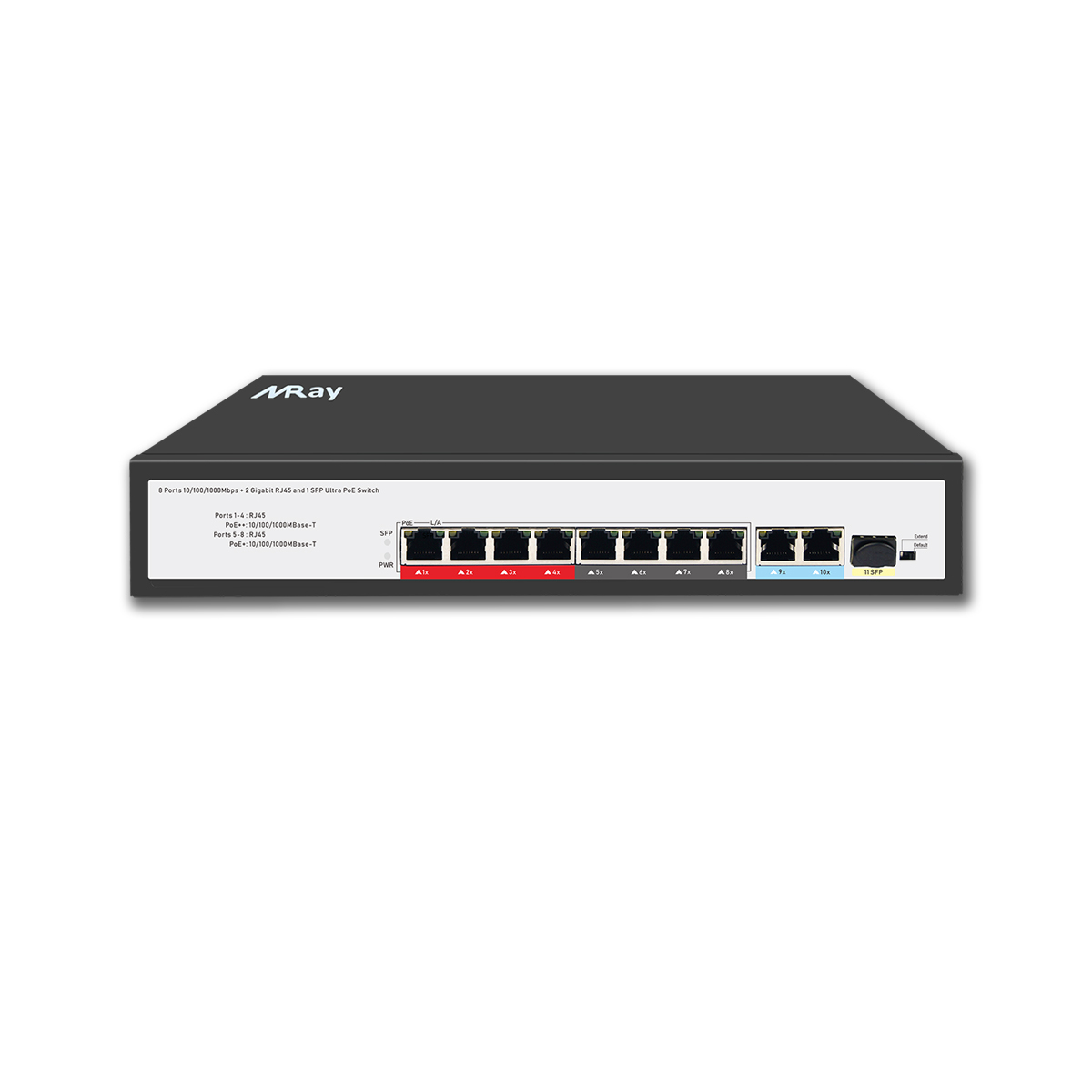

The MR-208GP-2G1SFP PoE++ Gigabit Smart Switch has 8* 10/100/1000Mbps PoE++ ports which support IEEE802.3af/at/bt standard and 2 * 1000Mbps RJ45 and 1Gigabit SFP Uplink ports. the Benchu Group Ultra PoE switch provides Maximun power budget of 300W and 60W for PoE ports (1-4ports) sepectively,allowing users to have several different Networking products configured.
Ultra PoE switch adopts the IEEE 802.bt PoE++ standard and PoH technology, it is capable to source up to 65 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD).
With 1 SFP module slot available, the SFP uplink port is ideal for connecting the switch to the network’s backbone, providing more than enough bandwidth and stability for ultra high speed data transferring, Beside the SFP can transmitte the date with Max 100Km distance with more economic solution.

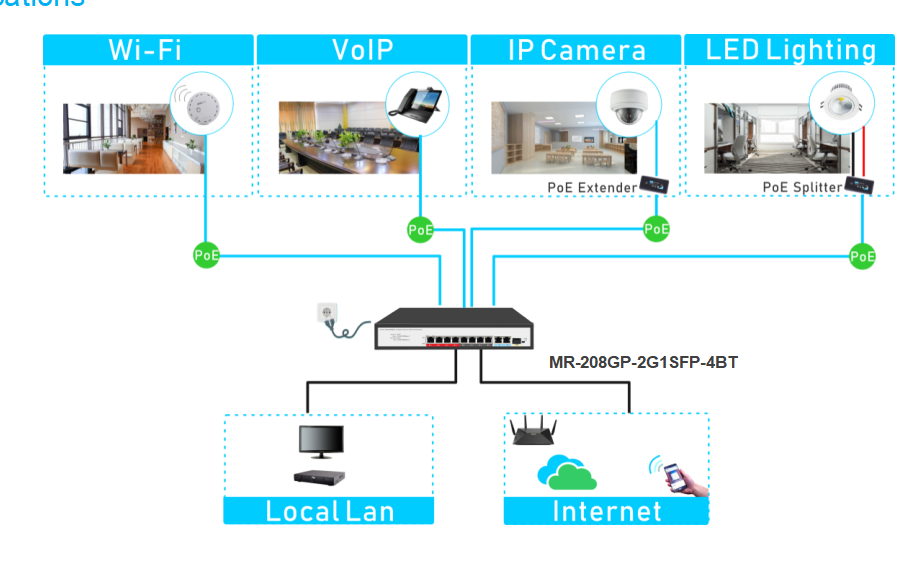

It has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
|
Model |
MR-208GP-2G1SFP-4BT |
|
|
Hardware Specifications |
||
|
Network Connector |
8 10/100/1000BASE-T RJ45 auto MDI/MDIX ports 2 10/100/1000BASE-T RJ45 auto MDI/MDIX ports 1 1000BASE-X SFP |
|
|
PoE Port |
4 10/100/1000Mbps POE+ PSE port 4 10/100/1000Mbps POE++ PSE port |
|
|
LED indicators |
Power Indicator: PWR(green). Network Indicator: Link(green). PoE Working Indicator: PoE(green) |
|
|
Switch Architecture |
Store and Forward |
|
|
Transmission model |
IEEE802.3X full-duplex and Backpressure half-duplex |
|
|
Switch Performance |
Backplane bandwidth |
24Gbps |
|
Packet forwarding rate |
17.86Mpps |
|
|
MAC address |
8k |
|
|
Power requirement |
AC100-240V 50/60Hz |
|
|
ESD Protection |
6KV ESD |
|
|
Dimension(W×D×H) |
330mm x 220mm x 44.5mm(12.99in x 8.66in x 1.75in) |
|
|
Weight |
3.5Kg |
|
|
Power over Ethernet (PoE) Specifications |
||
|
Network standard |
IEEE802.3i 10 BASE-T IEEE802.3u 100 BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE802.3x Flow Control IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet IEEE802.3bt Power over Ethernet（1-4 port） IEEE802.3az EEE |
|
|
PoE Standard |
IEEE 802.3af/at Power over Ethernet/PSE IEEE 802.3bt Power over Ethernet Plus/PSE |
|
|
PoE Supply Type |
12/45(+), 36/78(-) |
|
|
PoE Power Output |
Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) Per Port 52V DC, 1200mA. max. 60 watts (IEEE 802.3bt) (1—4 Ports) |
|
|
PoE Power budget |
300W |
|
|
Environment |
||
|
Safety |
FCC Part15 Class A,CE.RoHs |
|
|
Environment specification |
Operating temperature: -20℃~55℃，operating humidity: 5％~95％ |
|
|
Storage temperature: -20℃~75℃，storage humidity: 5％~95％ |
||
