Description

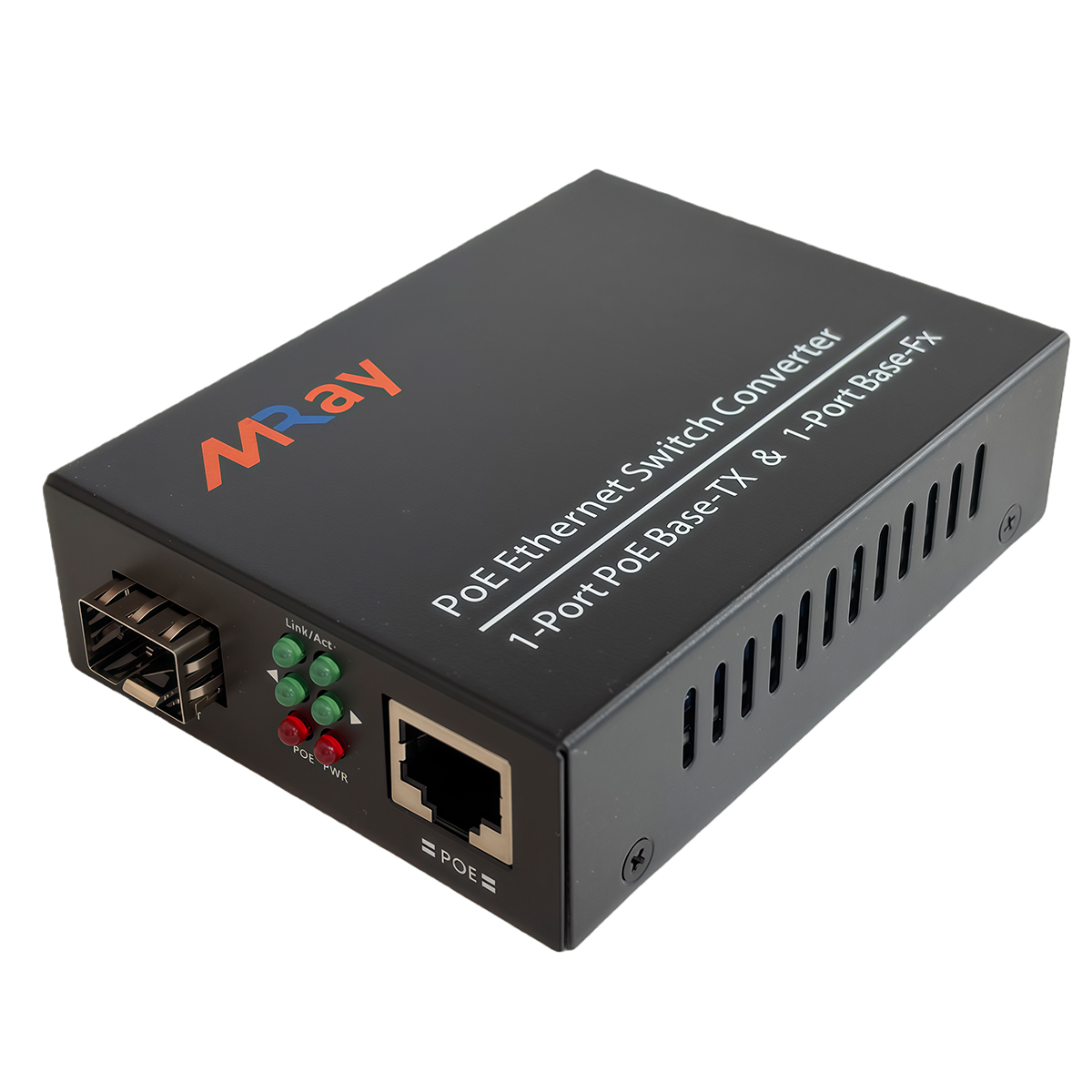

Name: 10/100/1000Base-TX RJ45 to 1000Base-FX SFP Fiber PoE Media Converter
Brand: Miray
SKU: MR-P1001-SFP

Miray MR-P1001-SFP PoE Fiber Media converter with external power supply are designed to transmit and receive 10/100/1000Mbps data over SFP optical fiber port. It Includes 1x10/100/1000Mbps PoE Ports and 1x100/1000Mbps SFP port. The products support IEEE802.3af/at power supply standard, maximum output power Up to 25.5 Watts for POE, Plug and Play, no need to convert by software and network protocol,Easy installation and use.Adopt No fan, low power design. Meet the needs of the site and provide a reliable and convenient solution for the network of Ethernet devices for users.The product apply with FCC and CE standards.

Gigabit PoE Fiber Conversion for Stable Edge Connectivity
This 10/100/1000Base-TX RJ45 to 1000Base-FX SFP Fiber PoE Media Converter is designed for professional network deployments that need both data extension and power delivery in one compact unit. It combines one 10/100/1000Mbps PoE copper port with one 100/1000Mbps SFP fiber uplink, making it a practical choice for extending Ethernet to remote endpoints over fiber while powering connected devices through the same RJ45 interface. For buyers comparing solutions from industrial ethernet switch manufacturers or evaluating when a full poe switch is not necessary, this model offers a focused and cost-aware option for surveillance nodes, distributed access points, and edge links where stable transmission and simpler topology are important.

Standards-Based Performance with Flexible SFP Integration
The converter supports 10/100/1000Mbps data transmission, IEEE 802.3af/at PoE standards, auto MDI/MDIX, and up to 25.5W PoE output, helping integrators deploy powered IP devices without adding separate local power equipment. Plug-and-play operation removes unnecessary setup complexity, while the fanless and low-power design supports dependable use in environments where low maintenance and steady operation are priorities. Its 100/1000Mbps SFP port allows teams to pair the device with the appropriate sfp module for required distance and fiber type, giving more sourcing flexibility for projects aligned with selected optical transceiver manufacturers. FCC and CE compliance also supports procurement review where safety, interoperability, and documented conformity are part of the evaluation process.

Well-Suited for Surveillance, Campus, and Industrial Network Extensions
With plug-and-play operation, external power supply, fanless construction, and low-heat design, this model is a practical choice for projects that prioritize uptime, simplified installation, and reduced maintenance overhead. It fits applications where a full poe switch is unnecessary but powered fiber extension is required at the edge, such as remote camera poles, factory links, warehouse access points, gate control systems, and building-to-building connections. For resellers, contractors, and infrastructure teams evaluating dependable media conversion across mixed copper-fiber topologies, it offers a stable deployment option that supports FCC and CE standards and aligns with the operational needs commonly seen across enterprise, industrial, and security network builds.

Key Advantages

Stable Gigabit Conversion with PoE Integration
This media converter combines one 10/100/1000Base-T RJ45 PoE port with one 100/1000Base-FX SFP slot, allowing a single device to handle copper-to-fiber transmission and powered Ethernet delivery at the same time. For system integrators, maintenance teams, and buyers comparing ethernet switch, poe switch, and transceiver options, this structure reduces extra hardware links and helps keep deployment more organized. Support for IEEE 802.3af/at, auto MDI/MDIX, and 10/100/1000Mbps half/full duplex operation makes it well-suited for mixed network environments where device types and link speeds may vary.

Reliable Operation for Long-Distance Network Extension
The fanless, low-heat design supports stable long-term operation and lowers the risk associated with dust intake and mechanical wear, which is important in industrial cabinets, corridor boxes, and remote network points. With multimode transmission up to 0.55 km and singlemode transmission up to 120 km through a compatible sfp module, this unit provides practical flexibility for projects that need distance extension without changing core Ethernet architecture. For buyers evaluating offers from industrial ethernet switch manufacturers, optical transceiver manufacturers, and top network switch manufacturers, this helps simplify maintenance planning and supports reliable fiber uplink design.

Use Scenarios

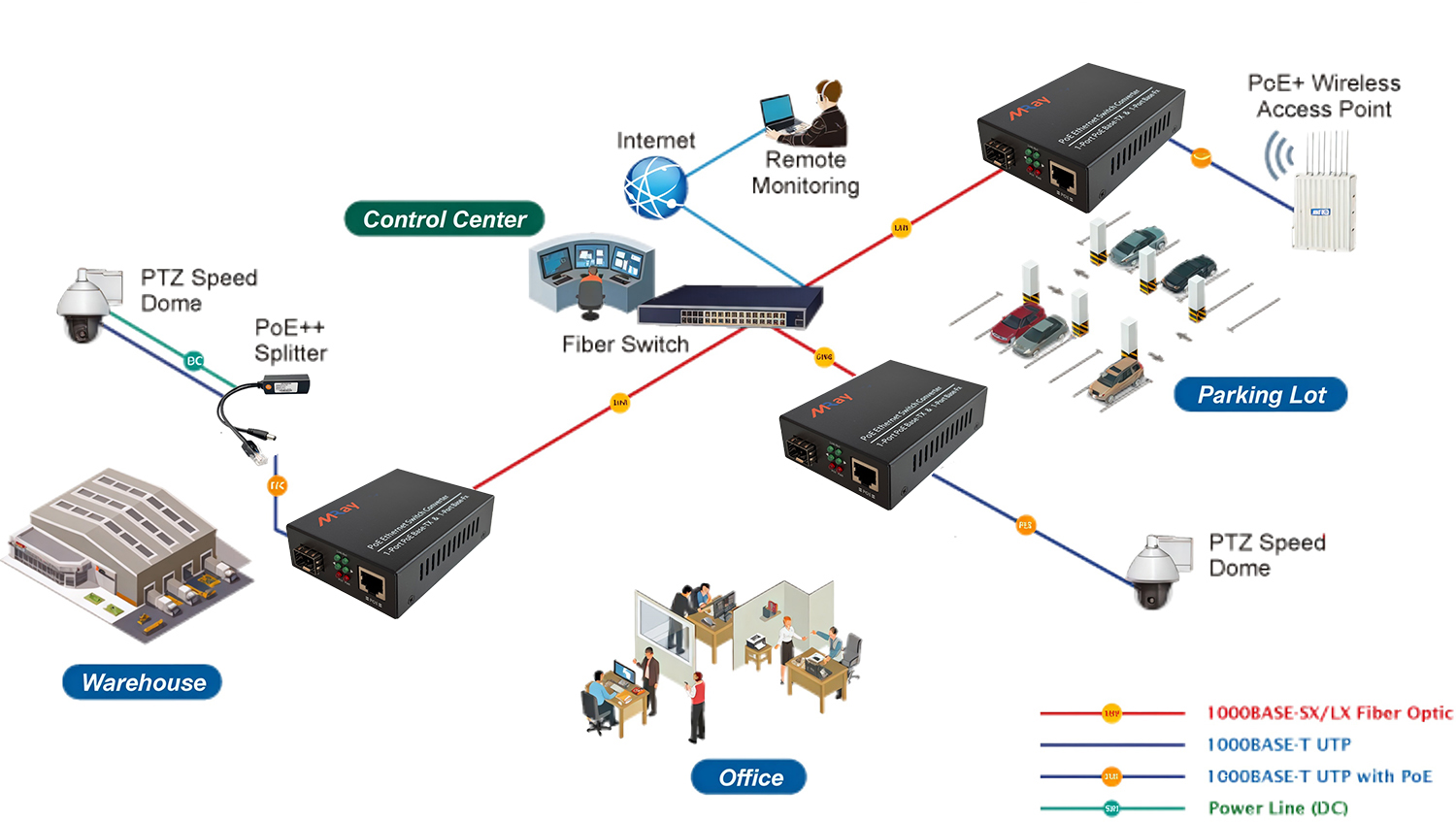

Remote IP Camera and Security Access Point Deployment
In a factory yard, warehouse perimeter, or transport platform, installers often need to connect an IP camera or wireless access point far from the main control room while still providing network access and power through one cable. This converter fits that need by supplying PoE on the RJ45 side and extending data over fiber through the SFP uplink, which helps overcome copper distance limits and improve link stability in electrically noisy environments. It is well-suited for security and monitoring projects that require practical installation, stable transmission, and simpler fault isolation at remote points.

Industrial Cabinet and Building-to-Building Fiber Links
In production workshops, utility rooms, and campus sub-buildings, network teams may need to connect edge devices to a central network switch while dealing with long cable runs, different port types, and the need for dependable uptime. This converter acts as a compact bridge between copper Ethernet equipment and fiber backbone infrastructure, making it easier to integrate field devices without replacing existing terminal hardware. Because it supports standard Ethernet protocols, flexible SFP-based fiber selection, and a fanless structure, it is a practical choice for structured deployments that value compatibility, maintenance convenience, and stable operation.

FAQ

Q1. Can this media converter connect to our existing copper Ethernet and fiber uplink infrastructure?
Yes, we support mixed-network deployment. This unit combines 1 x 10/100/1000Base-T RJ45 PoE port with 1 x 100/1000Base-FX SFP port, making it well-suited for integration with an existing network switch, ethernet switch, and standard fiber links.

Q2. Does the RJ45 port support PoE devices such as IP cameras or wireless access points?
The unit operates under IEEE802.3af/at PoE standards with output power up to 25.5W. We provide power through the RJ45 interface using 1/2+, 3/6- by default, with 4/5+, 7/8- as an option, so our converter is practical for many powered edge devices.

Q3. What SFP options and transmission distances are supported for fiber deployment?
Our SFP port supports 100/1000Mbps operation, so you can select a suitable sfp module for the link design. Transmission distance reaches up to 0.55 km on multimode fiber and up to 120 km on singlemode fiber, depending on the optical configuration.

Q4. How complex is installation for engineering teams and field deployment?
Installation typically requires only power, copper Ethernet, and the fiber connection. No software conversion or protocol conversion is needed, and our converter supports plug-and-play operation, auto MDI/MDIX, plus 10/100/1000Mbps half- and full-duplex modes for efficient commissioning.

Q5. What design and compliance details are relevant for long-term operation and procurement review?
Standard compliance includes FCC and CE. Our fanless design reduces heat generation and supports stable operation over time, which is useful when comparing suppliers such as industrial ethernet switch manufacturers or optical transceiver manufacturers for practical infrastructure projects.

Standard	IEEE802.3i 10BASE-T
	IEEE802.3u 100BASE-TX
	IEEE802.3z 1000BASE-TX
	IEEE802.3x Flow Control
	IEEE802.3af Power over Ethernet
PoE power	15.4W per port (IEEE802.3af) 25.5W per port (IEEE802.3at)
	Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5(+) and 7/8(-)
	Cable: UTP cat.5 or higher
Fiber type	Multi mode(MM): 62.5/125m.50/125m
Fiber type	Single mode(SM): 9/125m
Distance	Multi mode & Dual Fiber 550M
Distance	Single mode & Single Fiber:20/40/60/80/120KM
Data rate	10/100/1000Mpbs
Connector	1 RJ45 +1 SC/FC/ST/LC(SFP Slot)
Wavelength	1310nm 1490nm 1550nm
Diagnostic LED	Power Link/Activity
Power	DC52V/0.7A/36W
Power Consumption	<8w
Temperature	0~50℃(Operating) -20~70℃(Storage)
Humidity	5%~90%
Dimension	90x70x26mm
