1-Channel Multi-Port Design
Provides 1RJ45 ports for simultaneous connection of 1 LED control signal, meeting the needs of large-scale multi-screen linkage and partition control, while significantly reducing cabling and equipment count.
Single Fiber Ports
Supports redundant backup or dual-link transmission, with WDM technology enabling bidirectional data transmission over a single fiber, saving fiber resources and reducing cabling costs.
Gigabit Auto-Negotiation
Supports 10/100/1000Mbps auto-negotiation, with RJ45 ports compatible with Fast/Gigabit LED control cards, eliminating the need for manual configuration.
Long-Distance Transmission.

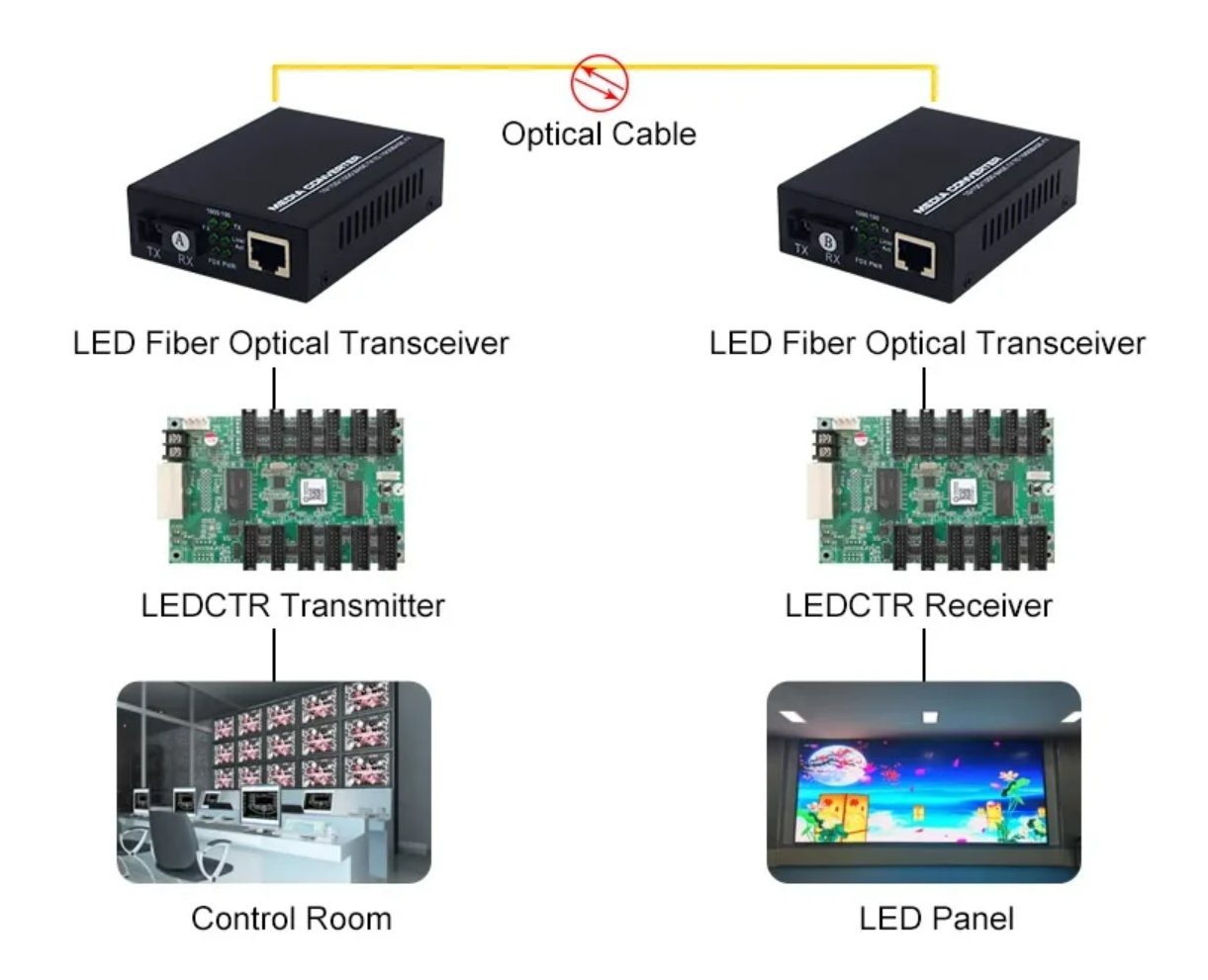

Single-mode fiber transmission distance up to 20km, meeting the interconnection requirements between large outdoor LED displays and remote control centers.

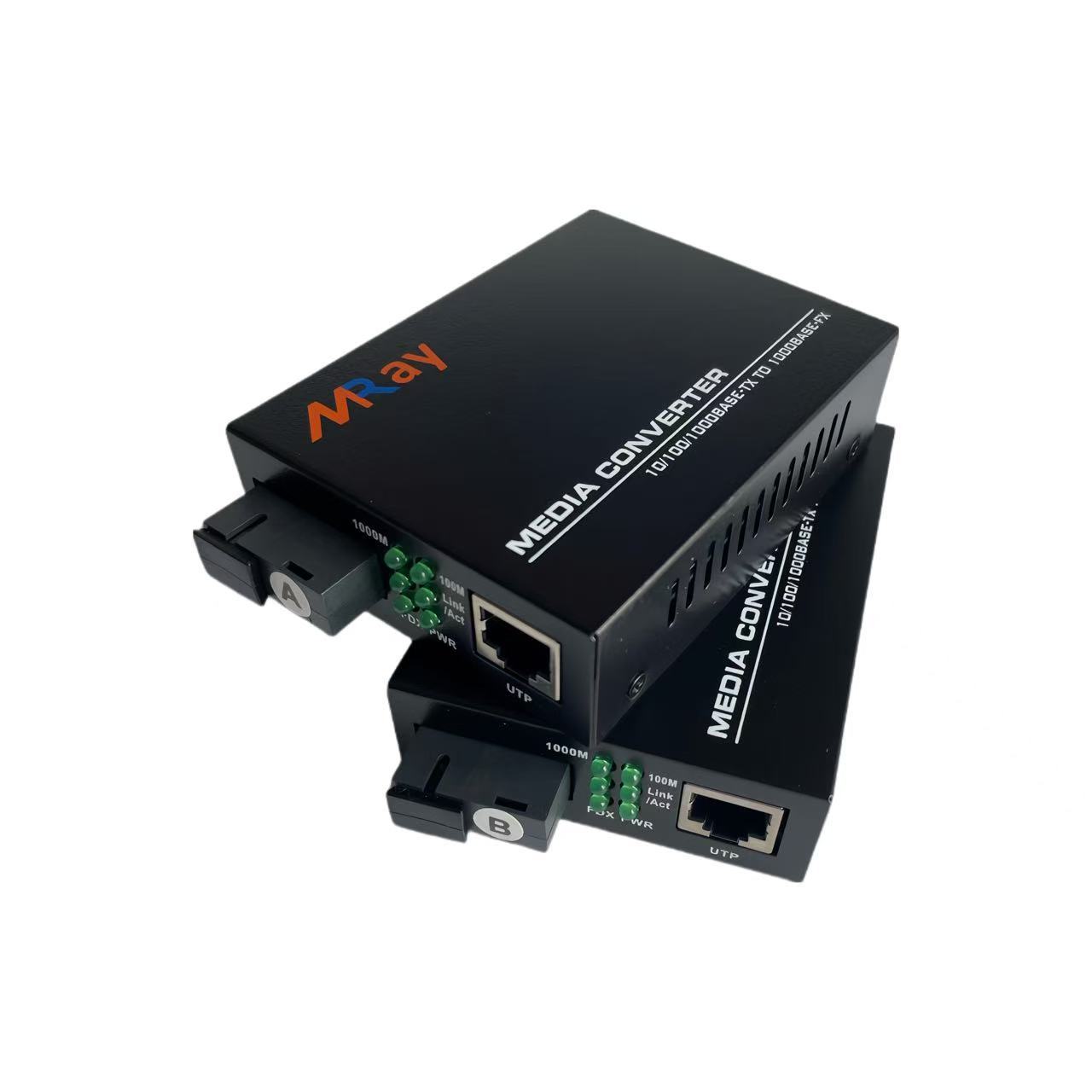

This 1-Channel LED Fiber Converter (MR-5700-1X-SC20A/B) is a multi-port photoelectric conversion device designed specifically for LED display systems. It enables long-distance transmission of 8 Ethernet channels over a single optical fiber, allowing simultaneous connection to multiple LED control cards or display units. It is widely used in multi-screen linkage scenarios such as large outdoor LED displays, stage backdrops, and commercial complexes.
| Parameter | Details |
|---|---|
| Model | MR-5700-1X-LC20A/B |
| Port Configuration | 1×RJ45 Ethernet ports + 1×SC single-fiber optical port (OPT) |
| Transmission Rate | 10/100/1000Mbps auto-negotiation |
| Fiber Type | Single-mode fiber (9/125μm) |
| Transmission Distance | 20km (single-fiber bidirectional) |
| Operating Wavelength | 1310nm/1550nm (WDM wavelength division multiplexing) |
| Power Input | DC 5V |
| Housing Material | Metal housing (excellent heat dissipation and anti-interference) |
| Compatibility | Fully compatible with major brands of LED control cards (e.g., Nova, Linsn, Colorlight) |
