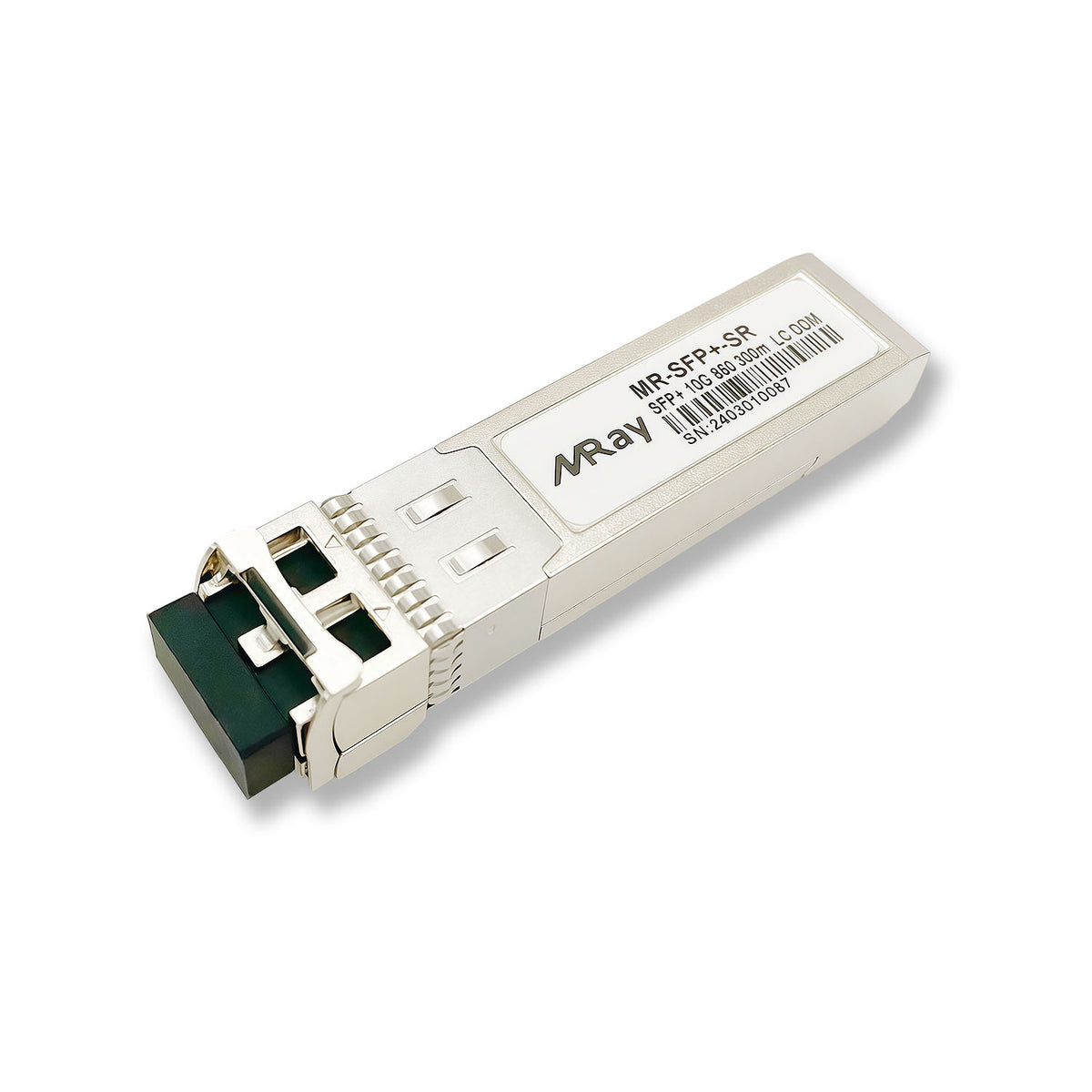

Standard 10G SFP+ SR Optical Transceiver | 850nm | Duplex LC | 300M | DDM
Product Overview
The Miray SFP-10G-SR is a compact 10Gb/s optical transceiver designed for short-reach applications. Utilizing an 850nm VCSEL transmitter and high-sensitivity PIN receiver, it provides superior performance for Ethernet applications at up to 300m links over multimode fiber (MMF).
Download DatasheetKey Features
- Supports 9.95 to 11.3Gb/s bit rates
- Hot-pluggable SFP+ footprint
- Duplex LC connector
- 850nm VCSEL transmitter, PIN photo-detector
- MMF links up to 300m
- 2-wire interface compliant with SFF-8472 DDM
- Power supply: +3.3V, power consumption < 1W
- Operating temperature: 0°C to 70°C
Typical Applications
- 10GBASE-SR/SW Ethernet
- SONET OC-192/SDH
- 10G Fibre Channel
Technical Specifications
| Parameter | Value |
|---|---|
| Form Factor | SFP+ |
| Data Rate | 10Gbps |
| Wavelength | 850nm |
| Distance | Up to 300m |
| Connector | Duplex LC |
| Fiber Type | MMF |
| Transmitter | VCSEL |
| DDM | Yes |
Compatibility
100% compatible with Cisco and other major brand switches and routers. Each module is fully tested before shipment.
