Standard 10G SFP+ ER Optical Transceiver | 1550nm | Duplex LC | 40KM | DDM
Product Overview

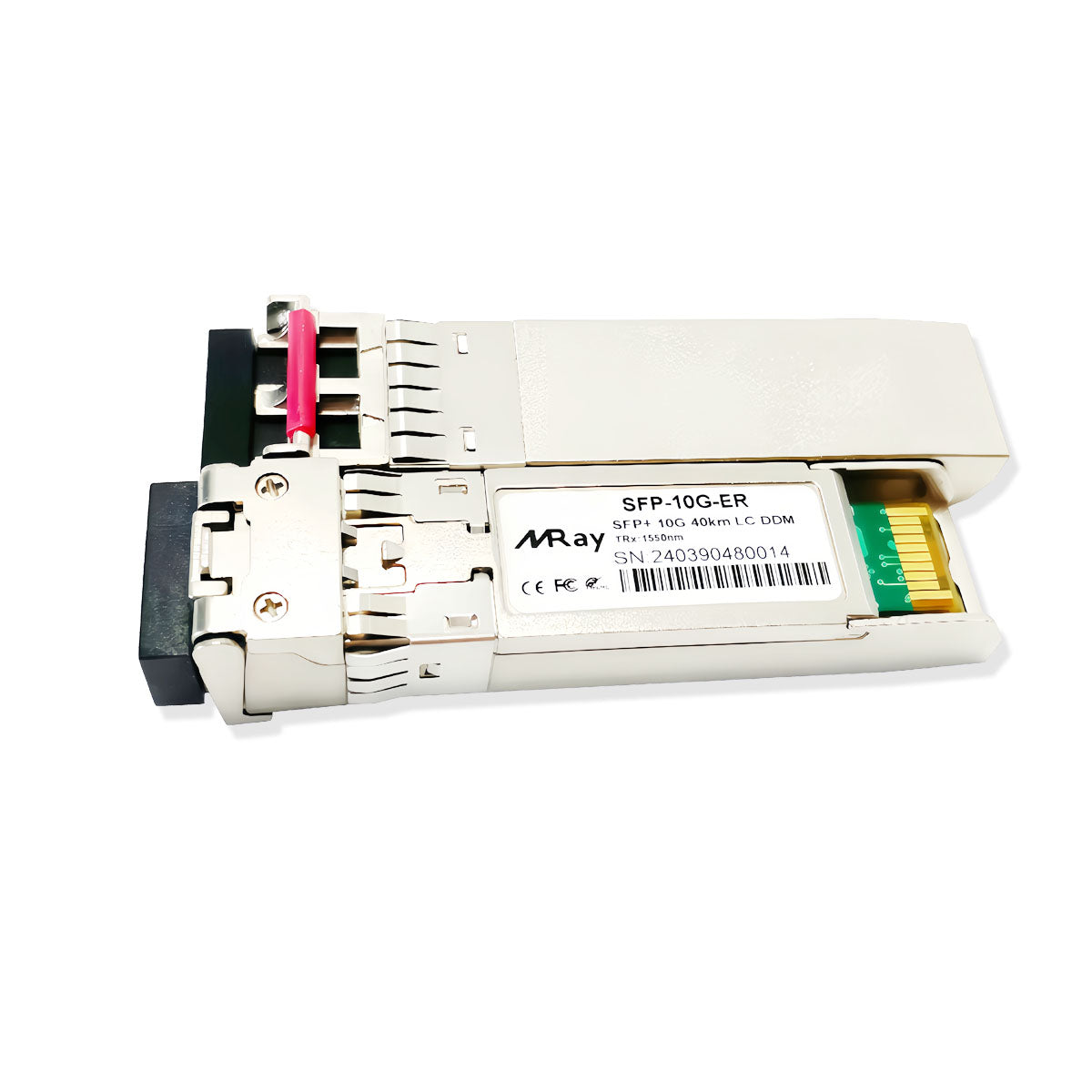

The Miray SFP-10G-ER55 is a compact 10Gb/s optical transceiver designed for long-reach applications. Utilizing a high-performance 1550nm cooled EML transmitter and high-sensitivity PIN receiver, it provides superior performance for Ethernet applications at up to 40km links over single-mode fiber.
Download DatasheetKey Features
- Supports 9.95 to 11.3Gb/s bit rates
- Hot-pluggable SFP+ footprint
- Duplex LC connector
- 1550nm cooled EML transmitter, PIN photo-detector
- SMF links up to 40km
- 2-wire interface compliant with SFF-8472 DDM
- Power supply: +3.3V, power consumption < 1.5W
- Operating temperature: 0°C to 70°C
Typical Applications
- 10GBASE-ER/EW Ethernet
- SONET OC-192/SDH
- 10G Fibre Channel
Technical Specifications
| Parameter | Value |
|---|---|
| Form Factor | SFP+ |
| Data Rate | 9.95 ~ 11.3 Gb/s |
| Wavelength | 1550nm |
| Distance | 40km |
| Connector | Duplex LC |
| Fiber Type | SMF |
| Transmitter | Cooled EML |
| DDM | Yes |
Compatibility
100% compatible with Cisco and other major brand switches and routers. Each module is fully tested before shipment.
