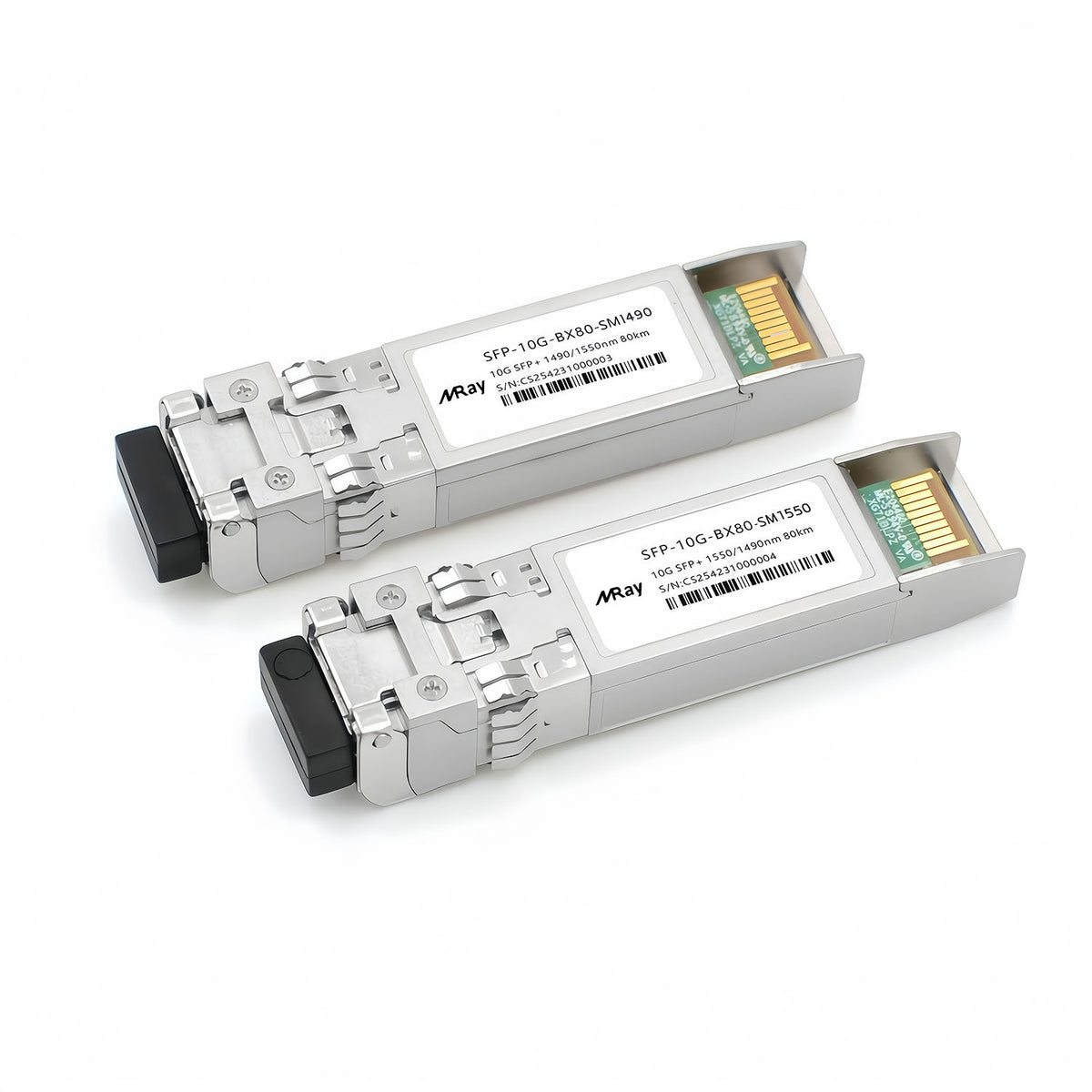

Standard 10G Bidi SFP+ Transceiver | Tx1550/Rx1490nm | Simplex LC | 80KM | DDM
Product Overview
The Miray 10G Bidi SFP+ transceiver is designed for ultra-long-reach, bi-directional transmission over a single strand of single-mode fiber (SMF). Operating at Tx 1550nm / Rx 1490nm with an EML laser and APD receiver, it provides reliable performance for 10G Ethernet applications up to 80 kilometers.
Note: This is a single module. BiDi transmission requires pairing with the opposite wavelength module (Pair A & Pair B).
Download DatasheetKey Features
- Supports 9.95Gb/s to 11.3Gb/s bit rates
- Hot-pluggable SFP+ footprint
- Single LC for Bi-directional Transmission
- Maximum link length of 80km over SMF
- EML transmitter, APD photo-detector
- Built-in digital diagnostic functions (DDM)
- Power dissipation < 1.8W
- Operating temperature: 0°C to 70°C
Typical Applications
- 10GBASE-LR/LW Ethernet
- SONET OC-192/SDH
- 10G Fibre Channel
Technical Specifications
| Parameter | Value |
|---|---|
| Form Factor | SFP+ |
| Data Rate | 9.95 ~ 11.3 Gb/s |
| Wavelength | Tx 1550nm / Rx 1490nm |
| Distance | 80km |
| Connector | Simplex LC |
| Fiber Type | SMF |
| DDM | Yes |
Compatibility
100% compatible with Cisco and other major brand switches and routers. Each module is fully tested before shipment.
