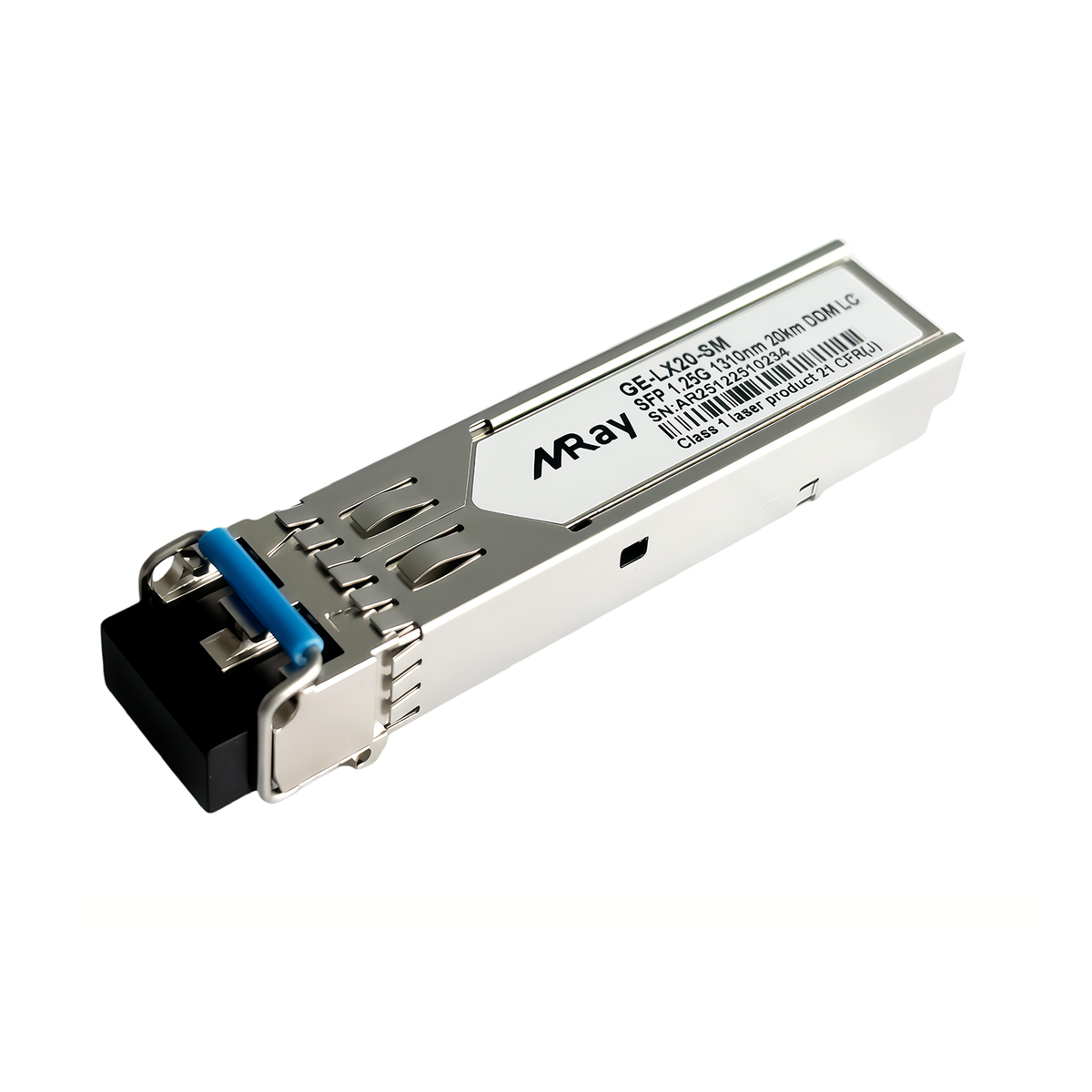

Standard 1.25G SFP LX Transceiver | 1310nm | Duplex LC | 20KM | DDM
Product Overview
The Miray GE-LX20-SM1310 is a high-performance, cost-effective 1.25Gb/s SFP transceiver. Operating at 1310nm over single-mode fiber (SMF), it provides a 15dB link budget, ensuring reliable Gigabit Ethernet applications up to 20 kilometers.
Download DatasheetKey Features
- Up to 1.25Gb/s Data Links
- Hot-pluggable SFP footprint
- Duplex LC connector
- 1310nm FP laser transmitter, PIN receiver
- Up to 20km on 9/125μm SMF
- Single +3.3V Power Supply
- Monitoring Interface Compliant with SFF-8472 (DDM)
- Maximum Power < 1W
- RoHS compliant and Lead Free
Typical Applications
- 1.25 Gb/s 1000Base-LX Ethernet
- 1x Fibre Channel
- Metro/Access Networks
Technical Specifications
| Parameter | Value |
|---|---|
| Form Factor | SFP |
| Data Rate | 1.25 Gb/s |
| Wavelength | 1310nm |
| Distance | Up to 20km |
| Connector | Duplex LC |
| Fiber Type | SMF |
| Transmitter | FP |
| DDM | Yes |
Compatibility
100% compatible with Cisco and other major brand switches and routers. Each module is fully tested before shipment.
