Standard 1.25G SFP EX Transceiver | 1310nm | Duplex LC | 40KM | DDM
Product Overview

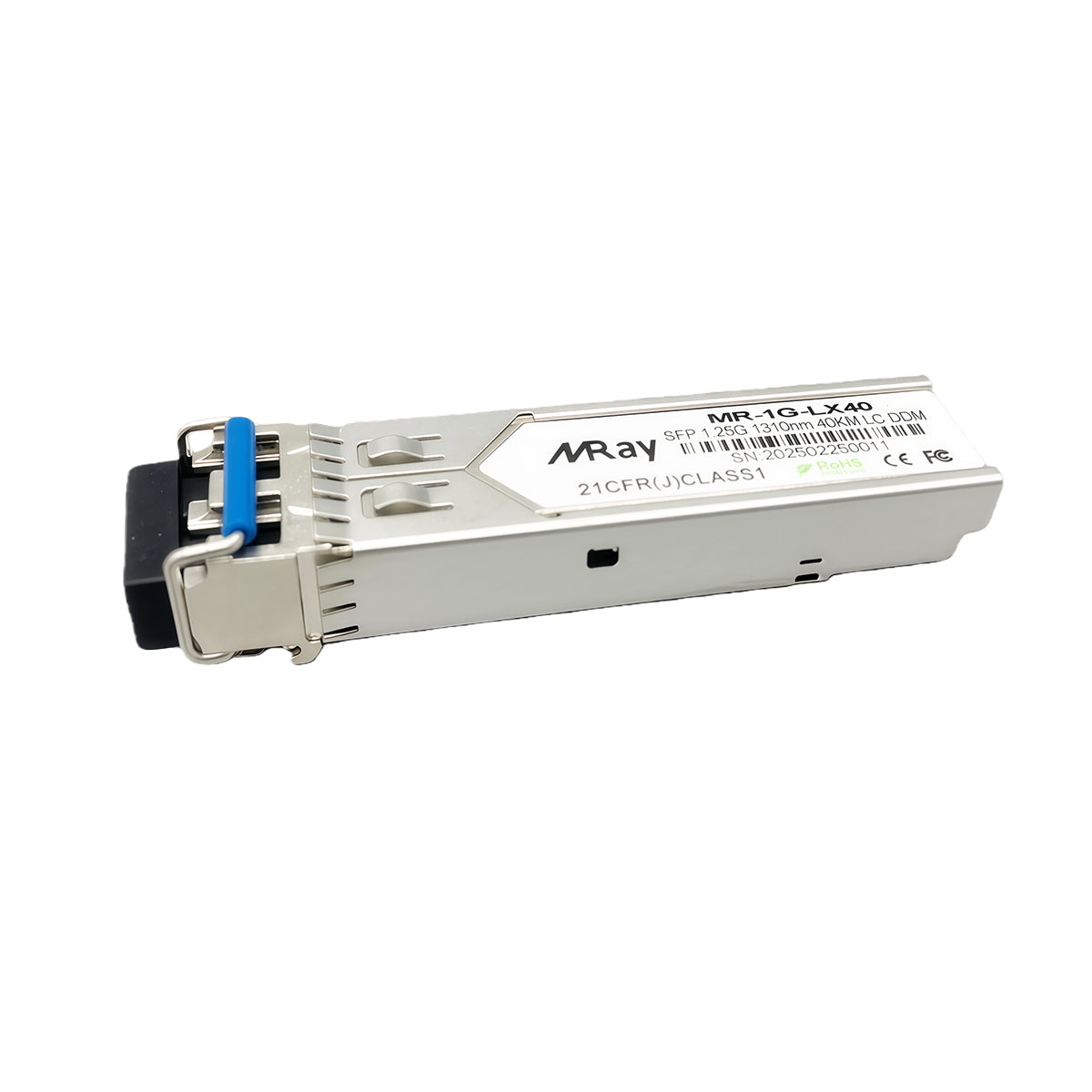

The Miray GE-LX40-SM1310 is a high-performance, cost-effective 1.25Gb/s SFP transceiver. Utilizing a 1310nm DFB laser and PIN receiver, it provides a 22dB link budget, ensuring reliable 1000Base-EX Ethernet applications up to 40 kilometers over single-mode fiber.
Download DatasheetKey Features
- Up to 1.25Gb/s Data Links
- Hot-pluggable SFP footprint
- Duplex LC connector
- 1310nm DFB laser transmitter, PIN receiver
- Up to 40km on 9/125μm SMF
- Single +3.3V Power Supply
- Monitoring Interface Compliant with SFF-8472 (DDM)
- Maximum Power < 1W
- RoHS compliant and Lead Free
Typical Applications
- 1.25 Gb/s 1000Base-EX Ethernet
- 1x Fibre Channel
- Metro/Access Networks
Technical Specifications
| Parameter | Value |
|---|---|
| Form Factor | SFP |
| Data Rate | 1.25 Gb/s |
| Wavelength | 1310nm |
| Distance | Up to 40km |
| Connector | Duplex LC |
| Fiber Type | SMF |
| Transmitter | DFB |
| DDM | Yes |
Compatibility
100% compatible with Cisco and other major brand switches and routers. Each module is fully tested before shipment.
