Description

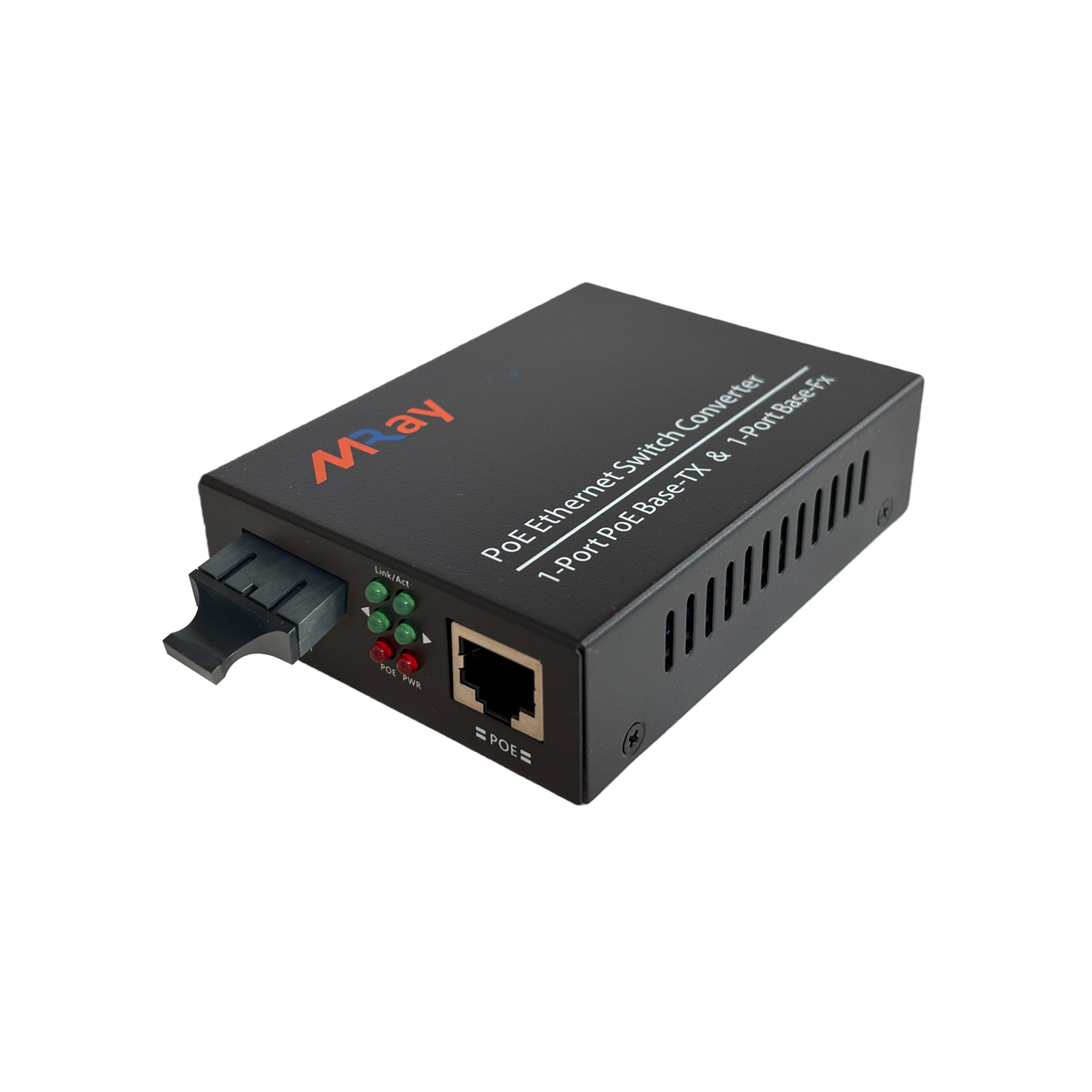

Name: 10/100/1000Mbps PoE Media Converter 10/100/1000Base-TX to 1000Base-FX Multimode Dual Fiber SC 850nm
Brand: Miray
SKU: MR-P1001M05
Rating: 5 (1 reviews)

Miray MR-P1001M02 PoE Fiber Media converter with external power supply are designed to transmit and receive 10/100/1000Mbps data over multimode optical fiber. It Includes 1x10/100/1000Mbps PoE Ports and 1x100/1000Mbps Fiber port. The products support IEEE802.3af/at power supply standard, maximum output power Up to 25.5 Watts for POE, Plug and Play, no need to convert by software and network protocol,Easy installation and use.Adopt No fan, low power design. Meet the needs of the site and provide a reliable and convenient solution for the network of Ethernet devices for users.The product apply with FCC and CE standards.

Gigabit PoE Fiber Extension for Stable Edge Connectivity
The 10/100/1000Mbps PoE Media Converter is built to connect copper Ethernet devices to multimode fiber while delivering power and data through a single RJ45 interface, making it a practical choice for structured network expansion. Designed for B-end deployments, it combines the role of an ethernet switch edge link and fiber uplink converter in one compact device, helping reduce cabling complexity for IP cameras, wireless APs, and other powered terminals. For buyers comparing solutions from top network switch manufacturers or evaluating complementary products from industrial ethernet switch manufacturers, this model offers a focused and cost-efficient way to extend Gigabit access over dual-fiber SC infrastructure without adding unnecessary system overhead.

Standards-Based Performance with PoE and Multimode Fiber Support
This unit supports IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3af, and 802.3at, covering 10/100/1000Base-T and 1000Base-FX transmission with half-duplex/full-duplex adaptation and AUTO-MDIX on the RJ45 port for direct or crossover cable recognition. It integrates 1 x 10/100/1000Mbps PoE port and 1 x 100/1000Mbps fiber port, with PoE output up to 25.5W and power pin assignment of 1/2+, 3/6- with optional 4/5+, 7/8-, giving installers the flexibility needed for common powered network devices. The multimode dual-fiber SC optical interface operates at 850nm with transmission distance up to 0.55km, while the fanless architecture, low heat design, and compliance with FCC and CE standards support long-term stable operation. For integrators sourcing around optical transceiver manufacturers, transceiver solutions, or related sfp module ecosystems, this converter provides a straightforward fixed-port fiber access option where SC multimode links are already standardized.

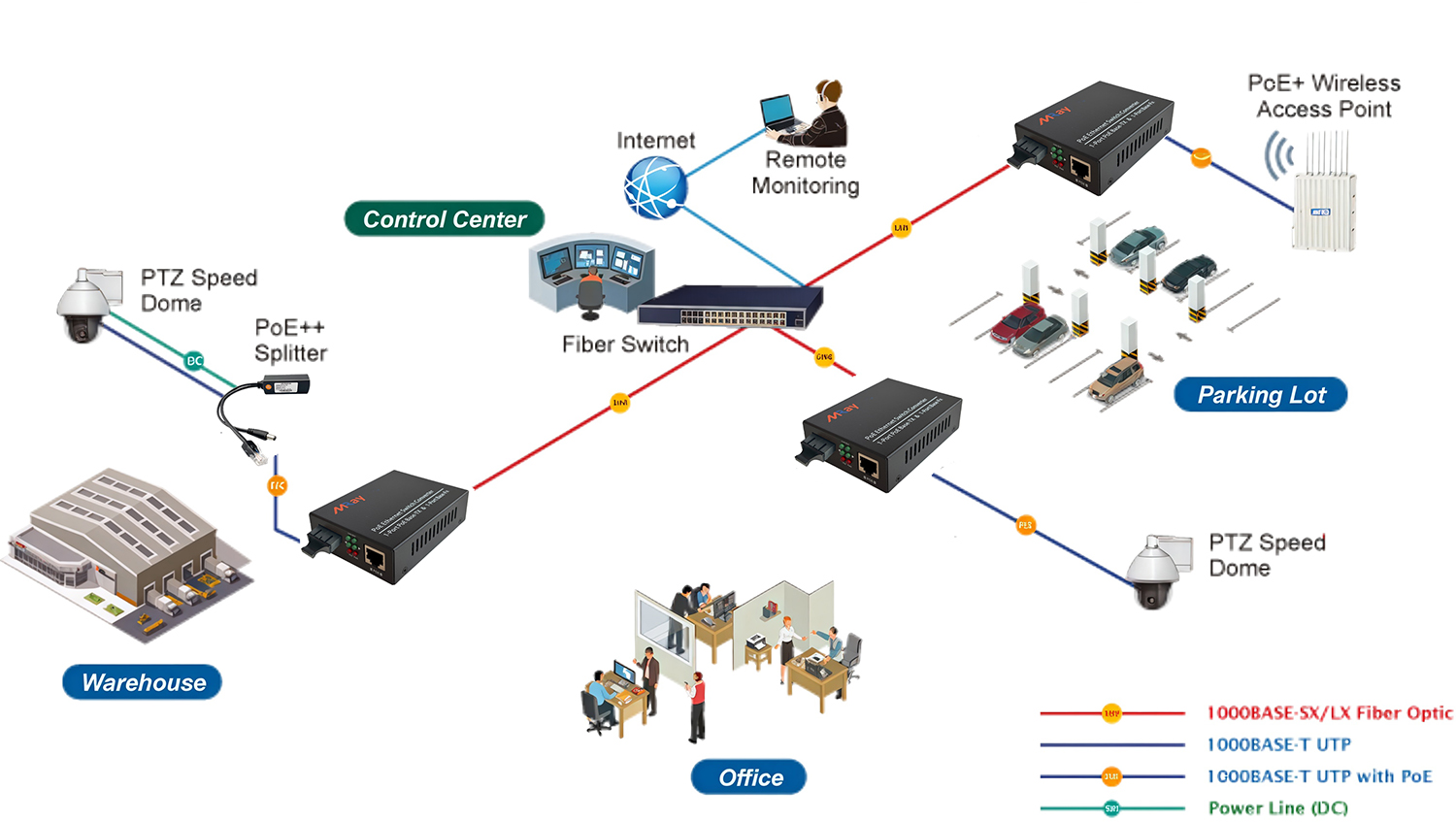

Well-Suited for Surveillance, Campus, and Industrial Access Networks
In real deployment scenarios, this media converter is well-suited for surveillance backhaul, enterprise branch links, campus building interconnection, and access-layer upgrades where powered edge devices must be connected over fiber without replacing the wider network switch environment. It can work alongside aggregation equipment, existing poe switch installations, and mixed copper-fiber topologies to extend service reach while maintaining practical installation and maintenance workflows. For project buyers, system integrators, and OEM/ODM procurement teams evaluating products across industrial ethernet switch manufacturers and optical transceiver manufacturers, this model delivers a reliable option for deploying Gigabit PoE endpoints in electrically noisy or distance-limited environments where multimode fiber remains the preferred transport medium.

Key Advantages

Stable Gigabit PoE Fiber Architecture
This media converter combines a 10/100/1000Base-T PoE copper port with a 1000Base-FX multimode dual fiber SC uplink, allowing one device to handle both data transmission and power delivery for IP cameras, wireless APs, and other PoE terminals. For B-end deployments, this structure reduces extra cabling and simplifies edge network design while keeping compatibility with mainstream ethernet switch, poe switch, and network switch environments. Support for IEEE 802.3af/at and auto MDI/MDIX also helps lower integration risk during installation and replacement, which is a practical advantage for projects that require consistent standards compliance and predictable deployment results.

Fanless Design for Reliable Operation
The fanless, low-heat design supports long-term stability in equipment rooms, corridor cabinets, factory sub-control points, and other sites where dust, vibration, and continuous operation can affect service life. Because the unit is plug and play and does not depend on software conversion or protocol changes, maintenance staff can complete deployment and troubleshooting faster, which reduces downtime and on-site handling complexity. For buyers comparing solutions from industrial ethernet switch manufacturers, optical transceiver manufacturers, and top network switch manufacturers, this product offers a practical balance of stable transmission, low maintenance demand, and straightforward operation.

Use Scenarios

IP Surveillance and Building Security Links
In office buildings, campuses, warehouses, and parking areas, security teams often need to connect PoE cameras over longer distances than copper cabling can support reliably. This converter acts as the link between the copper PoE endpoint and the multimode fiber backbone, delivering data and power at the access side while extending transmission up to 0.55 km over MM fiber. It is well-suited to surveillance scenarios because it helps keep camera deployment stable, reduces the need for separate power wiring, and works reliably with existing poe switch, transceiver, and core network switch infrastructure.

Industrial Edge Access and Fiber Backbone Integration
In factory workshops, utility rooms, and distributed control locations, users often need to connect Ethernet terminals at the edge to a central fiber network without adding complex configuration steps. This converter provides a practical role at that boundary by converting 10/100/1000Base-T signals to 1000Base-FX multimode fiber, making it easier to integrate controllers, access devices, or monitoring nodes into a stable backbone. It fits these environments because the fanless structure supports dependable operation, the standards-based design works with common sfp module and switching ecosystems, and the simple deployment process helps maintenance teams manage expansion and replacement efficiently.

FAQ

Q1. Can this media converter integrate with our existing Ethernet equipment and PoE devices?
Yes, we support deployment with standard Ethernet infrastructure. This unit works with IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3af, and 802.3at, making it well-suited for network switch, poe switch, and IP endpoint integration.

Q2. What fiber type and transmission distance does this model support?
The unit operates as a 10/100/1000Base-TX to 1000Base-FX multimode dual fiber converter with SC interface at 850nm. Our specified multimode transmission distance is up to 0.55 km maximum, which is practical for short-range fiber extension in enterprise networks.

Q3. Does the RJ45 port require manual crossover settings during installation?
No, the RJ45 port supports AUTO-MDIX, so we do not require manual direct or cross cable selection. Installation is typically straightforward because the converter also supports plug-and-play operation, reducing setup time when linking an ethernet switch to fiber.

Q4. What PoE performance can we expect from this converter?
Maximum PoE output reaches 25.5W under IEEE 802.3af/at standards. Our design includes power pin mapping of 1/2+, 3/6- with optional 4/5+, 7/8-, allowing stable power delivery for compatible devices while transmitting 10/100/1000Mbps data over the same copper link.

Q5. What design and compliance features are relevant for long-term operation?
The converter uses a fanless, low-power design intended for stable continuous service and reduced heat generation. Our product also complies with FCC and CE standards. For buyers evaluating top network switch manufacturers or optical transceiver manufacturers, this supports practical system qualification.

Standard	IEEE802.3i 10BASE-T
	IEEE802.3u 100BASE-TX
	IEEE802.3z 1000BASE-TX
	IEEE802.3x Flow Control
	IEEE802.3af Power over Ethernet
PoE power	15.4W per port (IEEE802.3af) 25.5W per port (IEEE802.3at)
	Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5(+) and 7/8(-)
	Cable: UTP cat.5 or higher
Fiber type	Multi mode(MM): 62.5/125m.50/125m
Fiber type	Single mode(SM): 9/125m
Distance	Multi mode & Dual Fiber 550M
Distance	Single mode & Single Fiber:20/40/60/80/120KM
Data rate	10/100/1000Mpbs
Connector	1 RJ45 +1 SC/FC/ST/LC(SFP Slot)
Wavelength	1310nm 1490nm 1550nm
Diagnostic LED	Power Link/Activity
Power	DC52V/0.7A/36W
Power Consumption	<8w
Temperature	0~50℃(Operating) -20~70℃(Storage)
Humidity	5%~90%
Dimension	90x70x26mm
